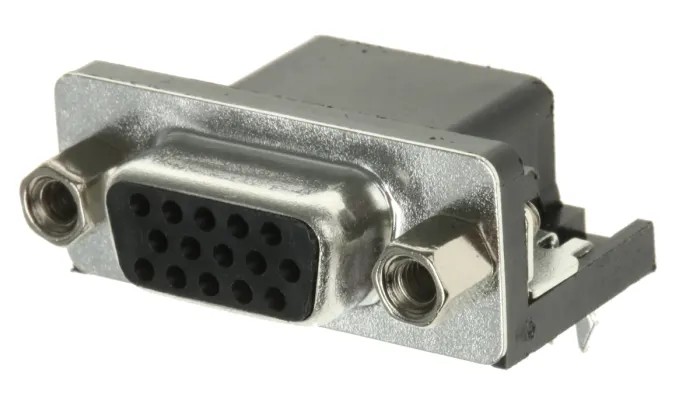

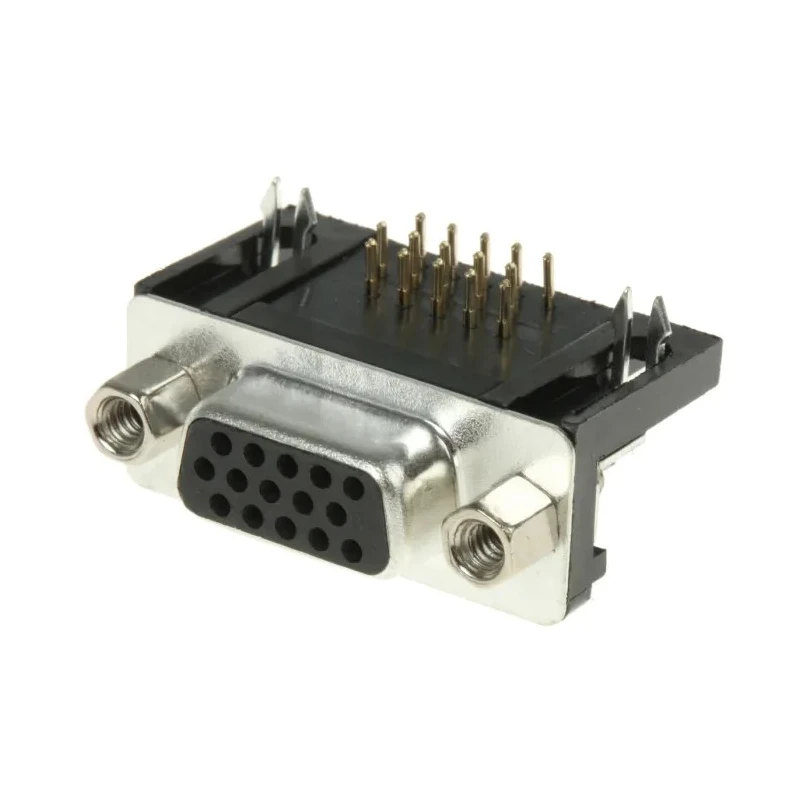

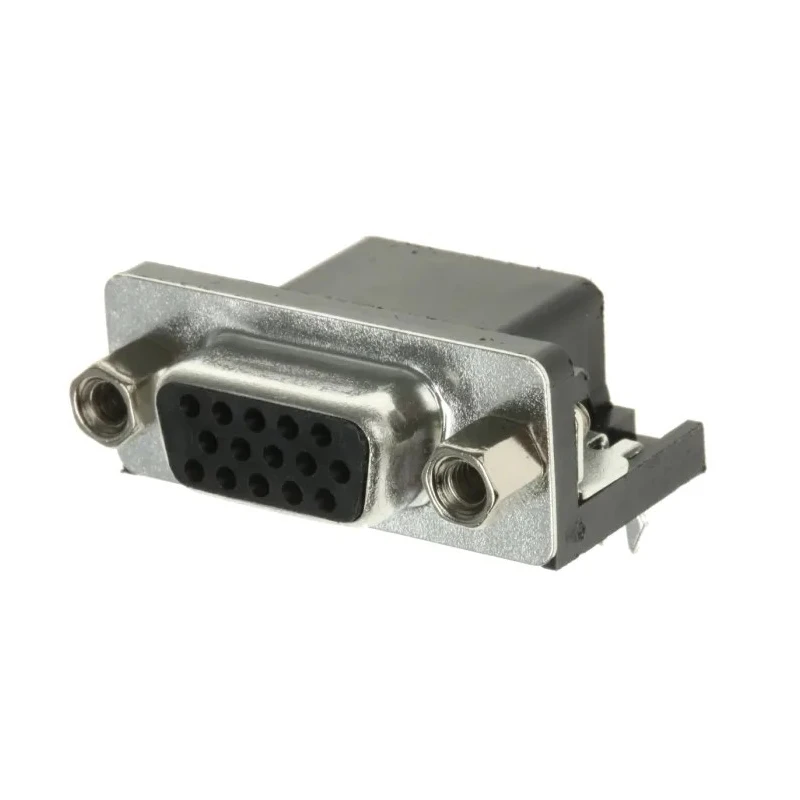

ASSMANN WSW A-HDF 15 Way Right Angle 1.98 mm Pitch Through Hole D-Sub Connector Female A-HDF 15 A-KG/T

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW A-HDF 15 Way Right Angle 1.98 mm Pitch Through Hole D-Sub Connector Female A-HDF 15 A-KG/T

Name: ASSMANN WSW A-HDF 15 Way Right Angle 1.98 mm Pitch Through Hole D-Sub Connector Female A-HDF 15 A-KG/T
Brand: ASSMANN WSW
SKU: 208264
Price: 1.25 USD
Availability: InStock



Category D-Sub Connector Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	ASSMANN WSW
Orientation	Right Angle
Current	3A
Model	A-HDF 15 A-KG/T
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	A-HDF
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	1.98mm
Contact Plating	Gold, Nickel
Number of Contacts	15
Contact Gender	Female
Connector Gender	Female
Connector Type D	D-Sub
D-Sub Shell Size	DF-15

Key Features

The housing is made of durable polybutylene terephthalate.
Features brass contacts plated with gold and nickel for reliable connectivity.
Designed to handle a current rating of 3A and voltage up to 250V.
Operating temperature ranges from -55°C to 105°C for versatile applications.
Connector gender and contact gender are female, well-suited for PCB mounting.
Compact DF-15 D-Sub shell size ensures compatibility with high-density PCB designs.
This connector offers high density and right angle orientation for space-saving installations.

Product Description

The ASSMANN WSW A-HDF 15 A-KG/T is a High Density D-Sub Connector designed for right angle, through hole PCB mounting applications. It features 15 contacts with a 1.98 mm pitch suitable for compact and high-performance electronic assemblies.

The housing is constructed from robust polybutylene terephthalate, offering excellent insulation and mechanical strength. Brass contacts are plated with gold and nickel to ensure reliable conductivity and corrosion resistance, making it suitable for demanding industrial and electronic environments.

Operating voltage is rated at 250V with a current rating of 3A, providing ample headroom for low to medium power signal and data transmission. Temperature tolerance ranges from -55°C to 105°C, supporting a wide range of operating environments from harsh industrial conditions to laboratory settings.

This connector’s female contact and connector gender configuration enables secure and reliable mating with complementary male connectors. The compact DF-15 shell size combined with a right angle orientation makes it ideal for space-constrained PCB layouts and ensures ease of assembly.

Applications include industrial automation, telecommunications, instrumentation, and computing devices requiring robust and precise interconnections. The housing material is polybutylene terephthalate for durability and insulation.

Brass contacts plated with gold and nickel guarantee long-lasting connectivity. The connector supports a current of 3A and voltage up to 250V. Pitch of 1.98 mm enables high density contact arrangement. Rated for operation between -55°C and 105°C for versatile use cases.

Right angle, through hole mount type for efficient PCB integration. Female connector and contact gender designed for secure mating. Manufactured in China, ensuring quality control.

This ASSMANN WSW D-Sub Connector is a reliable choice for industrial, laboratory, HVAC, manufacturing, telecommunications, and electronic equipment connectivity. It assists engineers and technicians in enhancing product performance through superior interconnect solutions.
