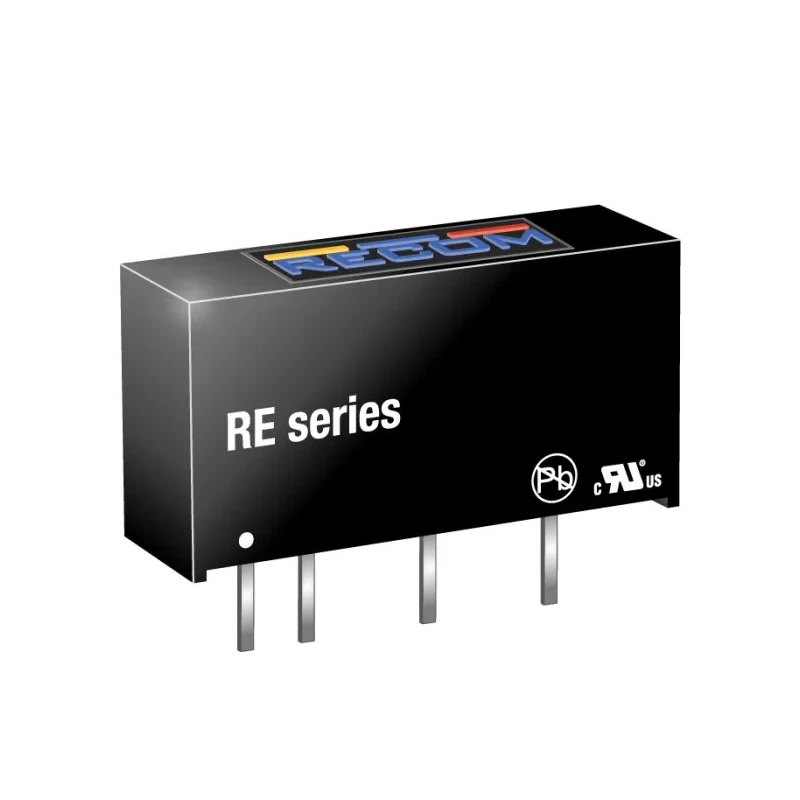

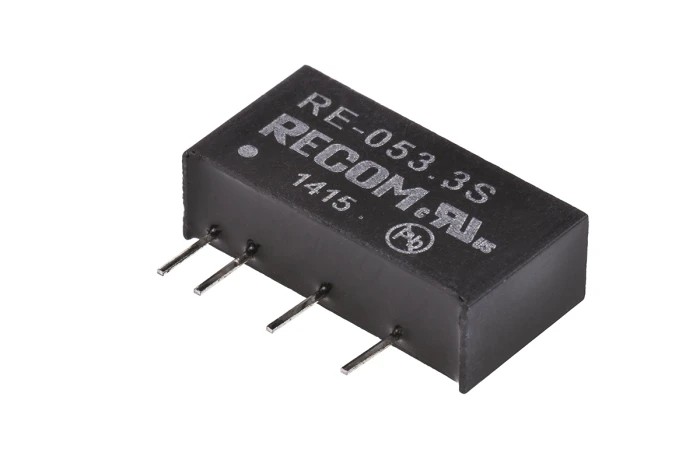

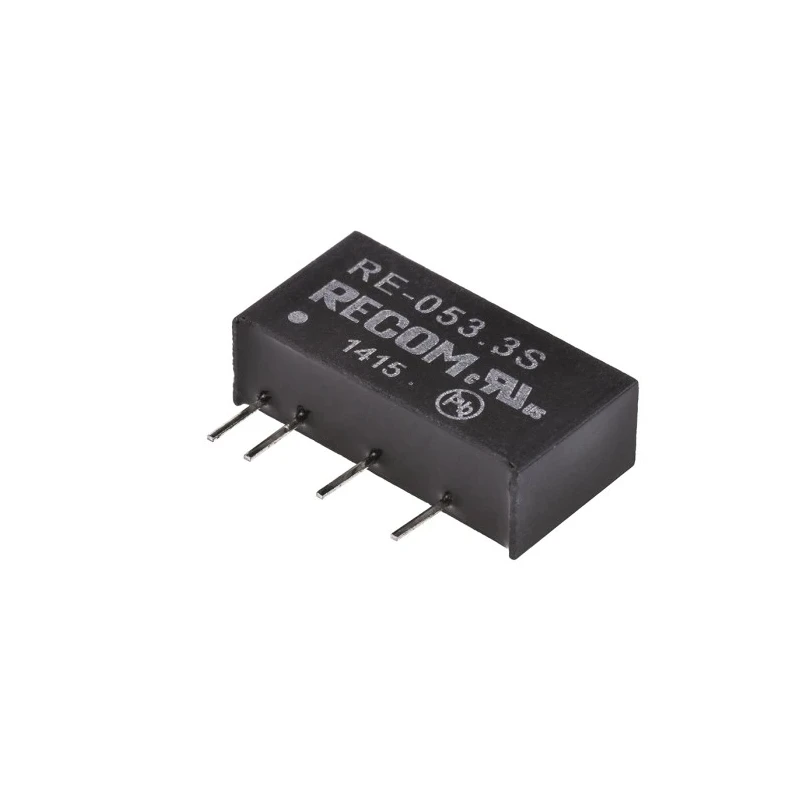

Recom DC/DC Converter SIP Package 3.3V DC Output 300 mA, 5V DC Input, 1W Power Through Hole Mount RE-053.3S

Recom RE-053.3S DC/DC Converter is a robust SIP package power supply module delivering a precise 3.3V DC output at 300 mA current, powered by an input voltage of 5V DC (operational range 4.5 to 5.5V). Designed for use in industrial, electronic, and transportation sectors, this converter ensures electrical isolation of 1kV DC, protecting sensitive components from voltage spikes and noise.

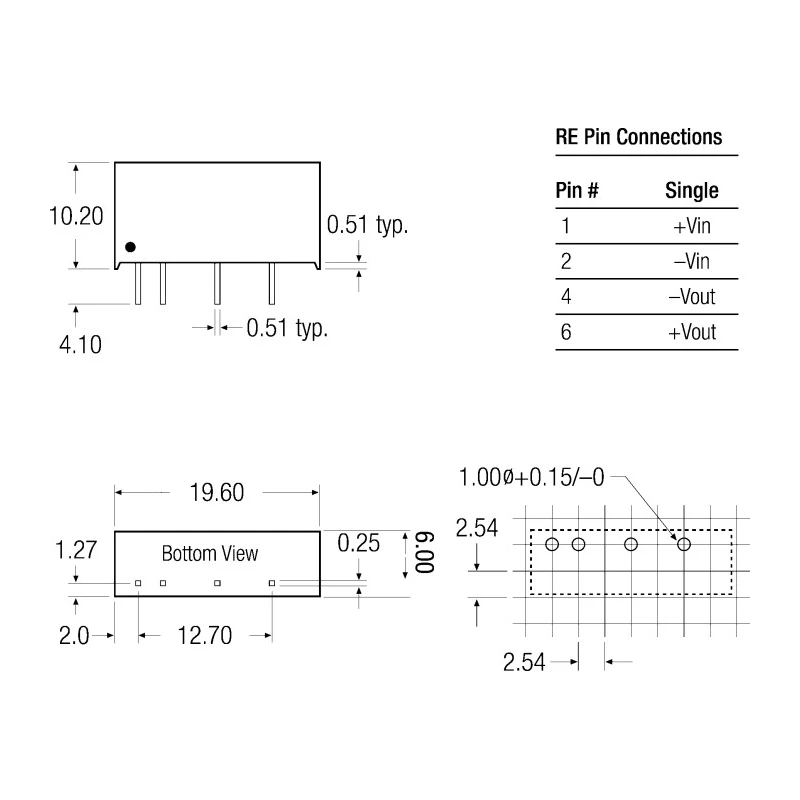

The module features through-hole mounting which secures the unit firmly on printed circuit boards, with a compact dimension of 19.6 mm length, 10.2 mm width, and depth 10.2 mm. Its lightweight construction at 2.2 grams minimizes mechanical load and system strain.

Operating reliably in extreme temperature conditions from -40°C to +85°C, the RE-053.3S is suitable for applications requiring high stability and durability. The 7-pin configuration adheres to industry standards, simplifying integration into a variety of electronic designs.

With a ripple and noise level of 100 mV peak-to-peak, this DC/DC converter effectively maintains signal quality suitable for sensitive electronic equipment. The converter complies with recognized international safety standards including CSA-C22.2 No. 60950-1, EN 60950, IEC, and UL 60950-1 certifications, ensuring trustworthy performance.

Its mean time between failures (MTBF) is rated at 145,000 hours, reflecting its dependable operation under continuous use. Compact SIP package with through-hole mount ensures secure installation. Operates efficiently between input voltage range 4.5V to 5.5V DC.

Provides high isolation voltage of 1kV DC for safety against electrical spikes. Supports operating temperature range from -40°C to +85°C for harsh environments. Lightweight design of 2.2 grams reduces system strain. Industry-standard pin-out with 7 pins allows easy integration in existing designs.

Low ripple and noise at 100 mV peak-to-peak ensures signal integrity. Meets CSA-C22.2 No. 60950-1, EN 60950, IEC and UL 60950-1 safety standards. MTBF of 145,000 hours guarantees reliable long-term operation.

This DC/DC converter is well suited for applications in transportation industry, mechanical workshops, and medical equipment requiring stable and isolated power supply solutions. Its compact size and rugged design make it ideal for use in densely populated electronic assemblies.

Explore our assortment of DC/DC Converters on EnvMart for efficient and reliable power supply components designed to meet your industrial and electronic needs.
