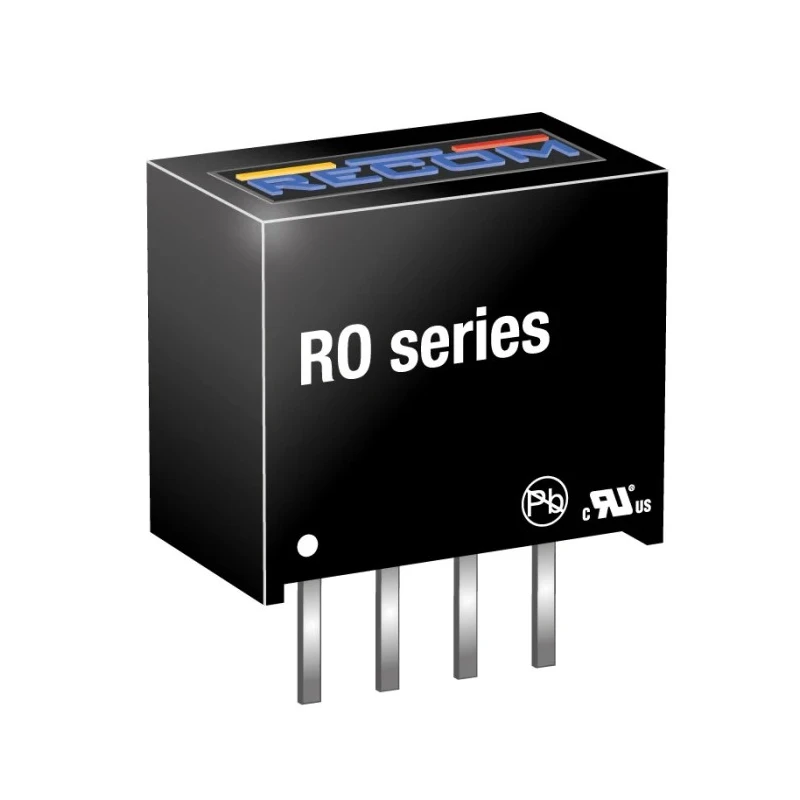

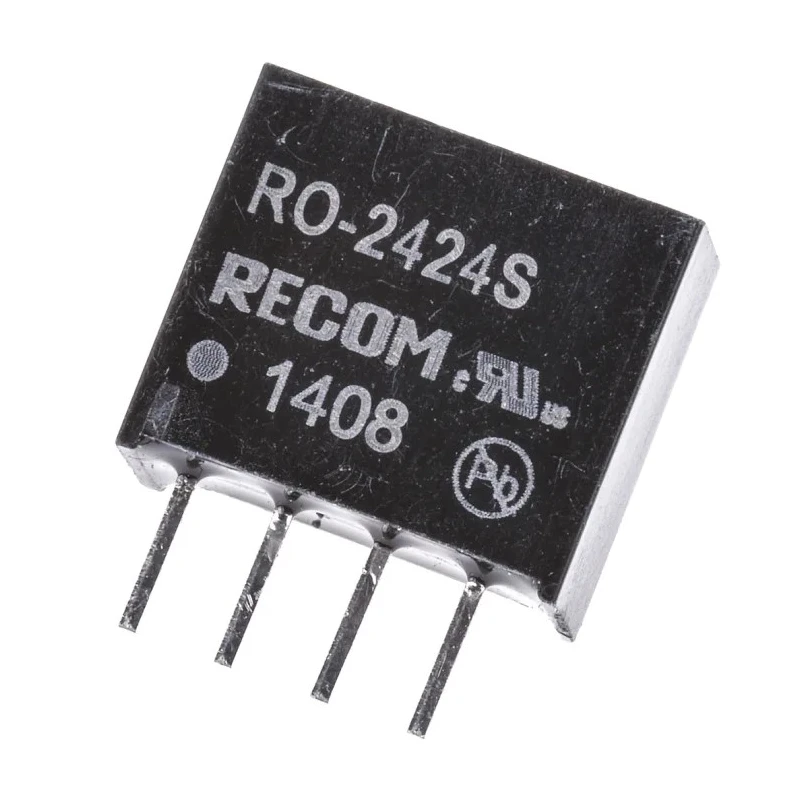

Recom DC/DC Converter 24V DC Input 42mA Output 1W Through Hole 6-Pin RO-2424S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RO DC/DC Converter, 24V dc/ 42 mA, 24V dc In |
| Brand | Recom |
| Efficiency | 85% |

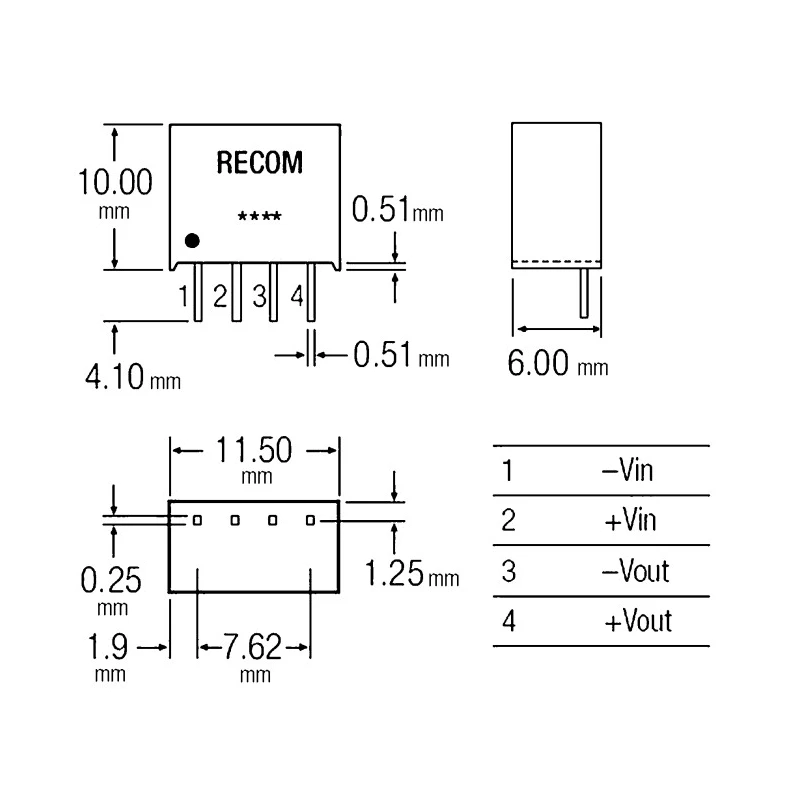

| Length | 11.5mm |
| Model | RO-2424S |
| Depth | 10mm |
| Gross Weight | 1.4g |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | RO |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 200000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 24V dc |
| Standards/Approvals | IEC, CSA, UL |
| Minimum Input Voltage | 0V |
| Number of Pins | 6 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 42mA |
| Output Voltage Adjustment Range | 0/24 V |
| Isolation Voltage | 1kV dc |
Key Features
- Compact dimensions measuring 11.5mm length, 6mm width, and 10mm depth for efficient PCB integration.
- Operates reliably across a wide temperature range from -40°C to 85°C.
- Features 1kV DC isolation voltage for enhanced circuit protection.
- Maintains an efficiency of approximately 85% for power conversion.
- Constructed with a robust SIP package type suitable for industrial applications.
- Designed for single output applications with stable output voltage adjustment from 0V to 24V.
- Equipped with 6 pins for secure through-hole mounting on PCB boards.
- Compliance with IEC, CSA, and UL standards ensures safety and quality.
Product Description
Recom RO-2424S DC/DC Converter is a fully encapsulated power converter designed to isolate and regulate power on circuit boards, accommodating an input voltage of 24V DC and delivering an output current of 42mA with 1W maximum power output. The converter's compact SIP package and through-hole mount configuration with 6 pins enable easy and reliable installation on densely packed circuit boards.
Its operational temperature tolerance from -40°C to 85°C permits use in harsh environments, making it suitable for industrial, laboratory, telecommunications, and consumer electronic applications. The device provides high isolation voltage of 1kV DC, helping to prevent damage from voltage spikes.
The RO-2424S model features 85% efficiency and complies with IEC, CSA, and UL standards, validating its safety and quality credentials. Additionally, its MTBF rating of 200,000 hours ensures dependable performance over extended periods.
Compact footprint measuring 11.5mm (L) x 6mm (W) x 10mm (H) fits well in space-constrained designs. Wide operating temperature range supports deployment in industrial and outdoor applications. Robust isolation voltage protects sensitive electronics from interference and surges.
High efficiency reduces heat generation and improves energy utilization. Standard compliant to facilitate certifications and system integration. Simple through-hole mounting enables strong mechanical and electrical connections.
Single output design tailored for typical power supply applications requiring regulated DC voltage. Black non-conductive plastic casing provides electrical insulation and minimizes energy loss. Applications include consumer electronics, telecom devices, and portable measurement instruments.
This DC/DC converter is an essential component for engineers and designers requiring reliable voltage conversion with small form factor and robust build quality. Browse EnvMart’s Electronics section for more Recom DC/DC Converters and related power supply solutions optimized for diverse industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for the Recom RO-2424S DC/DC converter is from 0V to 24V DC.
This model has a maximum output power of 1W.
The efficiency of the RO-2424S is approximately 85%.
The dimensions of this converter are 11.5mm in length, 6mm in width, and 10mm in depth.
It operates reliably across a temperature range from -40°C to 85°C.
This model is equipped with 6 pins for secure through-hole mounting.
The isolation voltage for this converter is 1kV DC, providing enhanced circuit protection.
It complies with IEC, CSA, and UL standards, ensuring safety and quality.
The output current of the RO-2424S is 42mA.
This unit is suitable for applications in industrial, laboratory, telecommunications, and consumer electronics.
The ripple and noise specification for this model is 100mV Pk-Pk.
This converter uses a through-hole mounting type, suitable for PCB integration.
