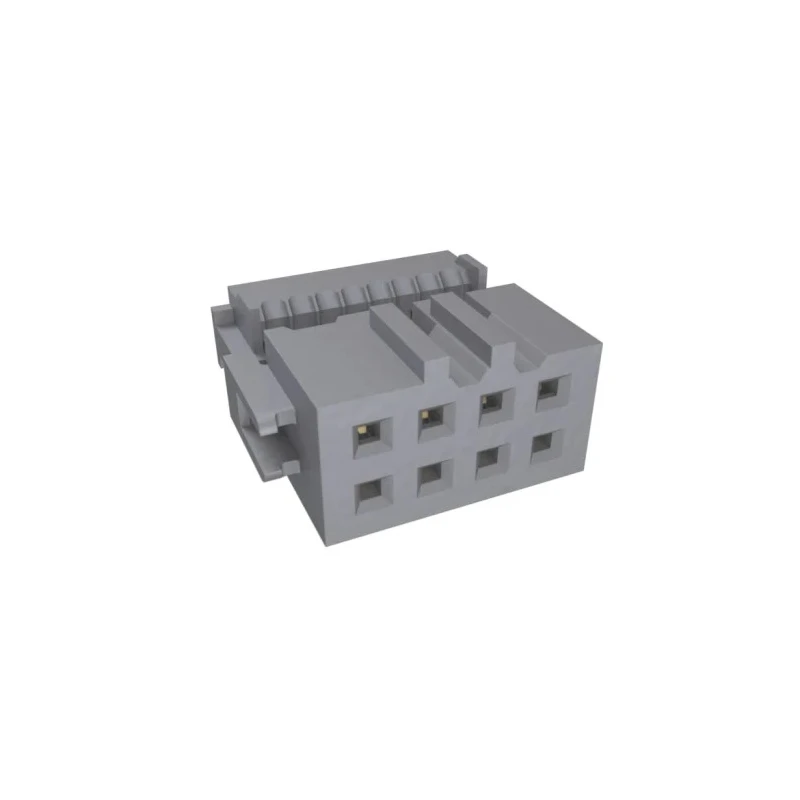

Amphenol Communications Solutions 8-Way 2-Row Shrouded IDC Female Connector for Cable 1000V ac 1A 2.54mm Pitch 71600-108LF

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Communications Solutions 8-Way 2-Row Shrouded IDC Female Connector for Cable 1000V ac 1A 2.54mm Pitch 71600-108LF

Name: Amphenol Communications Solutions 8-Way 2-Row Shrouded IDC Female Connector for Cable 1000V ac 1A 2.54mm Pitch 71600-108LF
Brand: Amphenol Communications Solutions
SKU: 208067
Price: 1.54 USD
Availability: InStock



Category IDC Connector Brand Amphenol Communications Solutions Condition New

Specifications

Country of Origin	India
Voltage	1000V ac
Brand	Amphenol Communications Solutions
Orientation	Straight
Current	1A
Model	71600-108LF
Mount Type	Cable
Housing Material	Glass Filled Thermoplastic
Contact Material	Phosphor Bronze
Series	Quickie
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	8
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded

Key Features

Features 8 contacts arranged in 2 rows with a 2.54mm pitch for precise connections.
Shrouded female connector providing reliable protection and accurate alignment.
Operates at a voltage of 1000V ac and current rating of 1A for moderate power requirements.
Contacts are gold-plated phosphor bronze ensuring excellent conductivity and corrosion resistance.
Constructed with glass filled thermoplastic housing for durability and thermal stability up to 105°C.
Includes adjustable bridge type cover to facilitate easy cable assembly.
Supports quick termination via IDC technology with long wiping action for consistent electrical contact.
Polarization slots and keying prevent mismating and ensure correct connector orientation.

Product Description

Amphenol Communications Solutions 71600-108LF is an 8-way, 2-row shrouded IDC female connector designed specifically for cable mounting. It operates at 1000V ac voltage and supports 1A current, making it ideal for a range of electronic applications requiring robust interconnection.

This connector features gold-plated phosphor bronze contacts that provide reliable conductivity and are designed for 100 mating cycles due to duplex plating. Its glass filled thermoplastic housing offers excellent mechanical strength and can withstand operating temperatures from -65°C to 105°C.

The connector employs an adjustable bridge type cover that facilitates simple and precise cable assembly. Its insulation displacement contact (IDC) terminals ensure quick cable termination with a long wiping action, which maintains consistent electrical performance over time.

Polarization slots and keying mechanisms built into the connector housing prevent mismating and ensure accurate alignment during assembly. This design makes the connector highly suitable for demanding environments in industrial, instrumentation, medical, consumer electronics, communications, and data transfer sectors.

These Quickie 2.54 mm IDC Connectors support flat flexible cables from 30 AWG to 26 AWG wire size. Part number 71600-108LF includes strain relief features and mates with specific shrouded latched headers as per series compatibility.

Features 8 contacts in 2 rows with a 2.54 mm pitch for consistent signal integrity. Shrouded female connector design improves safety and mechanical protection. Gold plating on contacts enhances durability and conductivity.

IDC termination provides fast and reliable cable connections without soldering. Operating temperature range from -65°C to 105°C suitable for varied environments. Polarization slots and keying prevent mismating during assembly processes.

Compatible across industrial, medical, and communication technologies. Explore the full range of Amphenol Communications Solutions connectors and IDC components available on EnvMart for reliable and quality electronic connections.
