Recom Switching Regulator Through Hole 3.3V DC Output Voltage 1A Output Current 3.3W Power R-783.3-1.0

Free Delivery in India | Lowest Global Shipping Charges

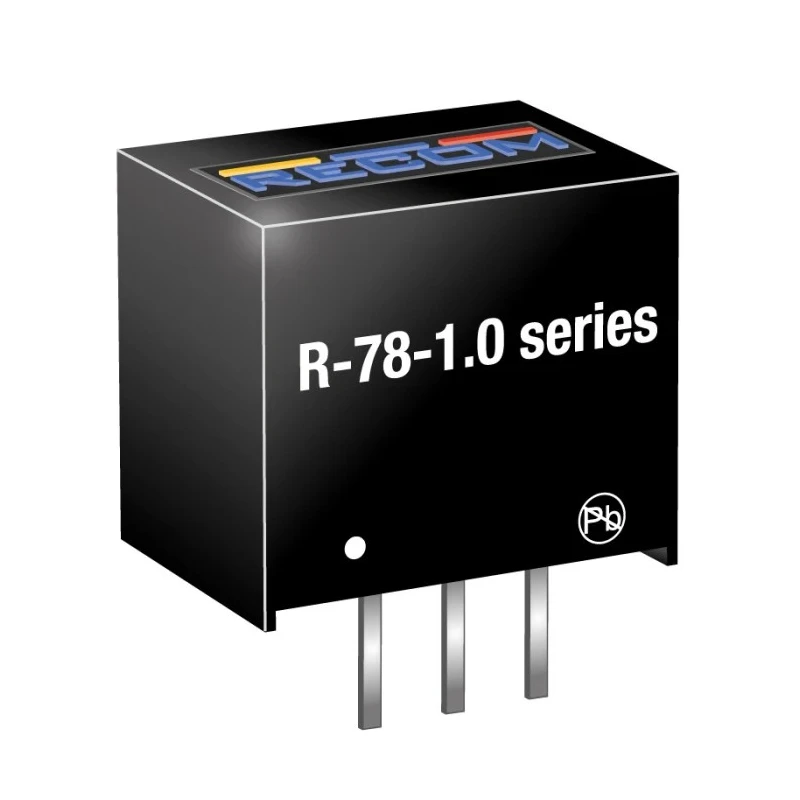

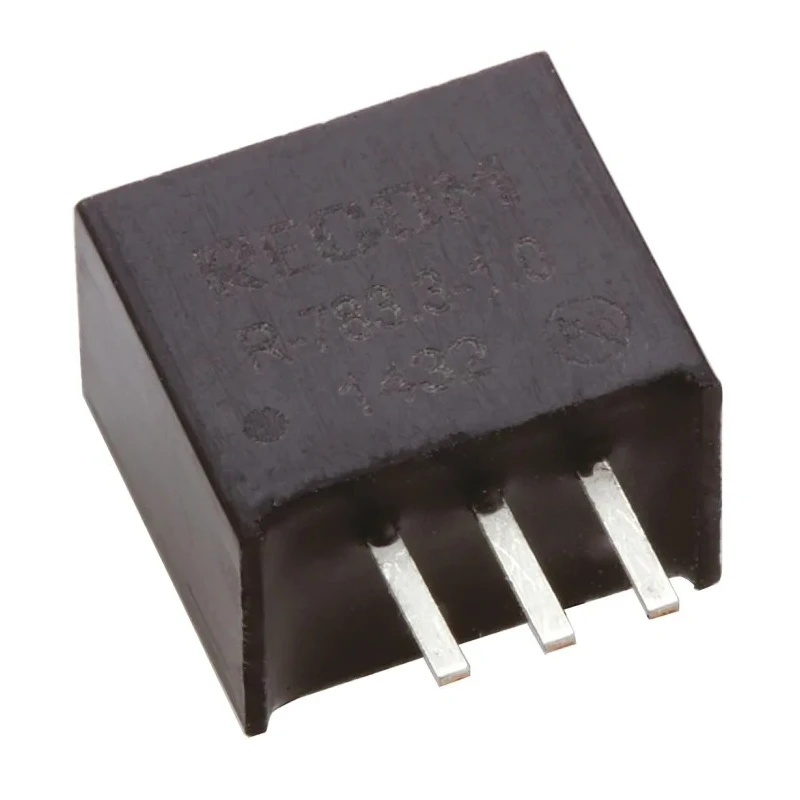

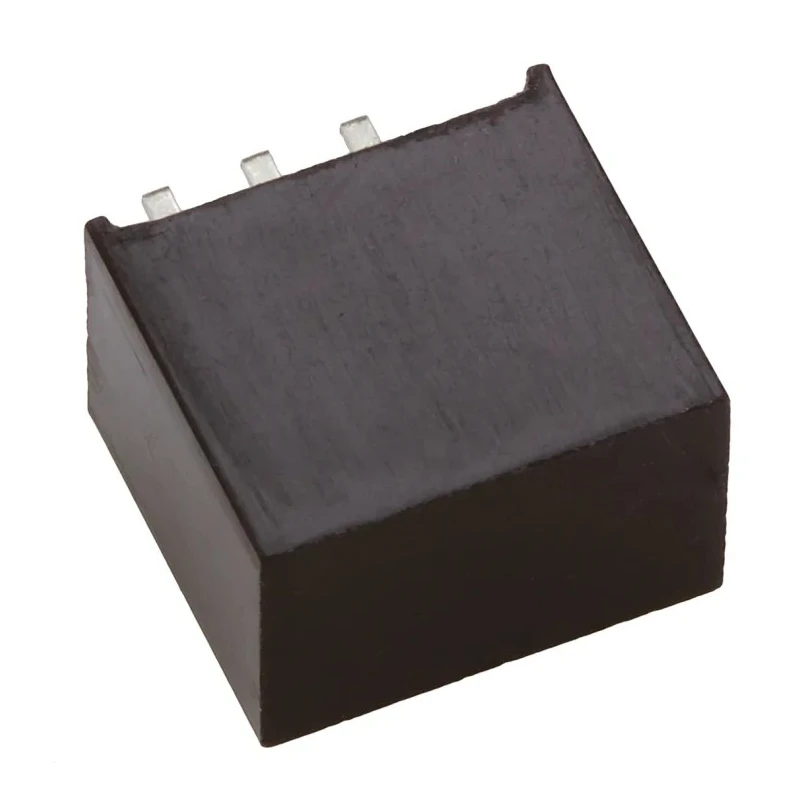

Recom Switching Regulator Through Hole 3.3V DC Output Voltage 1A Output Current 3.3W Power R-783.3-1.0

Name: Recom Switching Regulator Through Hole 3.3V DC Output Voltage 1A Output Current 3.3W Power R-783.3-1.0
Brand: Recom
SKU: 208031
Price: 14.39 USD
Availability: InStock



Category Switching Regulator Brand Recom Condition New

Specifications

Country of Origin	Taiwan
Brand	Recom
Power	3.3W
Efficiency	84%
Length	11.5mm
Model	R-783.3-1.0
Depth	10.2mm
Gross Weight	1.9g
Width	10.2mm
Mount Type	Through Hole
Series	R-78-1.0
Output Current	1A
Maximum Operating Temperature	85°C
Package Type	SIP
Load Regulation	±0.6 %
Minimum Operating Temperature	-40°C
MTBF	13338000h
Number of outputs	1
Ripple and Noise	30mV Pk-Pk
Maximum Input Voltage	18V dc
Line Regulation	±0.4 %
Standards/Approvals	RoHS
Minimum Input Voltage	4.75V
Output Voltage 1	3.3V dc

Key Features

Operates efficiently with up to 84% efficiency to reduce power loss.
Designed with through-hole mount for easy PCB integration.
Supports input voltages from 4.75V to 18V DC suitable for diverse applications.
Compact SIP package measures 11.5mm length, 10.2mm width, and 10.2mm depth.
Operates reliably in temperatures ranging from -40°C to 85°C for industrial use.
Integrated short-circuit protection safeguards connected devices from damage.
Ripple and noise are controlled at 30mV Pk-Pk for stable output quality.
High MTBF of over 13 million hours ensures long-term reliability.

Product Description

Recom R-783.3-1.0 is a high-efficiency switching regulator designed to deliver a stable 3.3V DC output voltage with a maximum output current of 1A. It features a through-hole mounting type in a compact SIP package for straightforward printed circuit board assembly and integration.

This regulator handles input voltages from 4.75V up to 18V DC, making it suitable for power conversion in various electronic circuits with differing voltage sources. Its operational temperature range extends from -40°C to 85°C, allowing reliable performance even in demanding industrial conditions.

Featuring an efficiency rating of 84%, the unit minimizes energy loss while providing a regulated output power of 3.3W. The ripple and noise is limited to 30mV peak-to-peak, ensuring clean output voltage for sensitive electronic components.

The R-783.3-1.0 integrates short-circuit protection to guard connected appliances against power surges or faults, enhancing system reliability and safety. With a mean time between failures rated at approximately 13.3 million hours, it delivers robust durability for long lifecycle applications.

This switching regulator is well-suited for use in telecommunications equipment, consumer electronics, robotics, and automation systems where stable voltage supply is critical. Operates with high efficiency of 84% reducing heat generation.

Through-hole mount simplifies PCB installation and maintenance. Wide input voltage range (4.75V to 18V DC) supports multiple power setups. Compact size with 11.5mm length, 10.2mm width and depth fits space-constrained designs.

Supports extreme operating temperatures from -40°C to 85°C for versatility. Low ripple and noise output ensures stable device operation. Enhanced protection via integrated short-circuit feature. Long life expectancy with high MTBF rating.

Ideal for industrial, telecommunications, and automation applications. Explore the extensive range of reliable Switching Regulators and power supplies available at EnvMart for industrial and electronic component projects.
