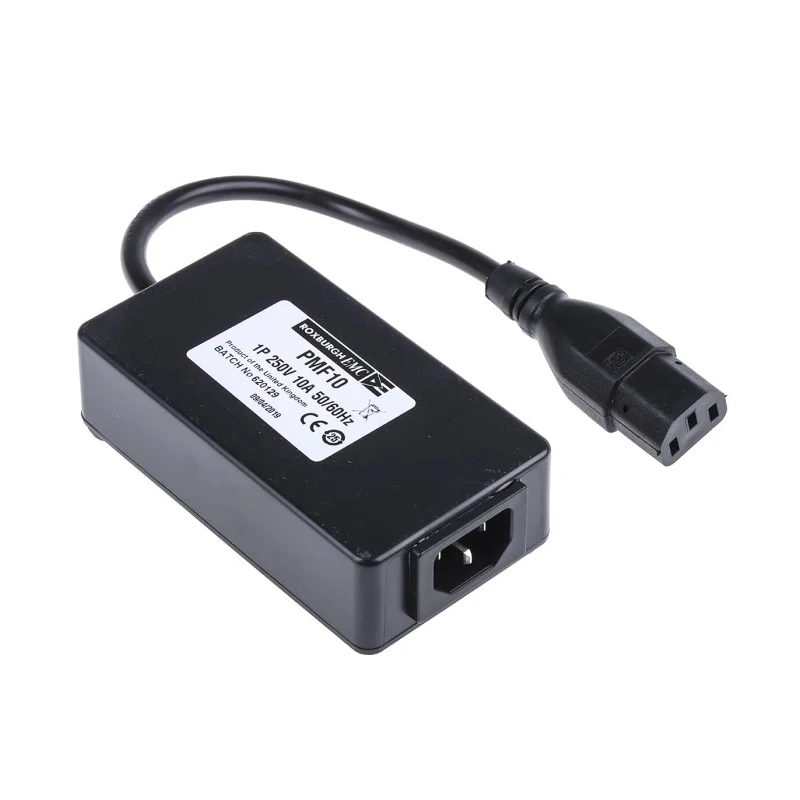

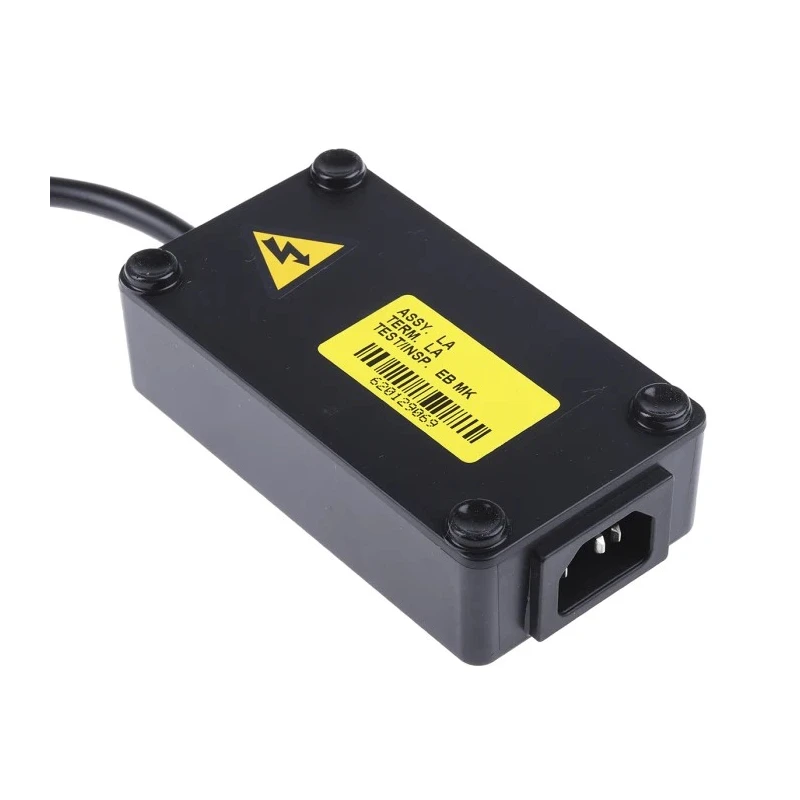

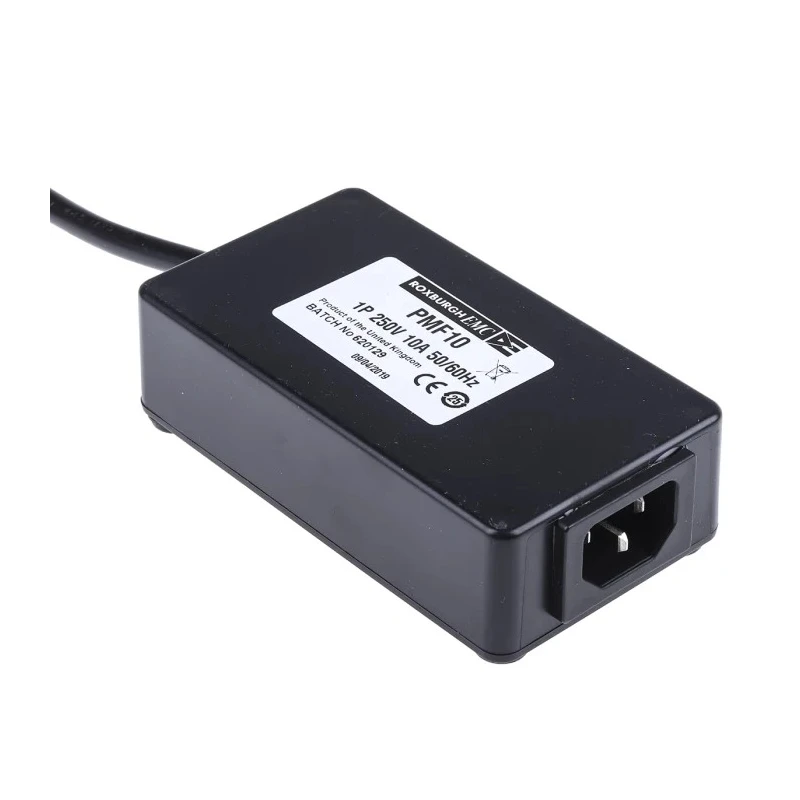

Roxburgh EMC High Performance Free Stand RFI Filter 10 A 250V AC 60Hz PMF10

Roxburgh EMC PMF10 Free Stand RFI Filter is a high performance single-phase filter supporting a maximum current of 10 A and maximum voltage of 250V AC at an operating frequency of 60Hz. It features a free standing mount type and connector termination style designed to fit modern electrical equipment where space is limited.

This filter includes an earth line choke and an across-the-line voltage dependent resistor (VDR) to provide effective suppression of mains-borne interference and protect equipment from voltage spikes. Its robust design allows operation within a broad temperature range of -25°C to 85°C and complies with the EN 60939 standard, guaranteeing quality and reliability.

With compact dimensions of 31mm height, 62mm depth, and 112mm length, the PMF10 filter provides low resistance of 8mΩ and a minimal power loss of 0.8W, making it suitable for efficient power line filtering applications. Leakage current is maintained at a low 350μA, enhancing safety during operation.

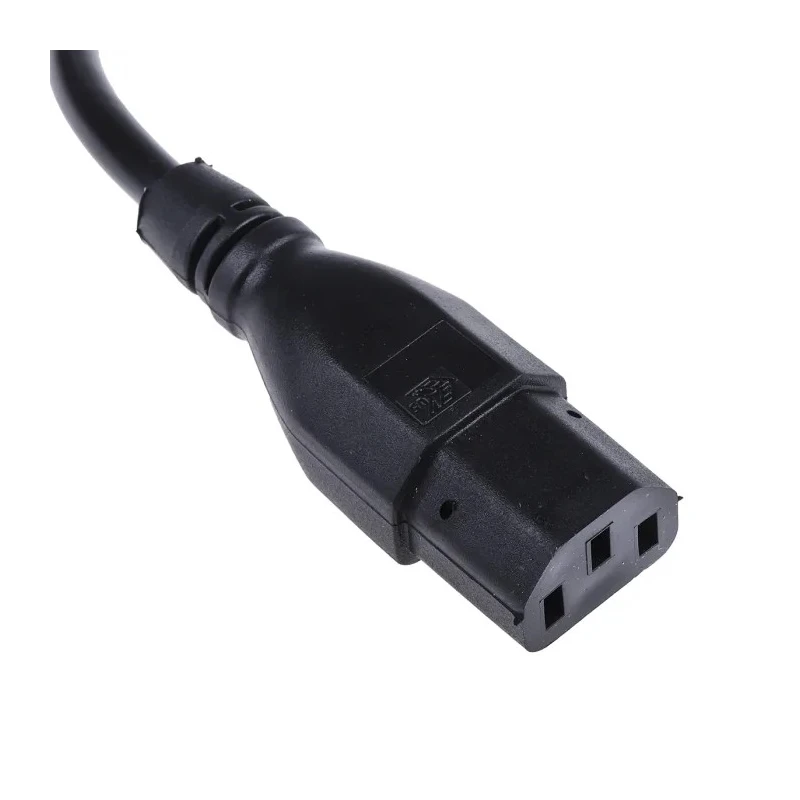

Manufactured in the United Kingdom, this filter is equipped with IEC C14 input and C13 connector leads with 220mm wire for easy connection. It serves applications in electronics, electrical components, power line filtering, and EMI suppression where high performance and compact form factor are essential.

Equipped with a free standing mount type for easy installation. Features a connector termination style with 1 phase operation. Operates within a temperature range of -25°C to 85°C for reliable performance. Includes an earth line choke and across-the-line VDR for enhanced filtering.

Standards compliant with EN 60939 ensuring quality and safety. Compact dimensions with height 31mm, depth 62mm, and length 112mm. Low resistance of 8mΩ minimizes power losses. Power loss rated at 0.8W enabling efficient operation.

Leakage current capped at 350μA for safe electrical characteristics. Designed and manufactured in the United Kingdom. Explore more Power Line Filters from Roxburgh EMC at EnvMart for industrial and electronic component needs.
