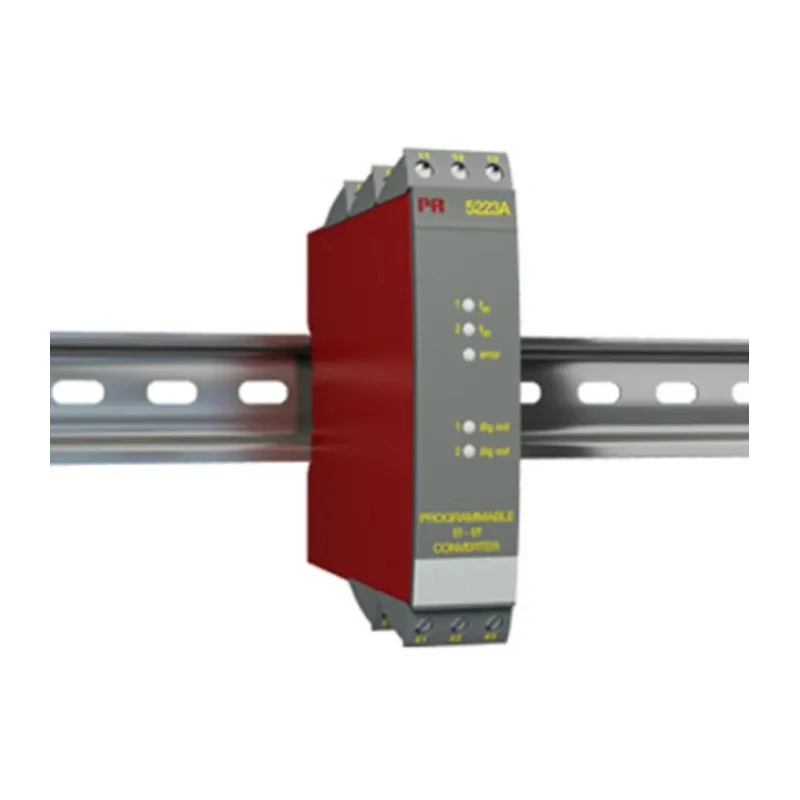

PR Electronics 5223 Series Programmable Signal Conditioner Relay Output, 21.6 V AC, 253 V AC, 19.2 V DC, 300 V DC 5223A1

PR Electronics 5223A1 programmable signal conditioner is designed for industrial automation and electrical applications requiring precise frequency to current or frequency conversion.

This device supports relay output and multiple supply voltages including 21.6 V AC, 253 V AC, 19.2 V DC, and 300 V DC, making it highly versatile across various systems.

It provides galvanic isolation of 3.75 kV AC to ensure noise immunity and signal clarity. The frequency to current (f/I) function converts frequency signals into current and voltage outputs, while frequency to frequency (f/f) functionality is useful for pulse division or multiplication and buffering fast pulse trains.

Programming can be performed safely and easily via a standard PC with the Loop Link communications unit or a PR 4501 detachable display module, featuring password protection to restrict unauthorized access.

The unit incorporates a pulse calculator, frequency generator, and supports various analog output types including 0-20 mA current and 0-10 VDC or 0-1 VDC voltage outputs along with relay outputs.

Its robust DIN rail mount and IP20 protection rating suit industrial control cabinets. Inputs and supply polarity are protected against reversal, enhancing reliability.

The operating temperature range from -20°C to 60°C allows operation in demanding environmental conditions. Compliance with EMC, LVD, EAC, and CE underscores its industrial safety and electromagnetic compatibility credentials.

Typical applications include signal conditioning in industrial automation, manufacturing control systems, water treatment plants, HVAC systems, and laboratory instrumentation. Offers frequency to current and frequency to frequency conversion functions.

Equipped with galvanic isolation rated at 3.75 kV AC for enhanced signal integrity. Programmable with a standard PC and Loop Link communications unit or with a detachable display module. Supports universal supply voltages including 21.6 V AC, 253 V AC, 19.2 V DC, and 300 V DC.

Provides multiple output options including analog current and voltage outputs and relays. Includes input and supply polarity reversal protection and pulse calculator features. Compact DIN rail mounting with IP20 protection rating.

Operational temperature range from -20°C to 60°C suitable for industrial environments. 5 status LEDs on the front facilitate operational diagnostics. Comes from Denmark with compliance to EMC, LVD, EAC, and CE standards.
