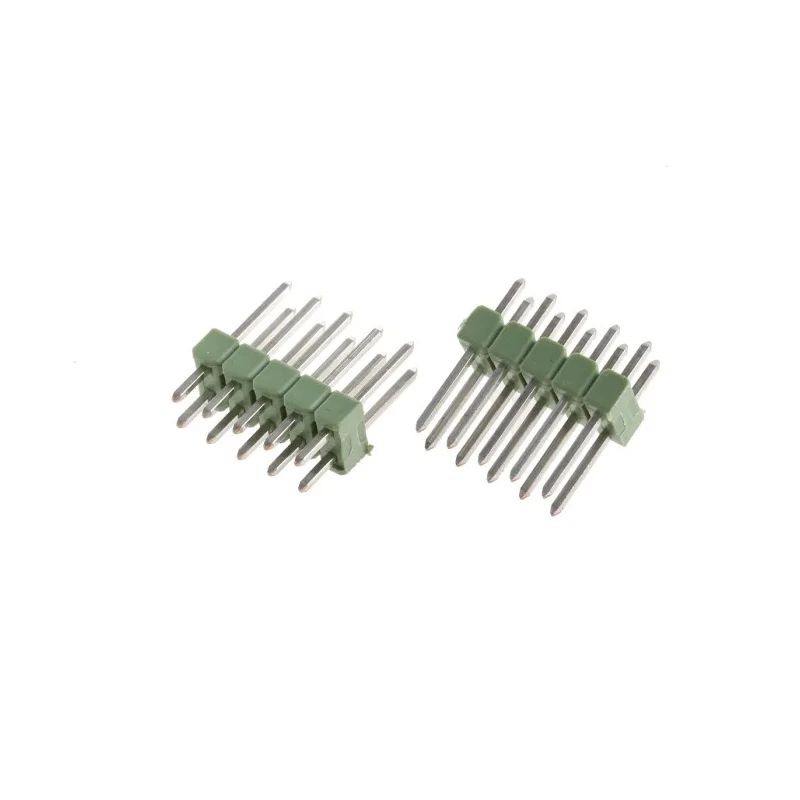

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 10 Contacts, 2.54 mm Pitch, 2 Row 826925-5

TE Connectivity 826925-5 AMPMODU MOD II Series Straight Through Hole Pin Header features 10 contacts arranged in 2 rows with a 2.54 mm pitch. This unshrouded, male pin header is designed for reliable board-to-board and wire-to-board connections in demanding industrial and commercial environments.

The header housing is made from durable polybutylene terephthalate material, providing excellent mechanical strength and thermal resistance. Contacts are crafted from phosphor bronze and plated with tin to ensure excellent electrical conductivity and corrosion resistance.

Rated voltage stands at 750 V and current handling at 3 A, suitable for various electronic assembly applications. With a mounting type of through-hole and solder termination, these headers offer secure and robust electrical connections on printed circuit boards.

The operating temperature range from -65°C to 105°C allows deployment in harsh environments. Tail pin length is 3.2 mm and mating pin length is 6.7 mm, ensuring proper engagement and reliable contact.

This AMPMODU MOD II family header is unshrouded and utilizes a breakaway design, allowing the header to be cut down to the required number of contacts, enhancing installation flexibility and efficiency. The headers are used widely in automotive controls, industrial and test equipment, computers, telecommunications, medical instruments, storage equipment, and household appliances.

The AMPMODU interconnect system is a signal standard for automation and control applications, delivering a compact, reliable, and economical solution combining board-to-board and wire-to-board connectors. These headers support time-saving installation with simultaneous solder post installation.

The headers feature a 2.54 mm pitch and double-row straight orientation. Constructed with polybutylene terephthalate housing and phosphor bronze contacts plated with tin for durability. Rated for operating voltages up to 750 V and currents up to 3 A.

Designed for through-hole mounting and solder termination for secure installation. Contact tail length of 3.2 mm and mating pin length of 6.7 mm ensures solid engagement. Operating temperature range from -65°C to 105°C for wide environmental tolerance.

Unshrouded, male contact headers suitable for industrial, automotive, telecommunications, and medical applications. Breakaway design allows customization to required size, improving installation efficiency. Compatible with AMPMODU Interconnect system enabling versatile and economical automation solutions.

Applicable in industrial controls, test equipment, computers, storage devices, and appliances. Explore the extensive selection of PCB Headers and connectors at EnvMart for all your electronic component needs.
