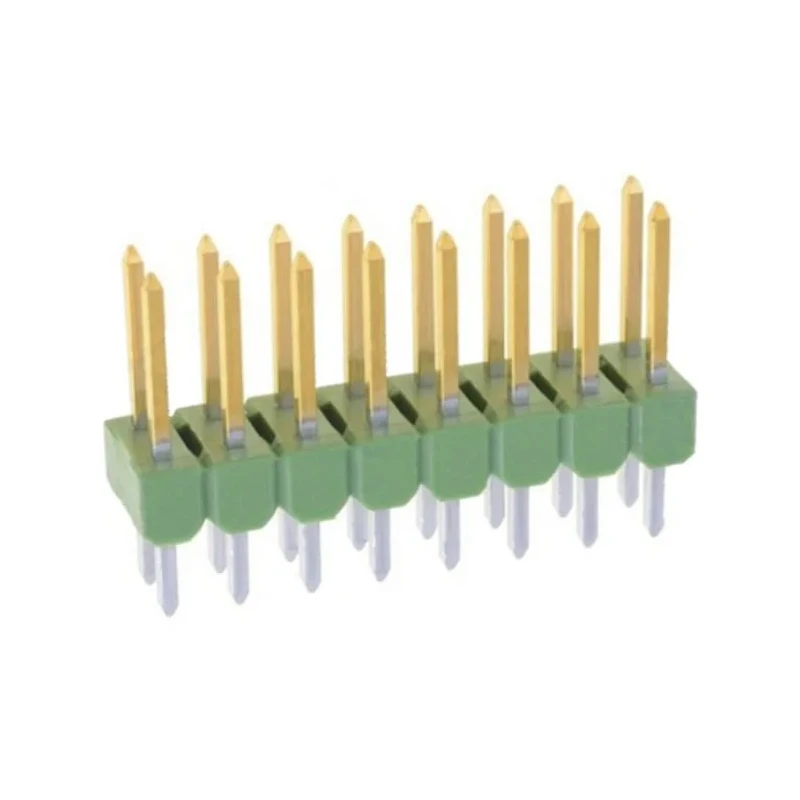

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 16 Contacts, 2.54 mm Pitch, 2 Row 826632-8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 826632-8 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- This connector features a 2-row, unshrouded design suitable for various industrial applications.
- It supports a current rating of 3A and voltage of 750V for effective signal transmission.
- Constructed with brass contacts plated in gold for superior conductivity and corrosion resistance.
- The housing is made from durable Polybutylene Terephthalate, ensuring stability and longevity.
- Designed for through hole mounting with male contacts and solder termination.
- The pin headers operate reliably within a temperature range of -65°C to 105°C.
- The mating pin length is 6.7 mm and tail pin length is 3.2 mm, ensuring secure connection.
- Suitable for use in industrial, automotive, telecommunications, medical instruments, and test equipment.
Product Description
TE Connectivity 826632-8 AMPMODU MOD II Series Straight Through Hole Pin Header is a high-quality, versatile interconnect solution with 16 contacts arranged in 2 rows, featuring a 2.54 mm pitch. This unshrouded pin header provides reliable connections for board-to-board and wire-to-board applications.
The pin header is constructed with brass contacts featuring gold plating to assure excellent electrical conductivity and resistance to corrosion. The durable housing material, Polybutylene Terephthalate, offers mechanical stability and thermal durability.
Designed for through hole mounting, the pin header supports a continuous current rating of 3A and withstands operating voltages up to 750V. Operating temperature ranges from -65°C to 105°C, making it suitable for demanding environments.
The connector has a mating pin length of 6.7 mm and a tail pin length of 3.2 mm, which provides secure solder connections, simplifying assembly and reducing labor costs. Its unshrouded double row design allows for easy size modification by breaking it into required lengths.
These headers are widely used across automotive controls, industrial equipment, telecommunications, medical instruments, and storage equipment due to their reliable performance and economical design.
This connector features a 2-row, unshrouded design suitable for various industrial applications. It supports a current rating of 3A and voltage of 750V for effective signal transmission. Constructed with brass contacts plated in gold for superior conductivity and corrosion resistance.
The housing is made from durable Polybutylene Terephthalate, ensuring stability and longevity. Designed for through hole mounting with male contacts and solder termination. The pin headers operate reliably within a temperature range of -65°C to 105°C.
The mating pin length is 6.7 mm and tail pin length is 3.2 mm, ensuring secure connection. Suitable for use in industrial, automotive, telecommunications, medical instruments, and test equipment. Explore the range of TE Connectivity connectors and PCB Headers available on EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header supports a current rating of 3A and a voltage rating of 750V, making it suitable for effective signal transmission in various applications.
The connector features a 2.54 mm pitch and is equipped with 16 contacts arranged in 2 rows.
It is constructed with brass contacts plated in gold for superior conductivity and corrosion resistance, while the housing is made from Polybutylene Terephthalate.
This pin header operates reliably within a temperature range of -65°C to 105°C, making it suitable for demanding environments.
The connector is designed for through hole mounting with male contacts and solder termination, ensuring secure connections.
The mating pin length is 6.7 mm, and the tail pin length is 3.2 mm, providing secure solder connections.
This model is suitable for use in industrial, automotive, telecommunications, medical instruments, and test equipment due to its reliable performance.
It supports both board-to-board and wire-to-board connector systems, providing versatility in various applications.
The connector has a straight orientation, which is typical for many PCB header applications.
This pin header belongs to the AMPMODU MOD II series, known for its reliable interconnect solutions.
The country of origin for this pin header is India.
