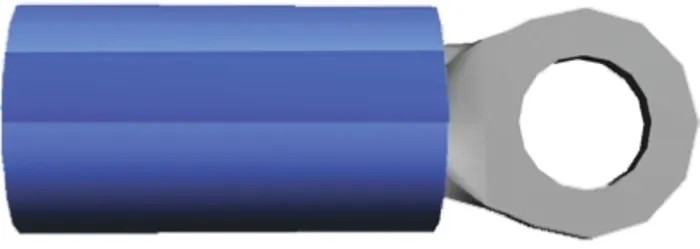

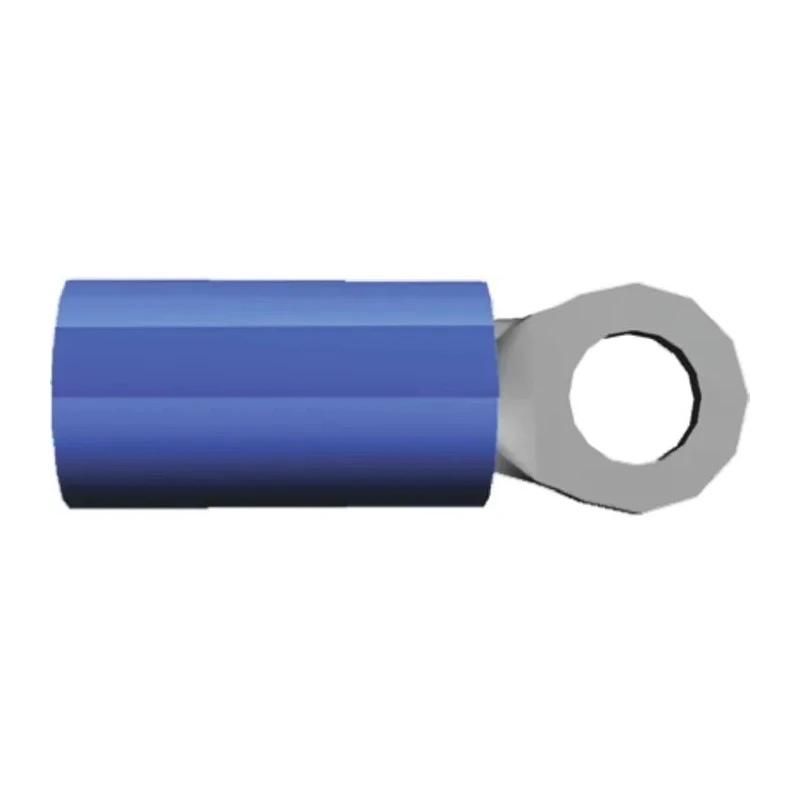

TE Connectivity PIDG Insulated Ring Terminal M3.5 Stud Size 16 AWG 14 AWG Wire Size Blue 2-320561-3

TE Connectivity 2-320561-3 PIDG Insulated Ring Terminal is a high-quality electrical connector designed for robust and reliable wire termination. Engineered with a precision-formed copper body and barrel, this terminal ensures excellent conductivity and mechanical strength essential for demanding circuit environments.

The wire barrel incorporates serrations to enhance contact and tensile strength post-crimping. Internally, a copper sleeve reinforces insulation support and inhibits wire fraying. The exterior features a blue nylon insulated sleeve that aids in quick wire size identification and enhanced electrical safety.

With an overall length of 19.43mm and compatible with wire sizes 16 AWG to 14 AWG, it fits M3.5 stud sizes perfectly. The construction supports uniform and reliable crimps, made possible by specialized tool dies matching the PIDG terminal design.

These terminals find broad use across multiple industrial sectors, including instrumentation, lighting systems, power supply units, panel box wiring, transportation equipment, lifting machinery, motors, aerospace components, and household appliances. They meet or exceed MIL-T-7928 Type II Class 1 and 2 requirements in many cases.

The funnelled wire entry facilitates efficient wire insertion, supporting high-volume assembly line productivity without compromising on wiring integrity. Constructed with high conductivity copper body ensuring optimal electrical performance.

Features a blue nylon insulated sleeve for wire size identification and electrical safety. Contains serrations in the wire barrel for excellent contact and tensile strength after crimping. Includes a copper sleeve inside the barrel to support insulation and prevent wire fraying.

Suitable for use in instruments, lighting, power supplies, panel boxes, and aerospace applications. Efficient wire insertion is enabled by funnelled entry design, facilitating high-speed production. Complies with RoHS standards, suitable up to 105°C maximum operating temperature.

Explore the comprehensive range of TE Connectivity terminals and related power connectors at EnvMart to meet diverse industrial wiring requirements.
