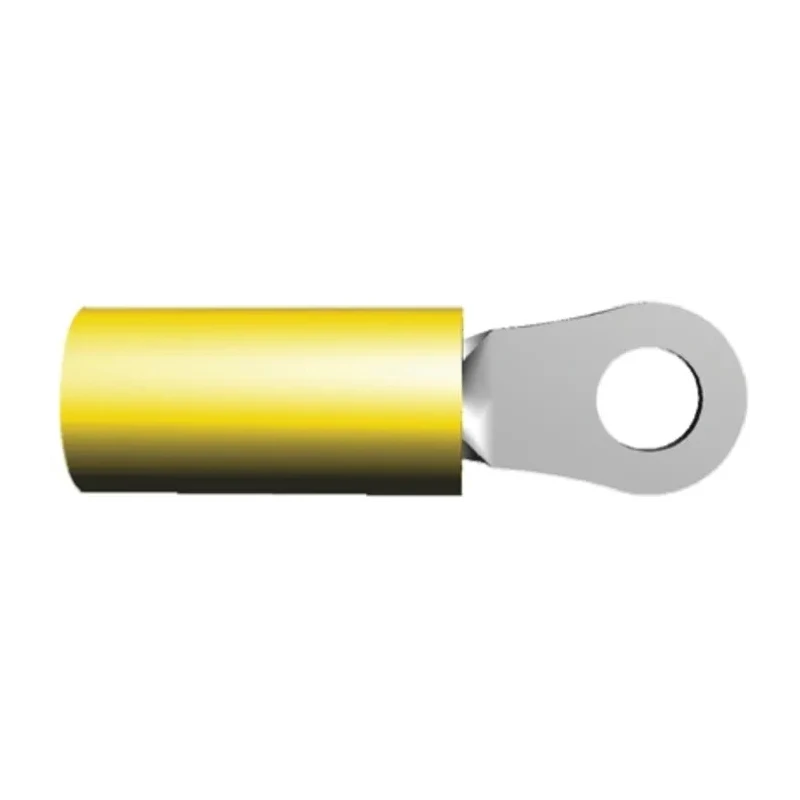

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 12 AWG 10 AWG Wire Size Yellow 324918

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 12 AWG 10 AWG Wire Size Yellow 324918

Name: TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 12 AWG 10 AWG Wire Size Yellow 324918
Brand: TE Connectivity
SKU: 205559
Price: 1.06 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Colour	Yellow
THICKNESS	0.79mm
Model	324918
Insulation	Insulated
Overall Length	26.72mm
Contact Material	Copper
Series	PIDG
Maximum Operating Temperature	105°C
Insulation Material	Nylon
Standards/Approvals	RoHS
Contact Plating	Tin
Minimum Wire Size mm²	2.6mm²
Maximum Wire Size mm²	6.6mm²
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	10AWG
Outer Ring Diameter	7.92mm
Inner Ring Diameter	5mm
Stud Size	M5

Key Features

Manufactured with a high conductivity copper body providing excellent electrical performance.
Features a copper sleeve on the wire barrel for improved insulation support and to prevent wire fraying.
Serrations inside the barrel ensure maximum contact and tensile strength after crimping.
Colour coded nylon sleeve aids in quick wire size and tooling identification.
Funnelled wire entry allows fast insertion of wire strands during high-speed production.
Complies with RoHS standards for environmental safety.
Maximum operating temperature rated at 105°C ensuring reliability in demanding applications.
Suitable for use in instruments, control panels, power supplies, lighting, transportation, aerospace, and other industrial environments.

Product Description

TE Connectivity 324918 PIDG Insulated Ring Terminal features a high conductivity copper body and copper sleeve for enhanced wire insulation support and prevention of fraying. The interior serrations provide superior contact and tensile strength, guaranteeing a secure crimp connection.

This M5 stud size terminal supports wire sizes from 12 AWG to 10 AWG (2.6 mm² to 6.6 mm²) and has a robust yellow nylon insulated sleeve for easy identification and durability in harsh environments.

The funnelled wire entry design facilitates quick and reliable wire insertion, ideal for high-speed production processes. The terminal operates reliably up to 105°C, making it suitable for demanding industrial, aerospace, automotive, instrumentation, HVAC, manufacturing, and electrical applications.

Compliant with RoHS environmental standards, these terminals are engineered to provide consistent and uniform crimps when used with the appropriate tooling. The precision-formed design and specialized crimp dies ensure maximum performance and mechanical strength.

High conductivity copper body for optimal electrical transmission. Copper sleeve enhances insulation and prevents wire strand fraying. Serrated wire barrel for secure mechanical and electrical connection. Colour coded yellow nylon sleeve for quick wire size recognition.

Funnelled entry for fast wire insertion during assembly. Meets RoHS standards ensuring environmental compliance. Suitable for wiring in aerospace, automotive, control panels, and power supply systems. Maximum operating temperature of 105°C for reliable performance.

Supports wire sizes from 12 AWG to 10 AWG.

This TE Connectivity PIDG Insulated Ring Terminal is a reliable solution for industrial and commercial wiring applications requiring high mechanical strength and consistent electrical contact quality. Explore more TE Connectivity wire terminals and connectors at EnvMart for professional and reliable electrical installations.
