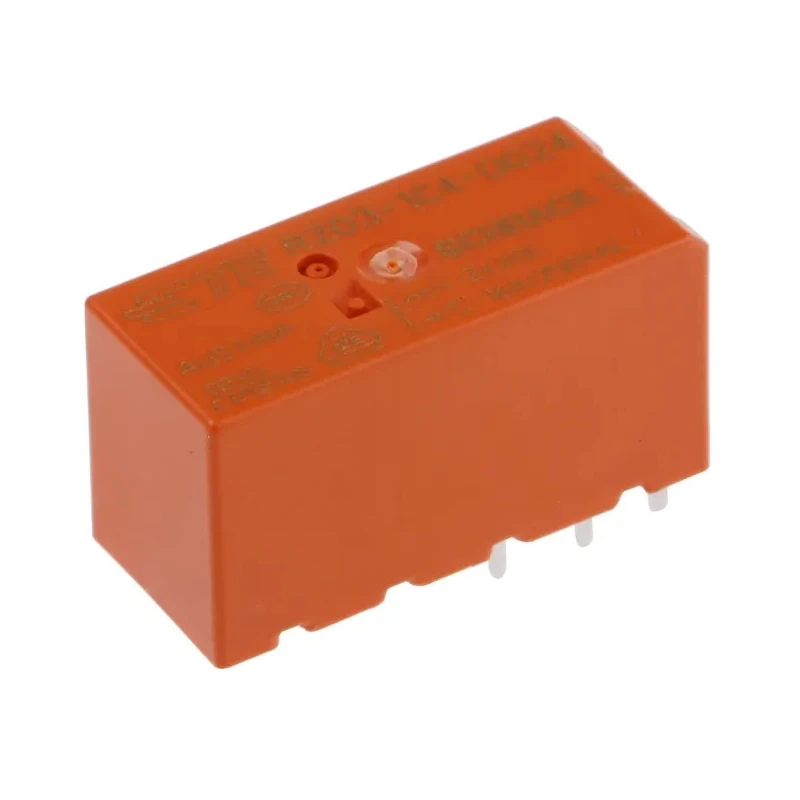

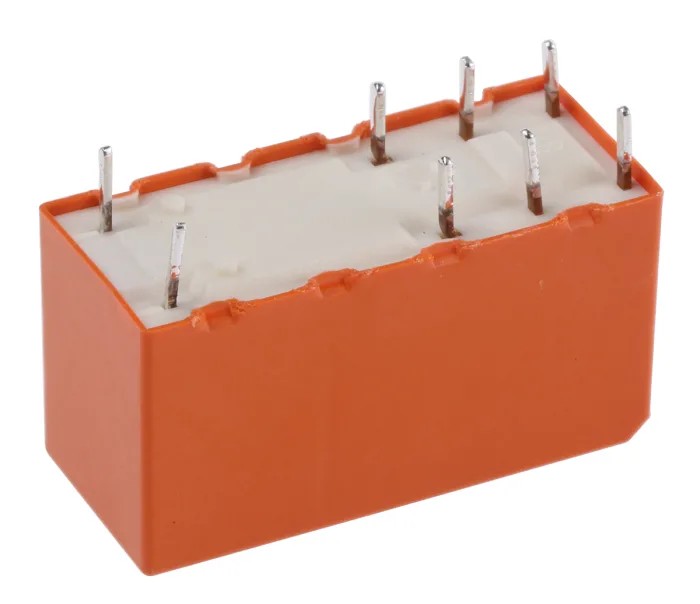

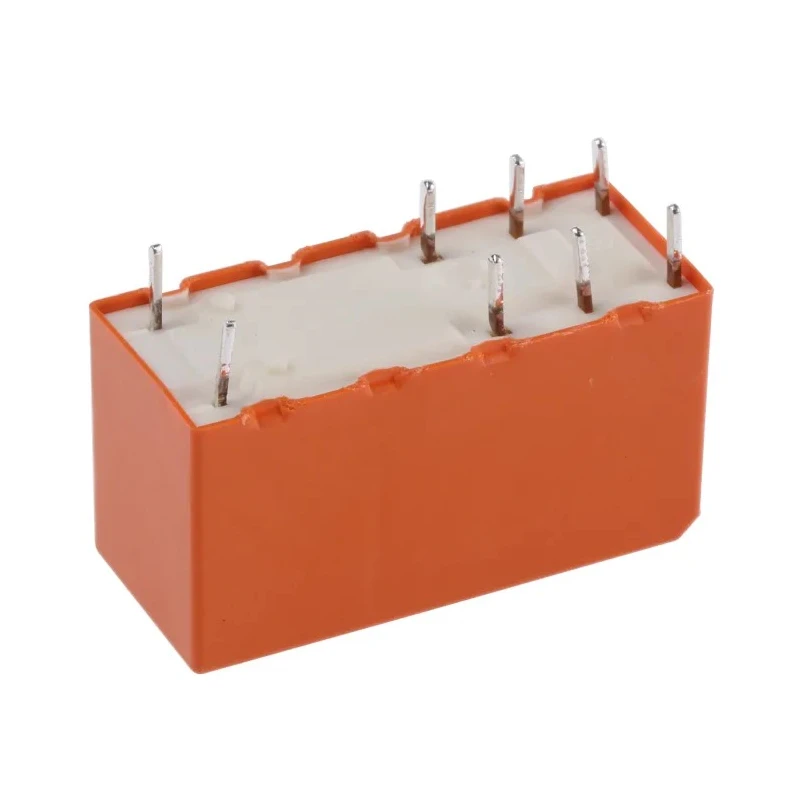

TE Connectivity PCB Power Relay SPDT 24V DC Coil 16A Switching Current 400V AC 3kVA 400mW Coil Power Silver RZ03-1C4-D024

TE Connectivity RZ03-1C4-D024 is a PCB-mounted power relay engineered for precision switching applications in industrial and electrical systems. It features a single pole double throw (SPDT) contact configuration suited for controlling diverse loads with a high switching current rating of 16A and switching voltage capacity of up to 400V AC. The relay coil operates at 24V DC with a power consumption of just 400 mW, supported by a coil resistance of 1.4 kΩ, optimizing its energy efficiency.

The relay's compact form factor measures 29 mm in length, 12.7 mm in width, and 15.7 mm in height, making it ideal for space-sensitive PCB integration. Its silver alloy contacts provide excellent conductivity and durability, designed to support switching power of up to 3 kVA. The device is solder terminal mounted, ensuring secure and stable connections on printed circuit boards.

Engineered for robust performance, the RZ03-1C4-D024 supports a wide operating temperature range from -40°C to +85°C, suitable for harsh and variable environments found in manufacturing, automation, HVAC control systems, and power management. This relay series incorporates a flux-tight design and reinforced insulation rated at 5 kV and 10 mm, enhancing safety and reliability in high voltage circuits.

The product complies with global safety and environmental standards including IEC, VDE, UL certifications along with RoHS and REACH directives, ensuring its suitability for international applications. Manufactured in Austria, the relay guarantees high production quality and longevity, making it a trusted component for electrical control panels, industrial machinery, and automated equipment.

The relay features SPDT contact configuration suitable for various industrial applications. Compact PCB mount design with dimensions 29 mm length x 12.7 mm width x 15.7 mm height. Coil power consumption is a low 400 mW with coil resistance of 1.4 kΩ.

Contacts are made from durable silver alloy ensuring long service life and conductivity. Operating temperature range from -40°C to +85°C enables use in harsh environments. Rated switching power is 3 kVA supporting medium power electrical loads.

Mounting type is PCB with solder terminal connections for ease of assembly. Meets international standards including IEC, VDE, UL, RoHS, and REACH compliance. Designed for flux tightness and enhanced insulation with 5kV and 10 mm reinforced barrier.

Manufactured in Austria ensuring high quality and reliability.

This TE Connectivity power relay is ideal for use in industrial automation, manufacturing equipment, HVAC control units, and electrical power systems requiring reliable switching performance and safety assurance. Browse EnvMart’s extensive selection of Power Relays and related electrical components for efficient circuit control and protection solutions.
