Block PCB Transformer 12 V AC 2 Output Pin IEC 61558-2-6 VDE 0570 Part 2-6 IEC 61558-2-1 ENEC 10 DIN EN AVB2.3/2/12

Block AVB2.3/2/12 PCB Transformer is a high-quality transformer designed for electronic applications requiring a dual 115 V AC primary input and 12 V AC dual outputs. It is suitable for PCB mounting with pin connections and is inherently short circuit proof, ensuring durability and safety in industrial, laboratory, and manufacturing electronics environments.

The transformer is molded in vacuum epoxy resin rated UL94-V0 for flame retardance and uses double-section glass fibre reinforced polyamide bobbins for mechanical stability. With a power rating of 2.3 VA and an efficiency of 59%, it balances effective energy use with reliable performance.

Designed to operate at frequencies between 50 Hz and 60 Hz, it supports dual primary voltages of 115 V AC and 230 V AC, accommodating various international electrical standards. It has an isolation voltage of 5000 V and can withstand a maximum operating temperature of 70°C, ensuring safety and thermal resilience in demanding electronic circuits.

The compact dimensions of 32.3 mm length, 27.3 mm width, and 34 mm depth allow it to fit efficiently within PCB assemblies. It fully complies with IEC 61558-2-6, VDE 0570 Part 2-6, IEC 61558-2-1, ENEC 10 (VDE), DIN EN standards, and holds approvals such as C-UL-US and CSA 22.2.

Applications include use in industrial electronic devices, laboratory instruments, HVAC systems, and other commercial electrical equipment requiring a small, efficient, and safe transformer solution.

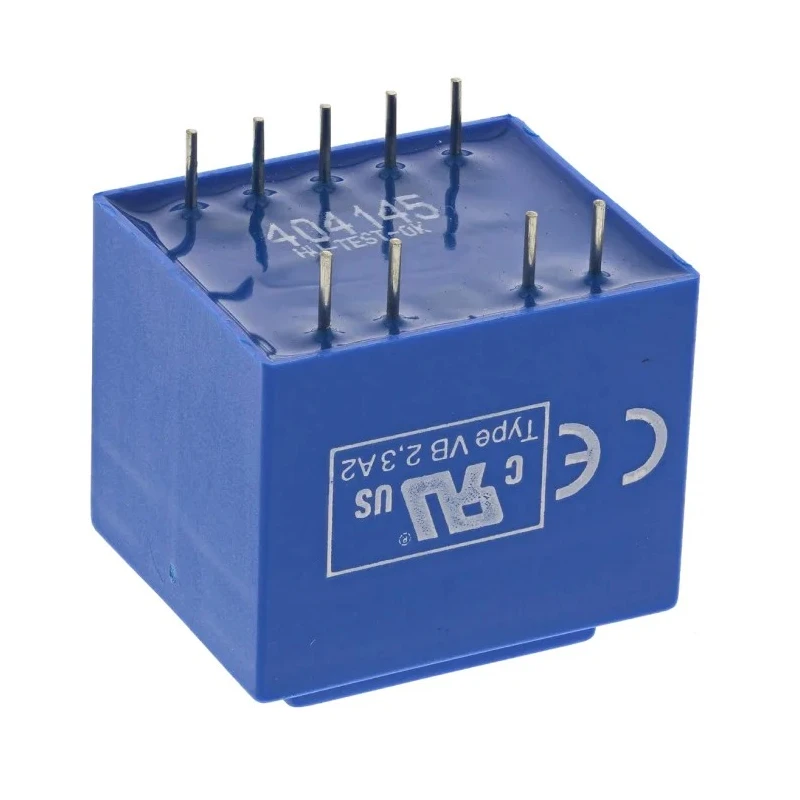

This PCB transformer is designed for mounting using pins, suitable for compact spaces. The device operates at a power rating of 2.3 VA with 59% efficiency. Featuring short circuit proof design with vacuum epoxy resin molding to UL94-V0 standards.

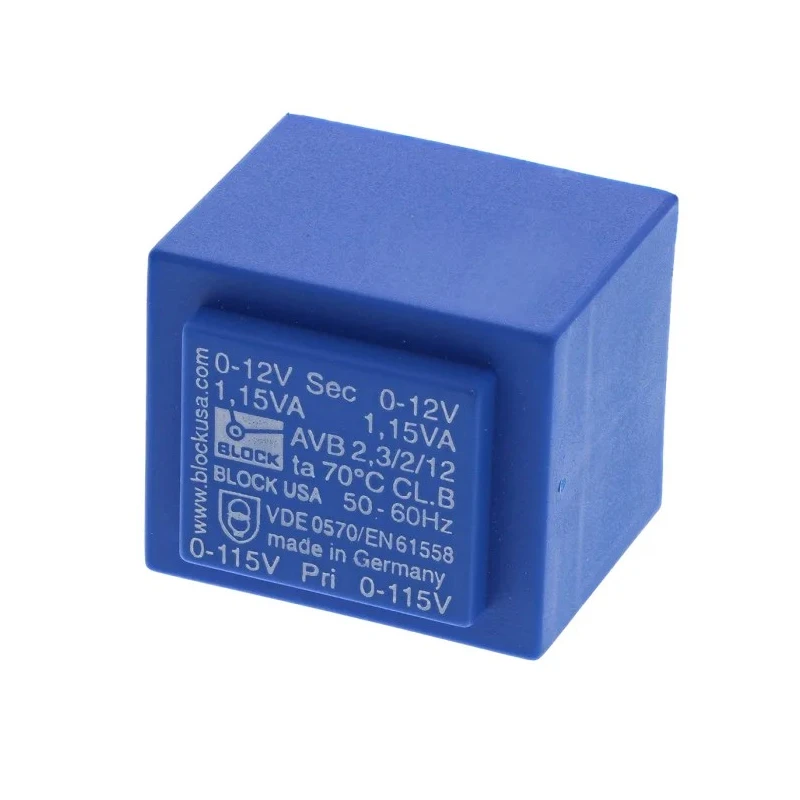

Maximum operating temperature is 70°C ensuring reliable performance under thermal stress. It has isolation voltage rated at 5000 V, enhancing safety in electronic circuits. Dual 115 V AC primary windings support series or parallel connection configurations.

Dimensions are compact, measuring approximately 32.3 mm length, 27.3 mm width, and 34 mm depth. Complies with multiple international standards including IEC, VDE, ENEC, UL, CSA, and DIN EN certifications. Manufactured in Germany with rigorous electrical and flash testing processes.
