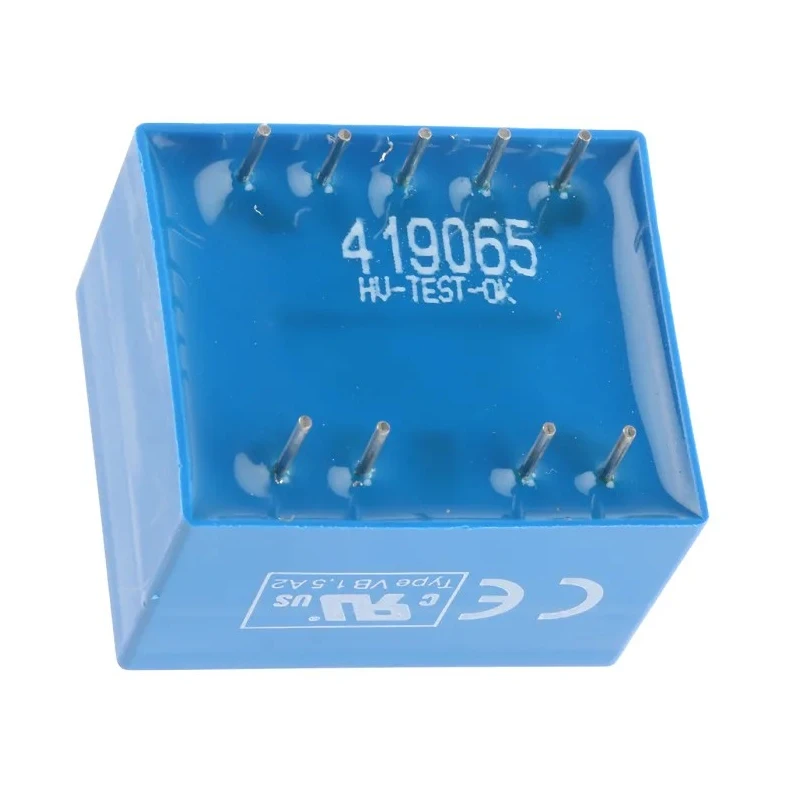

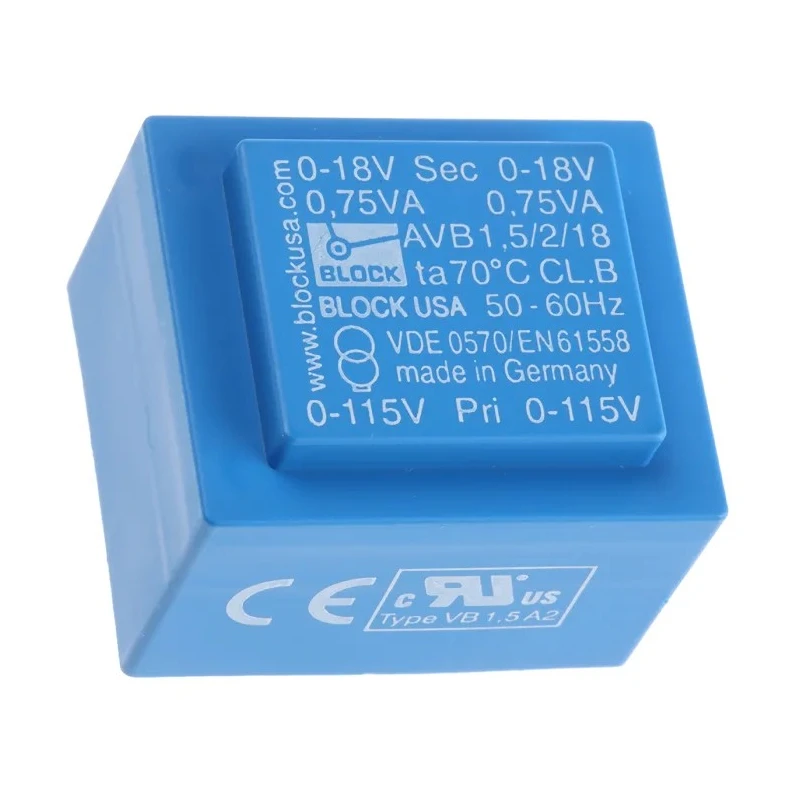

Block 18 V ac 2 Output Pin PCB Transformer, VDE 0570 Part 2-6, ENEC 10 (VDE), DIN EN 61558-2-1, C-UL-US, IEC AVB1.5/2/18

Block AVB1.5/2/18 is a high-quality 18 V ac 2 Output Pin PCB Transformer designed with a primary voltage of 115 V ac or 230 V ac and power capability of 1.5 VA. This model features dual secondary windings suitable for series or parallel connection, making it versatile for varying electronic applications including power supplies and industrial PCB transformers.

The transformer conforms to rigorous international standards such as VDE 0570 Part 2-6, ENEC 10 (VDE), DIN EN 61558-2-1, C-UL-US, and IEC 61558-2-6, ensuring compliance and safety in industrial, laboratory, and commercial use cases.

Constructed with vacuum epoxy resin moulding to UL94-V0 flammability rating and double section glass fibre reinforced polyamide bobbins, it offers robustness and resistance to thermal and electrical stress. Its short circuit proof design enhances operational safety.

It has a compact form factor with dimensions of 32.3 mm length, 27.3 mm width, and 23.8 mm depth, and weighs only 80 g, facilitating easy PCB mounting via pin type installation. The transformer operates efficiently with 57% efficiency and tolerates maximum operating temperatures up to 70°C, with frequency compatibility from 50 Hz to 60 Hz.

Its isolation voltage is rated at 5000 V, providing excellent electrical safety for demanding environments. This transformer is manufactured in Germany, reflecting high quality standards and reliable performance.

Pin mount type suitable for secure PCB installation. Isolation voltage of 5000 V for operational safety. Short circuit proof compact design for durability. Vacuum epoxy resin moulded with UL94-V0 fire rating. Dual secondary windings allow series or parallel use.

Complies with multiple international safety and performance standards. Lightweight and compact dimensions for easy integration. High efficiency with low temperature rise for prolonged life. Dual primary voltage compatibility at 115 V ac and 230 V ac.

Operating frequency range 50-60 Hz for versatile applications.

This Block PCB transformer model AVB1.5/2/18 is ideal for industrial, electronic components, power supplies, laboratory, and manufacturing applications requiring verified electrical performance and safety standards. Explore EnvMart's category for PCB Transformers for detailed technical options and similar products.
