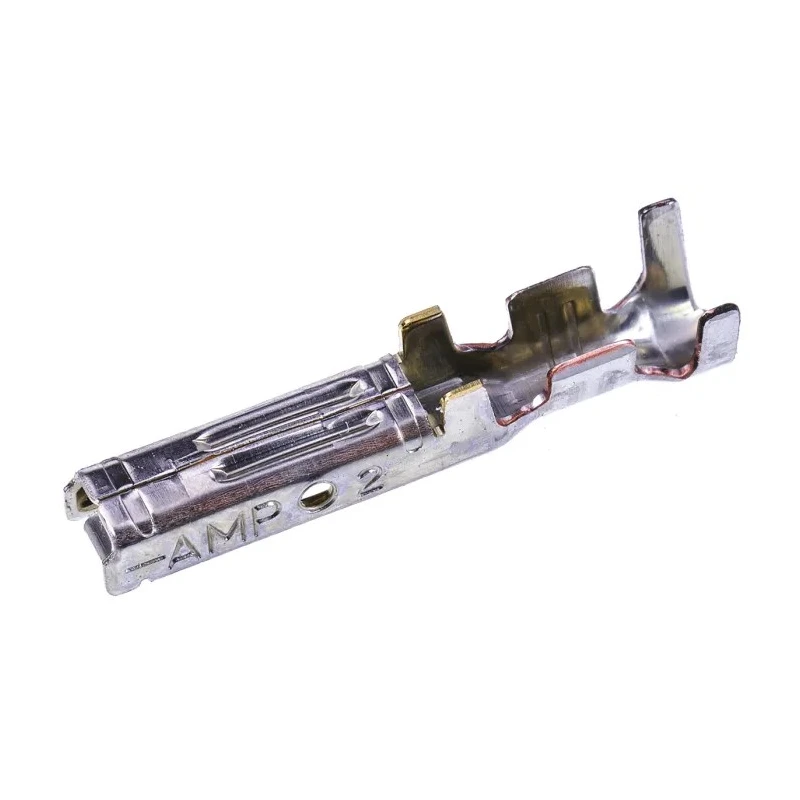

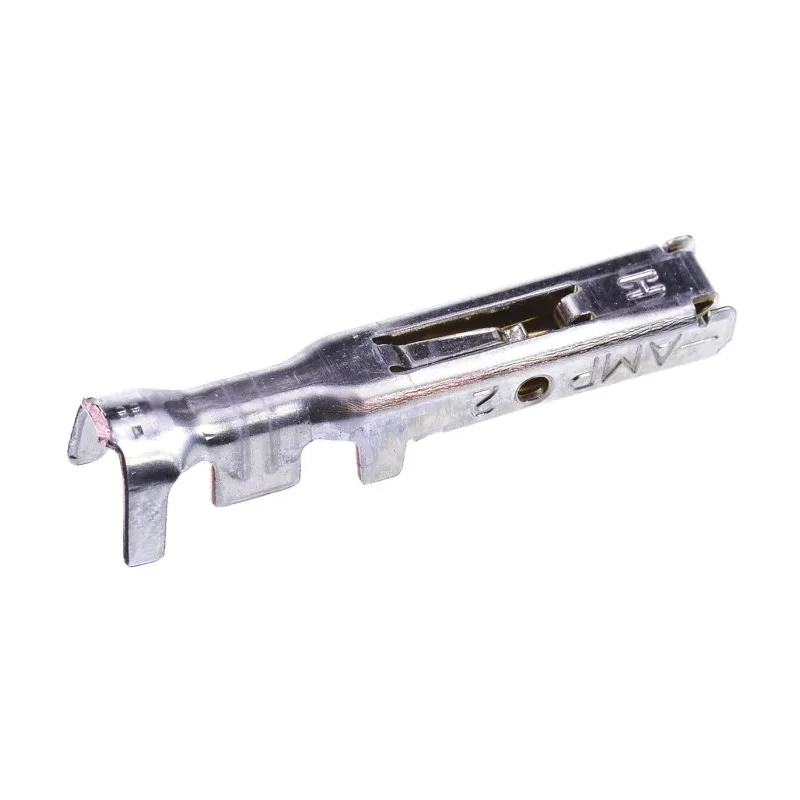

TE Connectivity Dynamic 3000 Series Female Crimp Terminal, 20 AWG Min, 16 AWG Max, Gold Plated, Copper Alloy 1-175196-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 15A |
| Length | 17.8mm |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | Dynamic 3000 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Dynamic 3000 Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.25mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
Key Features
- Supports wire sizes from 20 AWG minimum to 16 AWG maximum for versatile use.
- Gold plating enhances conductivity and corrosion resistance.
- Constructed from durable copper alloy for reliable performance.
- Rated for a maximum current of 15 amperes ensuring high power handling.
- Terminated by crimp method providing secure mechanical and electrical contact.
- Operates efficiently between -55°C and 105°C temperature range.
- Features a twist-resistant box style design with three points of contact for electrical reliability.
- Standard and high pressure contact versions available for varied insertion cycles and vibration resistance.
Product Description
TE Connectivity 1-175196-2 female crimp terminal from the Dynamic 3000 Series is engineered for industrial and electronic connector assemblies where reliable and high-current electrical connections are essential. It is compatible with Dynamic 3000 connector housings, supporting a wire size range from 20 AWG minimum to 16 AWG maximum, offering flexibility in wiring applications.
This crimp terminal features a gold-plated copper alloy contact that ensures excellent electrical conductivity and corrosion resistance, suitable for demanding environments. Rated for 15 amperes current, it supports robust power delivery in combined signal and power circuits.
The terminal employs a twist-resistant box-style receptacle design delivering three points of contact, which enhances electrical reliability. It is designed to withstand operating temperatures from -55°C to 105°C, making it suitable for various industrial and commercial uses.
The contact length of 17.8 mm ensures secure connection within the Dynamic 3000 series housings, where a locking lance creates an audible click confirming secure placement. Removal is facilitated by using correct tooling without damage.
Available in standard pressure for high insertion cycles and high pressure for vibration-sensitive applications, these terminals suit varied operational demands. The Dynamic 3000 Series female crimp terminal finds applications across industrial machinery, automotive, and electronic devices requiring dependable wire termination.
Supports wire sizes from 20 AWG to 16 AWG. Gold plating ensures durability and conductivity. Copper alloy construction for strength and reliability. Rated current capacity is 15 A. Temperature range from -55°C to 105°C enables wide application.
Twist-resistant box design for contact integrity. Three contact points improve electrical performance. Length of 17.8 mm fits Dynamic 3000 housings. Available in standard and high pressure variants. Easy removal with suitable tooling.
Choose TE Connectivity Dynamic 3000 Series female Crimp Terminals for secure, reliable, and high-performance connections in electronics, industrial machines, automotive, and other professional applications. Discover more high-quality connectors and components within EnvMart's comprehensive portfolio.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a wire size range from 20 AWG minimum to 16 AWG maximum.
It is rated for a maximum current of 15 amperes, making it suitable for high power handling applications.
The terminal is constructed from copper alloy and features gold plating for enhanced conductivity and corrosion resistance.
It operates efficiently within a temperature range of -55°C to 105°C, accommodating various industrial environments.
The contact length is 17.8 mm, designed to fit securely within Dynamic 3000 connector housings.
This terminal employs a crimp termination method, providing secure mechanical and electrical contact.
Yes, it is designed for use with Dynamic 3000 connector housings, ensuring proper fit and functionality.
It features a twist-resistant box style design with three points of contact, which improves electrical performance.
Yes, it is available in standard pressure for high insertion cycles and high pressure for vibration-sensitive applications.
Removal is facilitated by using the correct tooling, which prevents damage to the terminal during extraction.
The country of origin for this crimp terminal is India.
This terminal is suitable for applications in industrial machinery, automotive, and electronic devices requiring dependable wire termination.
