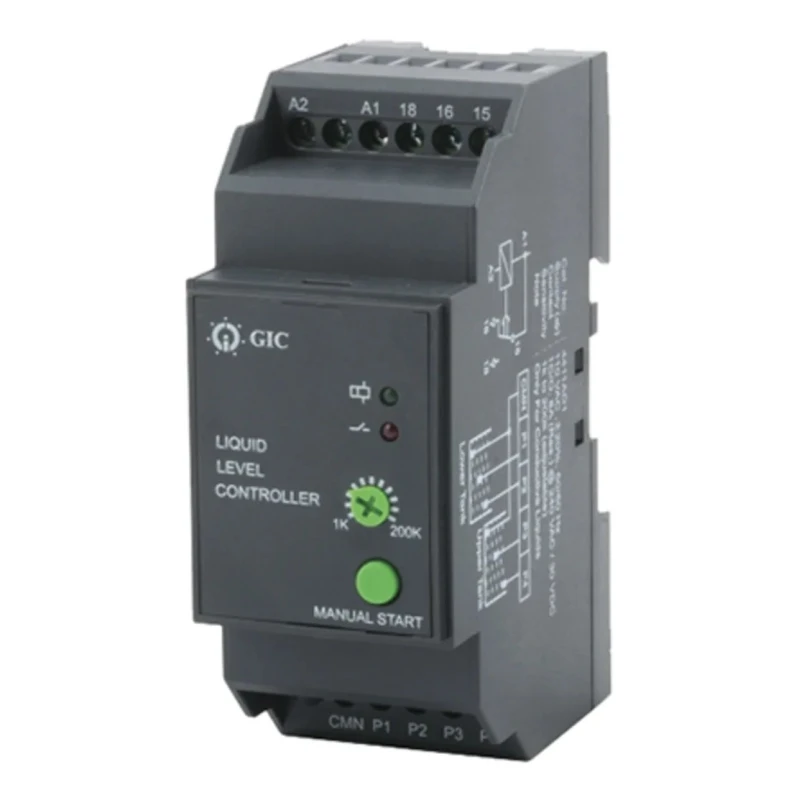

GIC 44 Series Level Controller with DIN Rail Mount, Voltage Input 110V, 10s Response Time 4411AD1

Free Delivery in India | Lowest Global Shipping Charges

GIC 44 Series Level Controller with DIN Rail Mount, Voltage Input 110V, 10s Response Time 4411AD1



Category Level Controllers Brand GIC Condition New

Specifications

Country of Origin	India
Voltage	Input 110V-Rated Relay RS Stock No
Brand	GIC
Response time	10s
Model	4411AD1
SENSITIVITY	200kΩ
IP Rating	IP20, IP40
Mount Type	DIN Rail
Overall Length	90mm
Current Rating	8A
Output type	Relay
Series	44
Overall Width	36mm
Input Type	Voltage
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Terminal type	Screw
Standards/Approvals	CE
Maximum Supply Voltage	110V
Overall Depth	65mm
Probe Voltage	12V

Key Features

Fully automatic operation enables simultaneous draining and filling with a single device.
Protects submersible pumps from dry running and prevents overfilling of tanks.
Corrosion and shock resistant sensors ensure reliable and durable performance.
Adjustable sensitivity from 1k to 200k Ohm adapts to various liquid conditions.
Adjustable reaction timer ranging from 0.1s to 10s for flexible response.
Includes a provision for manual start for ease of operation.
Screw type terminals and IP20/IP40 protection rating for secure installation.
Operating temperature range from -10°C to 60°C suitable for diverse environments.

Product Description

GIC 4411AD1 44 Series Level Controller is engineered for industrial and automation applications requiring precise liquid level management. Featuring a DIN Rail mount design and voltage input rated at 110V, this controller facilitates fully automatic operation encompassing both draining and filling tasks simultaneously.

The device efficiently protects submersible pumps by preventing dry running conditions and safeguards against overfilling, thus extending pump life and ensuring system integrity. It incorporates specially designed sensors that are resistant to corrosion and shock, ensuring long-term, trouble-free operation in harsh environments.

The level controller's sensitivity can be finely tuned from 1k Ohm up to 200k Ohm, accommodating different liquid characteristics, while the reaction timer adjusts from 0.1 to 10 seconds to suit specific process timing requirements. These features offer great flexibility in controlling liquid levels effectively.

The controller includes an option for manual start, adding convenience during setup or troubleshooting. It utilizes screw terminals for secure electrical connections and is rated IP20 and IP40 for protection against dust and contact hazards. Its operational temperature range from -10°C to 60°C makes it suitable for most industrial indoor environments.

Its compact form factor with dimensions of 90 mm length, 36 mm width, and 65 mm depth fits standard DIN rails, helping streamline installation in control panels.

This model delivers a current rating of 8 A suitable for various relay switching applications. Manufactured in India, the GIC 44 Series Level Controller is CE certified, meeting international standards for reliability and safety.

Fully automatic draining and filling with one device. Prevents dry running and overfilling of pumps and tanks. Corrosion and shock resistant sensor design. Manual start capability. Adjustable sensitivity from 1k to 200k Ohm.

Adjustable reaction timer 0.1s to 10s. Screw terminal type with IP20/IP40 rating. Operating temperature from -10°C to 60°C. Compact DIN rail mount dimensions. 8 A current rating with relay output.

Ideal for industrial automation, water treatment, HVAC systems, manufacturing processes, and laboratory equipment. Browse the Level Controllers category on EnvMart for similar precision measurement products.
