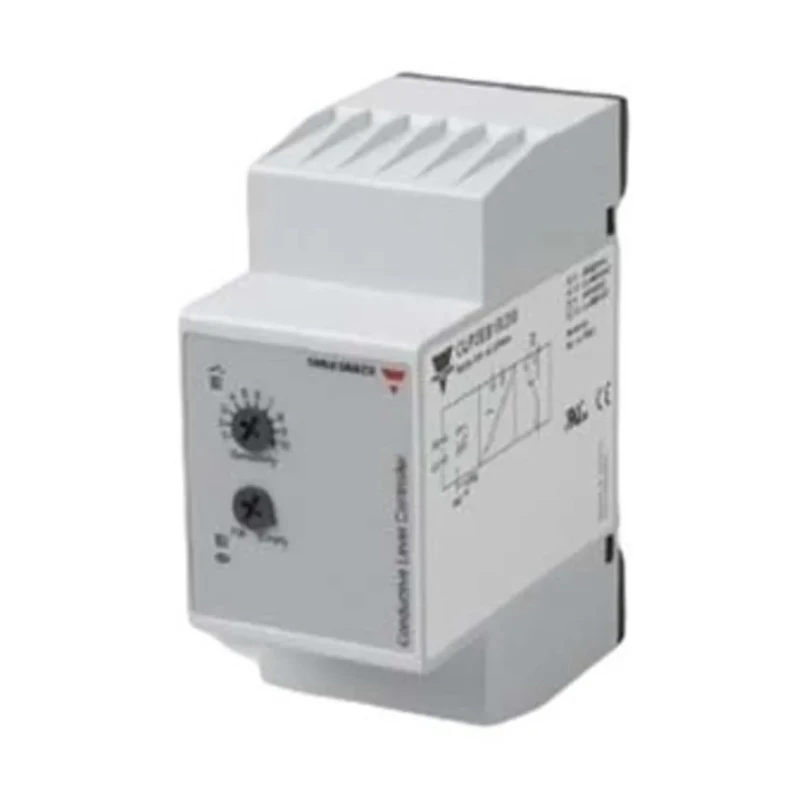

Carlo Gavazzi CLP Series Level Controller 24V DIN Rail Mount 2 Analogue Input 5V Probe Voltage 8A Relay CLP2EA1CM24

Carlo Gavazzi CLP2EA1CM24 level controller is a robust and precise liquid level controller designed for industrial applications requiring reliable detection of conductive liquids such as sewage, saltwater, and various chemicals. Operating at 24V AC/DC supply, it features two analogue inputs capable of continuous level sensing with adjustable sensitivity ranging from 250 ohms up to 500 kilo-ohms, allowing it to accommodate a wide variety of liquid conductivities.

Equipped with an 8A rated double-pole double-throw (DPDT) relay output, the controller supports effective control of pumps and alarms in liquid management systems. It includes a dedicated relay output for alarm signaling to indicate critical tank conditions such as dry-running or overflow, enhancing system safety and preventing damage.

The device is designed for easy DIN rail mounting with screw terminals, facilitating quick installation and maintenance in industrial control panels. LED indicators provide real-time visual feedback on power and relay output status for simplified monitoring.

Operating efficiently within a temperature range of -20°C to 50°C and protected to IP20 standards, this level controller ensures durability and reliable performance in typical industrial environments. The controller is UL and CSA certified, guaranteeing compliance with international safety and quality standards.

Common industrial applications include wastewater treatment plants, chemical processing, pump dry-run protection, leak detection, and media mixing ratio control. Its microprocessor-based design offers reliable and low-voltage operation, making it suitable for various commercial, manufacturing, and water treatment systems.

The compact size allows integration into space-constrained installations while providing advanced level sensing capabilities. The Carlo Gavazzi CLP2EA1CM24 is a trusted solution within the CLP series for precise liquid level control and monitoring.

Provides sensitive detection for a wide range of conductive liquids including sewage and chemicals. Includes two analogue inputs to measure continuous liquid levels. Features 8A rated relay outputs with DPDT configuration for control applications.

Easy DIN rail mounting and screw terminal connections enable straightforward installation. Adjustable sensitivity from 250Ω to 500 kΩ to accommodate varied liquid properties. LED indicators for power and output status improve operational clarity.

Separate alarm output signals tank dry-run or overflow conditions. Operates reliably within -20°C to 50°C temperature range. Compact design with IP20 protection rating suitable for industrial panels. Complies with UL and CSA standards ensuring quality and safety.

Explore the Carlo Gavazzi range of Level Controllers for advanced liquid monitoring in industrial, water treatment, and chemical processing applications at EnvMart.
