GIC 44 Series Level Controller DIN Rail Voltage Input 240V AC Rated Relay 4421AD1

Free Delivery in India | Lowest Global Shipping Charges

GIC 44 Series Level Controller DIN Rail Voltage Input 240V AC Rated Relay 4421AD1



Category Level Controllers Brand GIC Condition New

Specifications

Country of Origin	India
Voltage	Input 240V ac-Rated Relay RS Stock No
Brand	GIC
Response time	10s
Model	4421AD1
SENSITIVITY	200kΩ
IP Rating	IP40, IP20
Mount Type	DIN Rail
Overall Length	90mm
Current Rating	8A
Output type	Relay
Series	44
Overall Width	36mm
Input Type	Voltage
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-10°C
Terminal type	Screw
Standards/Approvals	CE, RoHS
Maximum Supply Voltage	240V ac
Overall Depth	65mm
Probe Voltage	12V

Key Features

Compatible with 12V probe voltage for precise level sensing.
Equipped with a DIN Rail mount for easy installation.
Features a response time of 10 seconds for timely relay operation.
Supports operation within -10°C to 60°C temperature range.
Includes screw terminal type for secure wiring connections.
Operates on a maximum supply voltage of 240V AC with an 8A current rating.
Relay output type ensures reliable switching of devices.
IP40 and IP20 ratings provide moderate protection against dust and moisture.

Product Description

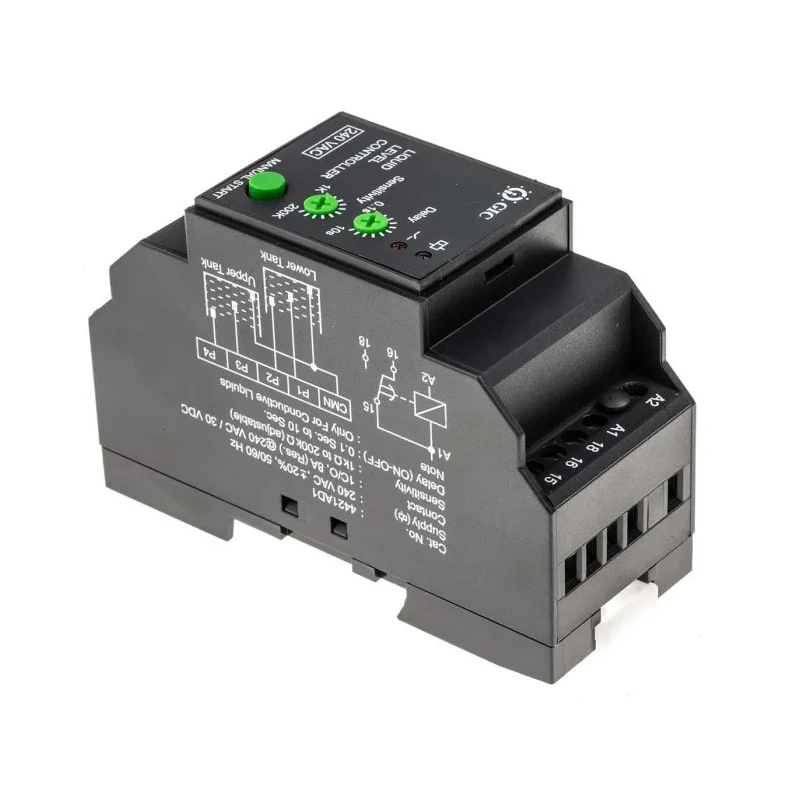

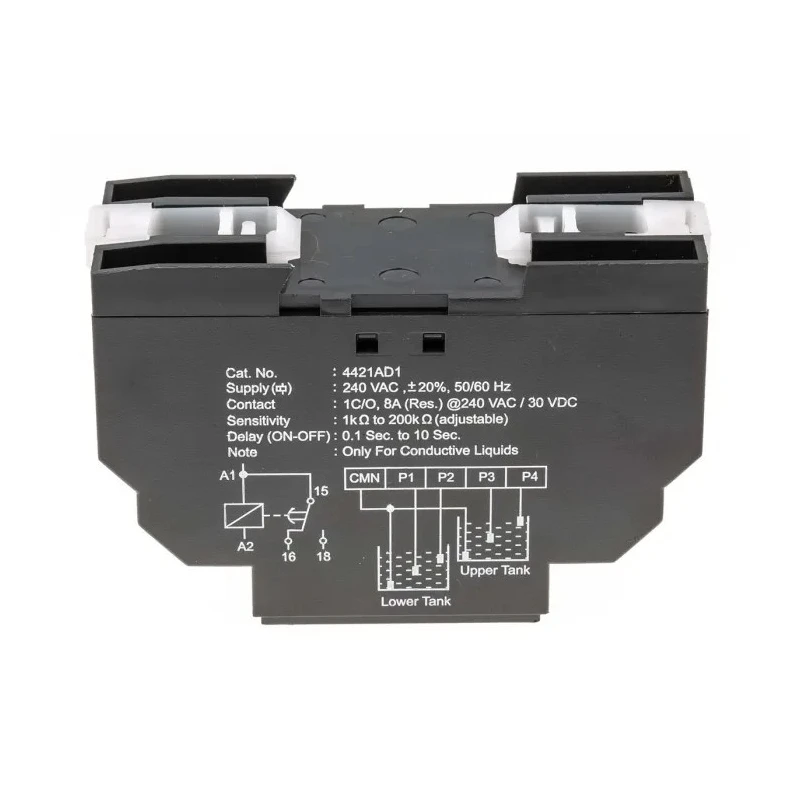

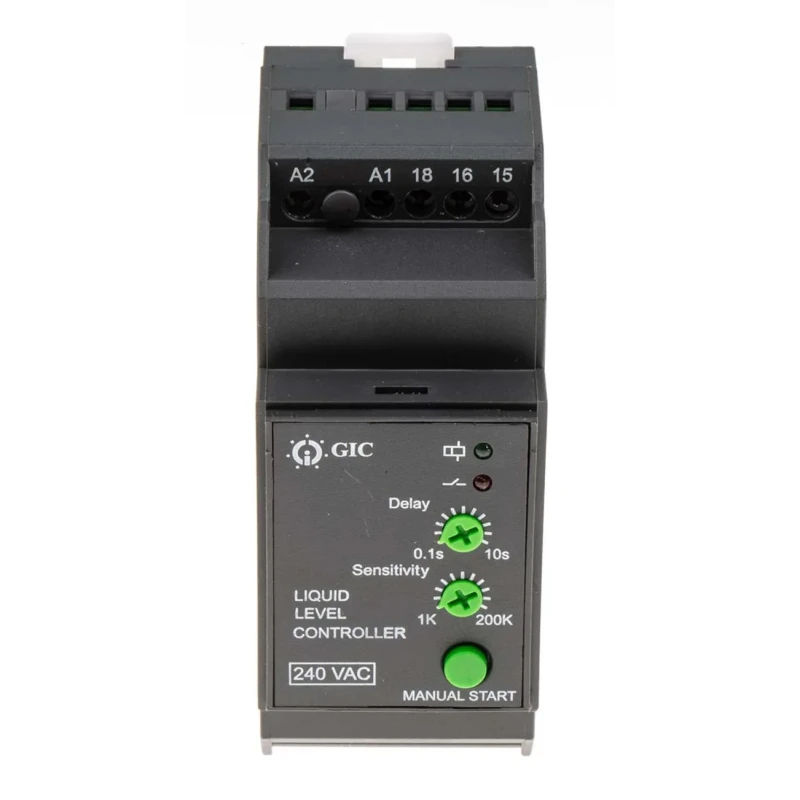

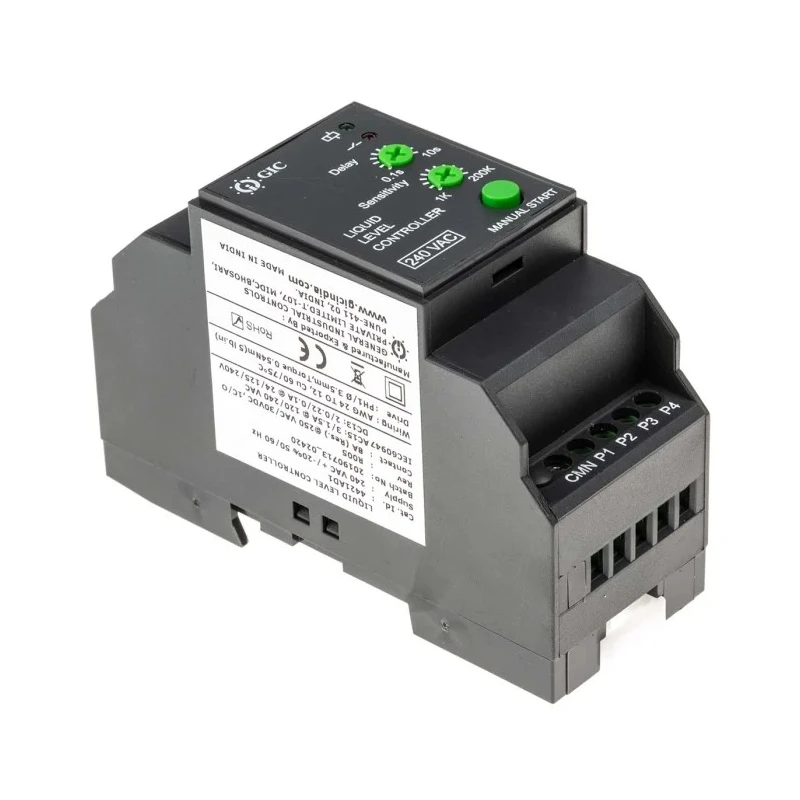

GIC 4421AD1 44 Series Level Controller is a high-performance liquid level detection device designed for application in tanks containing electrically conductive liquids. Mounted on a DIN Rail, this level controller operates with a 240V AC supply voltage and delivers reliable relay output control. It supports both filling and draining operations with customizable modes including single and dual-level monitoring, enhancing automated liquid management in industrial and commercial settings.

The device features an adjustable reaction timer ranging from 0.1 to 10 seconds, allowing for precise control over response time. Its corrosion and shock-resistant sensor design ensures durability and consistent performance even in harsh environments. The unit protects submersible pumps from dry running and prevents overfilling, maximizing pump lifespan and preventing damage.

This controller includes a manual start provision and adjustable sensitivity from 1kΩ to 200kΩ, accommodating different liquid conductivity characteristics. The rugged enclosure comes with an IP40, IP20 rating, suitable for industrial environments, and installation is streamlined via standard DIN Rail mounting. Screw terminals guarantee secure electrical connections.

Certification includes CE and RoHS compliance, along with adherence to IEC and UL standards such as IEC 61000 series and UL 508, ensuring safety and electromagnetic compatibility. This product is made in India and provides a dependable solution for water treatment, chemical processing, manufacturing, and other industrial liquid level applications.

Compatible with 12V probe voltage for accurate sensing. Mount type: DIN Rail ensures easy integration into existing control panels. Fast response time of 10 seconds for efficient liquid level management. Robust operation in temperature ranges from -10°C to 60°C.

Screw terminal wiring for reliable electrical connections. Supports an 8A current rating suitable for most control applications. Adjustable sensitivity levels enhance adaptability to various liquids. Protects pumps against damage through dry run and overfill prevention.

Certified to international standards for safety and performance. IP40 and IP20 enclosure ratings protect against environmental factors. Manufactured in India ensuring quality assurance and supply consistency. Explore more industrial sensors and Level Controllers at EnvMart to optimize your automation systems with trusted, certified equipment.
