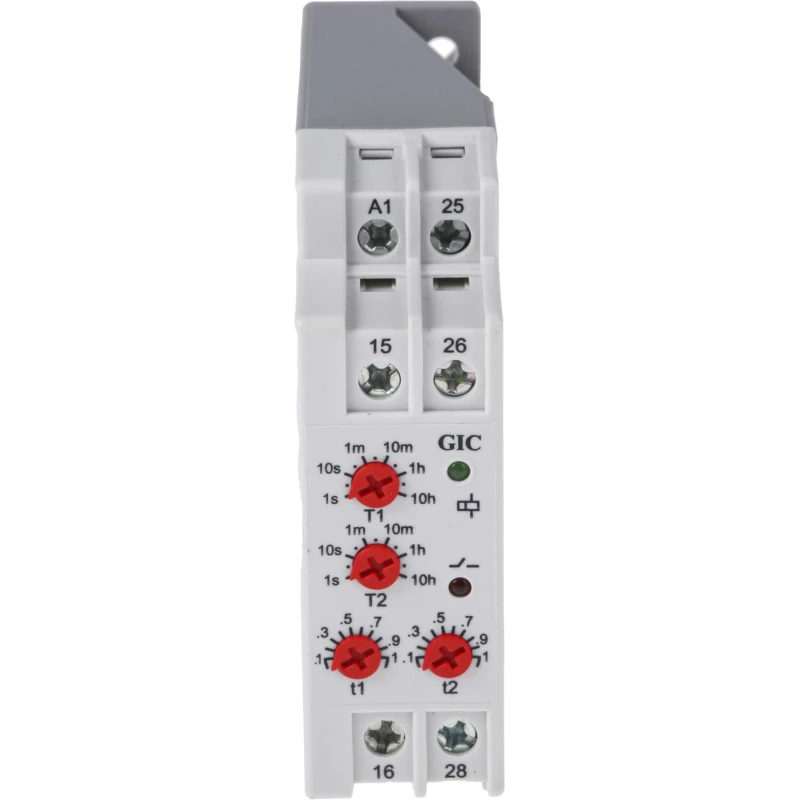

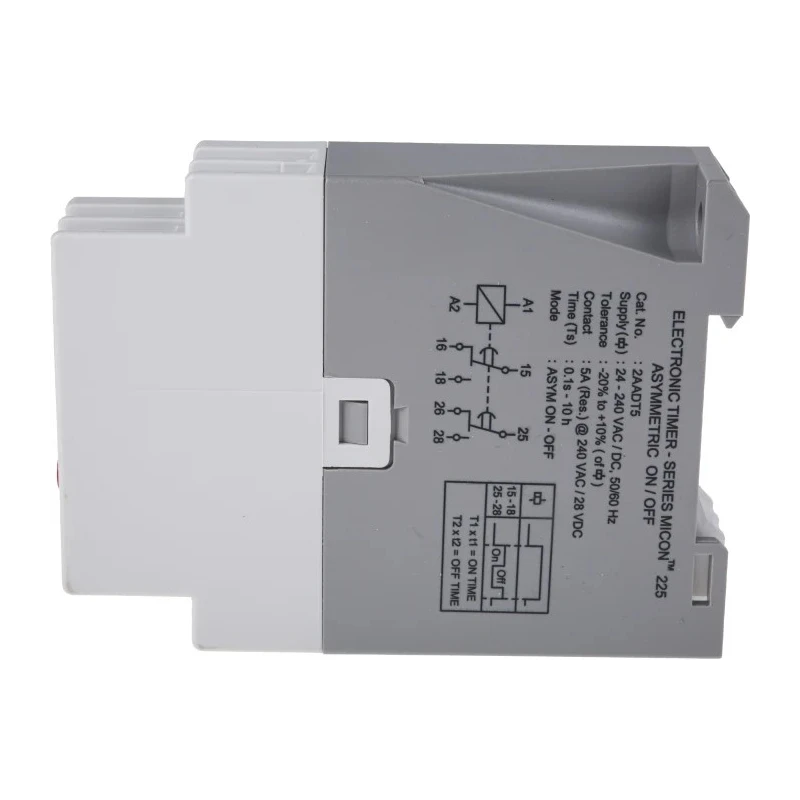

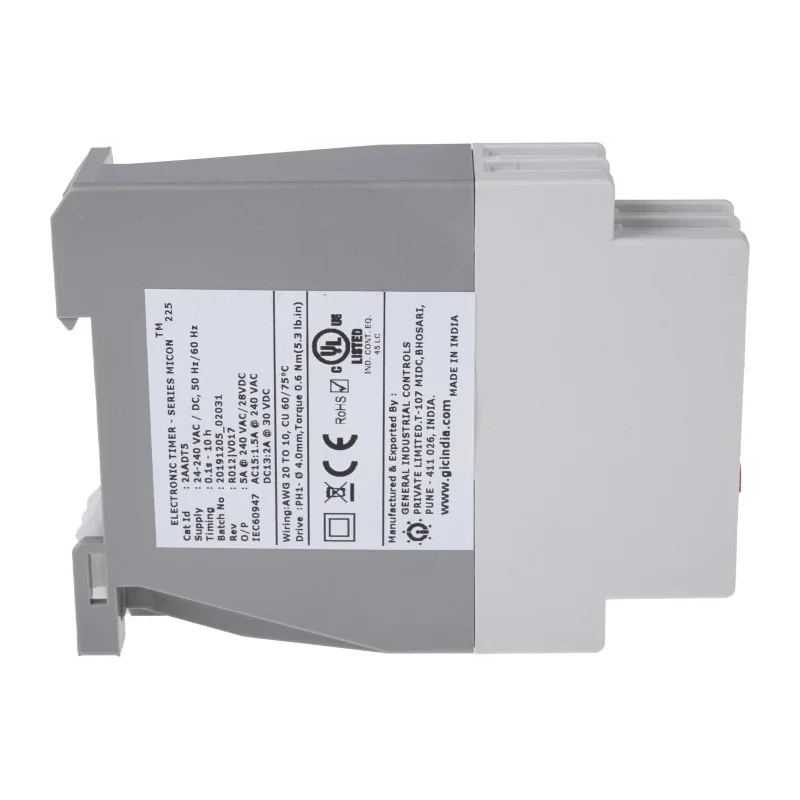

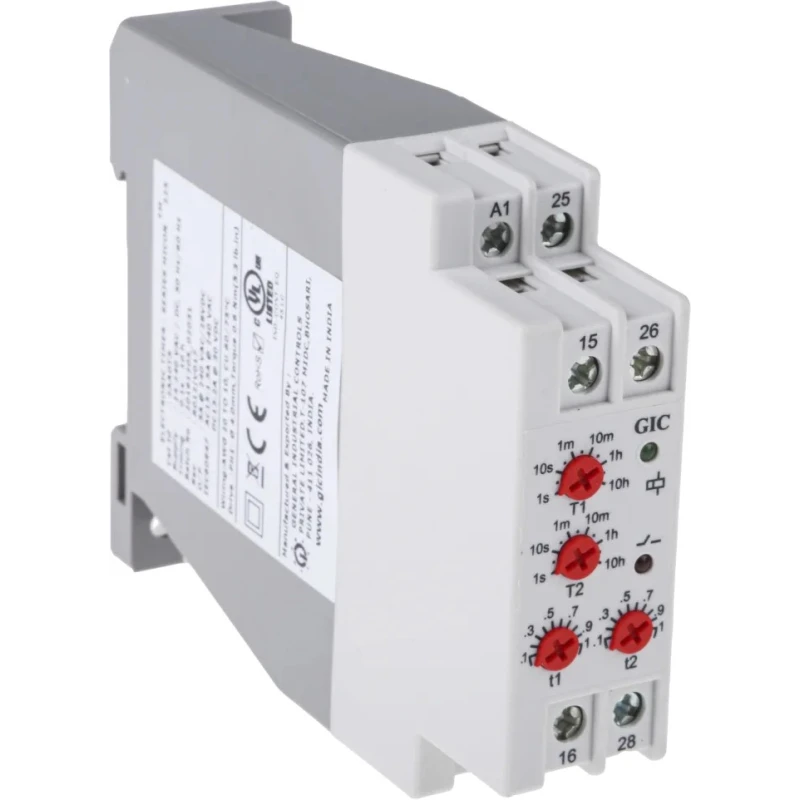

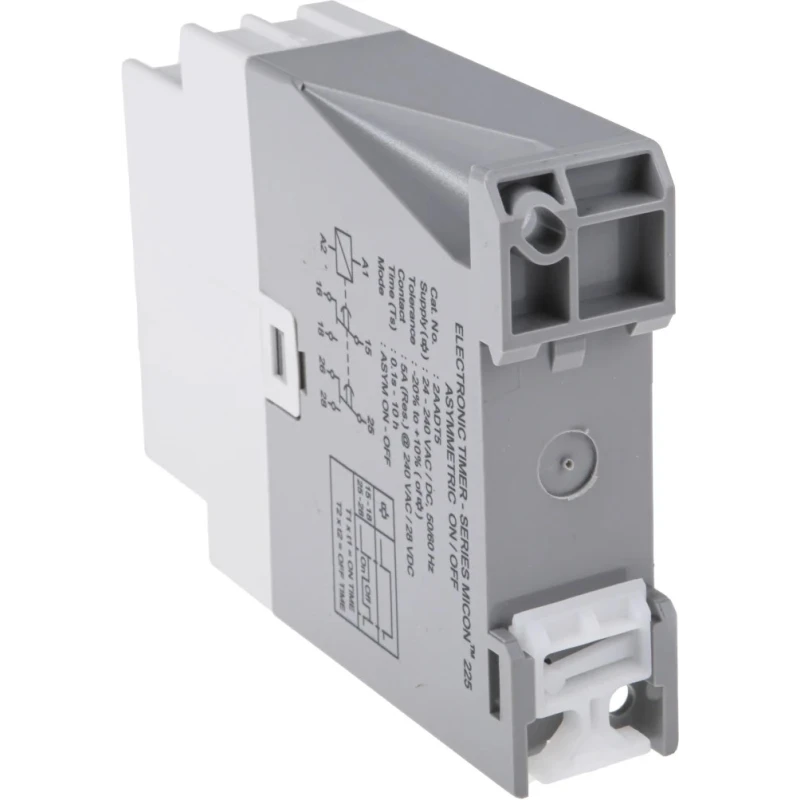

GIC 2AAD Series DIN Rail Timer Relay Multipurpose 2-Contact DPDT 240 V dc 24V ac 240 V ac 0.1 s to 10 h 2AADT5

The GIC 2AADT5 DIN Rail Timer Relay is a multifunctional timer relay specifically engineered for precision timing control in industrial automation and electrical applications. Featuring a double-pole double-throw (DPDT) 2-contact configuration, this device facilitates versatile switching capabilities necessary for complex control protocols.

With a broad supply voltage compatibility of 240 V dc and 24/240 V ac, the relay provides flexibility in diverse circuit environments. The time range adjustment from 0.1 seconds to 10 hours allows for precise timing settings tailored to your operational requirements. Its multifunction mode supports asymmetric ON-OFF and OFF-ON timing functions, enhancing customization and control.

The relay construction offers IP40 protection rating for the enclosure and IP20-rated terminals, ensuring reliable performance and safety in standard industrial conditions. The housing complies with UL94-V0 flame retardant standards for enhanced fire safety.

Adjustments are facilitated by a screwdriver slot, making configuration straightforward and efficient. The contact current capacity of 5A supports moderate load switching, suitable for signal and non-signal applications. Operating temperature ranges from -10°C to 60°C, making this relay appropriate for a variety of industrial environments.

Compact and space-saving, the relay measures 100.5mm in height, 75mm in length, and 22.5mm in width, making it an ideal fit for DIN rail mounting in control cabinets. The use of screw terminals ensures secure and stable electrical connections.

Operates from 240 V dc and 24/240 V ac supply voltages. Multifunction timer with 0.1 s to 10 h range for versatile control. DPDT 2-contact configuration for flexible switching. IP40 enclosure rating and UL94-V0 flame retardant housing.

Screwdriver timing adjustment and screw terminal connections. Contact current rating 5A suitable for multiple applications. Compact DIN rail mount design with dimensions 100.5mm x 75mm x 22.5mm. Operating temperature range -10°C to 60°C for reliable performance.

RoHS and CE compliant for quality assurance.

This timer relay is extensively used in automation, electrical control systems, industrial manufacturing processes, HVAC controls, and commercial electrical installations. Its multifunction capabilities and robust design provide reliable and efficient temporal control for a wide array of applications.

Experience precise timing management and enhanced control flexibility with the GIC 2AADT5 DIN Rail Timer Relay for your industrial or commercial automation needs. Discover more quality Timer Relays and electrical control products in the Electronics & Electricals category at EnvMart.
