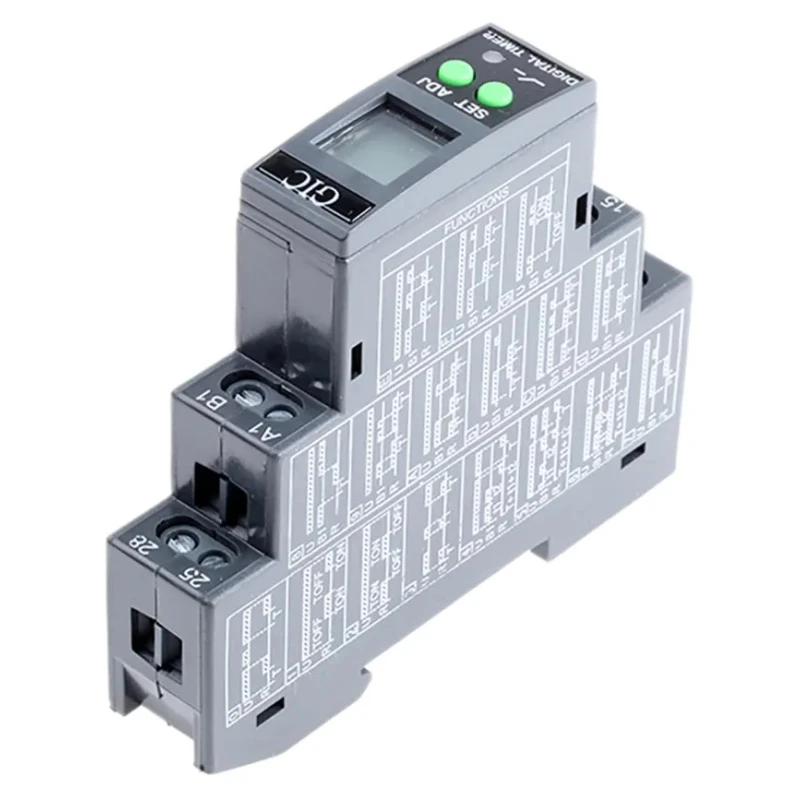

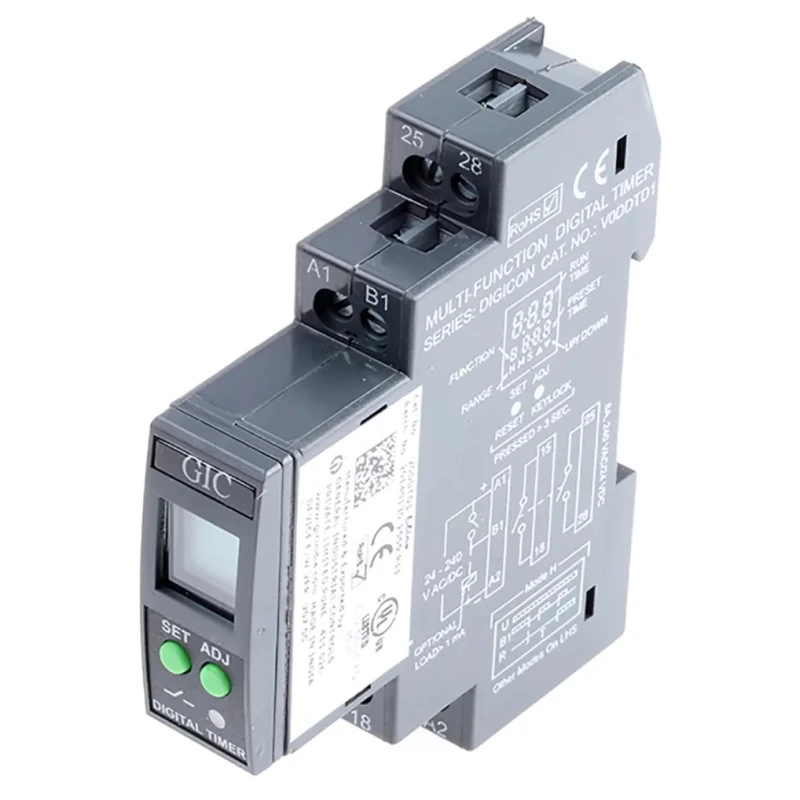

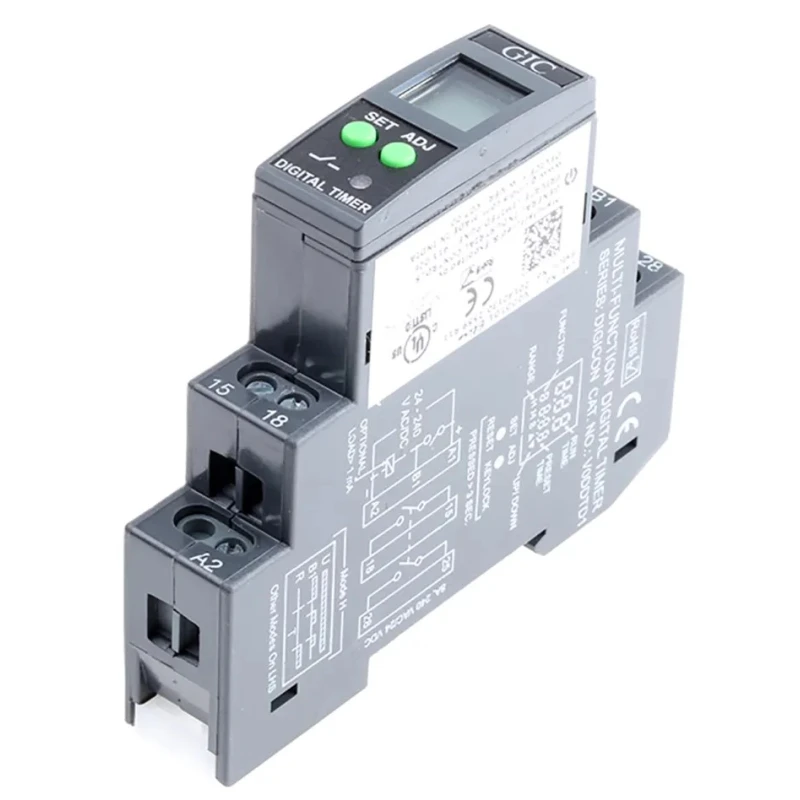

GIC DIGICON Series DIN Rail Timer Relay 1-Contact 24 to 240 V dc 24V ac 240 V ac 0.1 s to 999 h V0DDTD1

The GIC V0DDTD1 DIGICON Series DIN Rail Timer Relay is engineered for precise timing control in industrial automation and electrical systems. This multifunction timer relay supports a wide voltage range including 24 to 240 V dc, 24 V ac, and 240 V ac supplies, with flexible timing from 0.1 seconds up to 999 hours, making it suitable for varied applications.

The device features a 1-contact SPDT configuration rated at 8 amperes, ideal for switching loads with reliability and safety. Mounting is designed for standard DIN rail installation with secure screw terminal connections ensuring robust electrical contact.

Equipped with a 3-digit LCD display, the relay allows easy setting and real-time monitoring of preset and elapsed time, complemented by bright LED indicators that signal relay status clearly. The polar timing adjustment and multifunction modes offer versatility including offset double ring end and signal off delay functions.

This timer relay operates efficiently within a temperature range from -10°C to 55°C, supporting use in a broad range of environments in industrial, manufacturing, HVAC, and electrical distribution applications.

With compliance to international standards such as IEC 61000-4-29, IEC 61000-4-5 Level IV, IEC 60068-2-6 among others, and RoHS certification, the GIC DIGICON Series ensures high performance, safety, and environmental friendliness.

This multifunction timer relay covers a timing range from 0.1 seconds to 999 hours. Supports supply voltages of 24 to 240 V dc, 24 V ac, and 240 V ac. 1-contact SPDT relay rated for 8A contact current. Designed for DIN rail mounting with screw terminal connections.

Features tamper-proof key lock and polar timing adjustments for versatile operation. 3-digit LCD display provides clear timing information. LED indicators offer clear relay status information. Operates between -10°C and 55°C temperature range.

Complies with multiple IEC standards and RoHS certification. Compact size: Height 76 mm, Width 17.5 mm, Length 89 mm.

Ideal for industrial automation systems, control panels, manufacturing lines, and electrical installations requiring reliable timing control. Explore the GIC DIGICON series for robust timer relay solutions at EnvMart.
