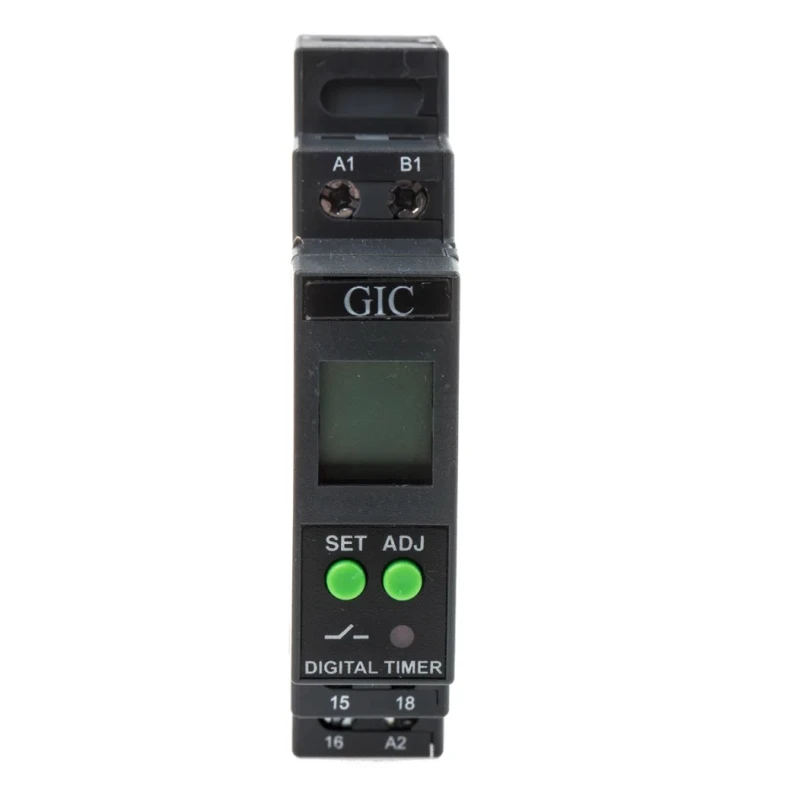

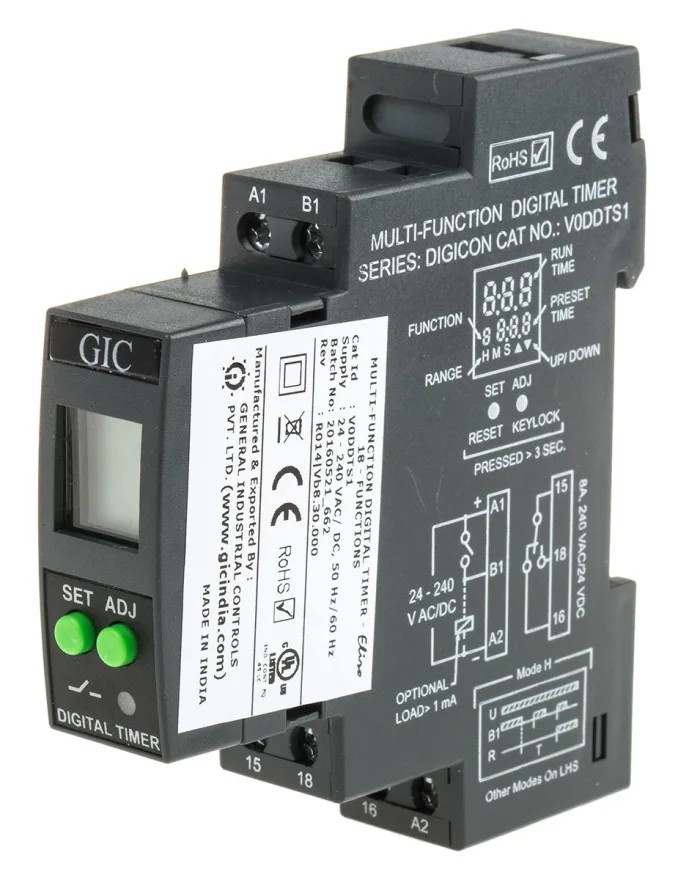

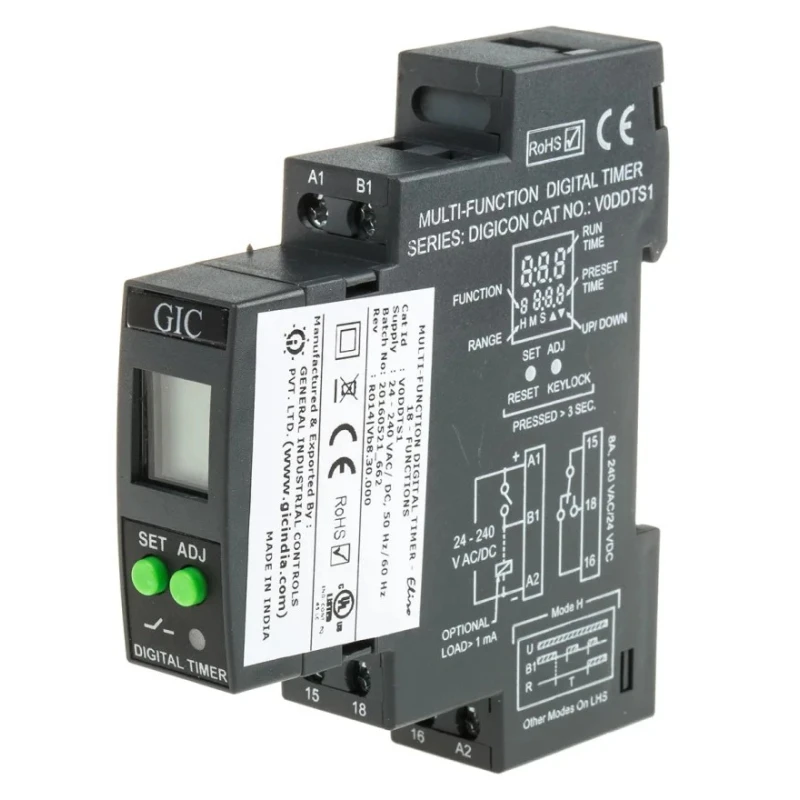

GIC Multifunction DIN Rail Timer Relay 1-Contact 240 V dc 24 V ac 240 V ac 0.1 s to 999 h V0DDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | GIC |
| Height | 76mm |
| Function | Multifunction |
| Length | 89mm |
| Model | V0DDT |
| IP Rating | IP20, IP30 |
| Mode | Multifunction |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | V0DDT |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.1 s to 999 h |
| Terminal type | Screw |
| Number of Contacts | 1 |
| Number of Timer Functions | Multifunction |
| Switching Voltage | 240V ac/dc |
| Contact Current | 8A |
| Supply DC Voltage | 240 V dc |
| Timing Adjustment | Polar |
| Supply AC Voltage | 24, 240V ac |
Key Features
- Compact digital relay offering high precision timing control.
- Operates with supply voltage from 24 V AC/DC up to 240 V AC/DC.
- Single pole double throw (SPDT) contact configuration rated at 8A.
- Features 17 selectable timing functions for versatile applications.
- 3 digit LCD displays preset and running time for ease of monitoring.
- Includes tamper-proof key lock function to secure settings.
- Suitable for industrial, chemical, mining, and process control environments.
- Designed with self-extinguishing housing providing IP20 terminal and IP30 enclosure protection.
Product Description
GIC V0DDT multifunction DIN Rail timer relay is a compact, high-precision digital device designed for diverse timing control applications. It supports timing ranges from 0.1 seconds up to 999 hours, enabling flexible delay options tailored to your process needs.
The relay offers a wide supply voltage range from 24 V DC/AC to 240 V AC/DC, allowing installation in new or existing systems with ease. Featuring a single pole double throw (SPDT) contact rated at 8A, it delivers reliable switching performance.

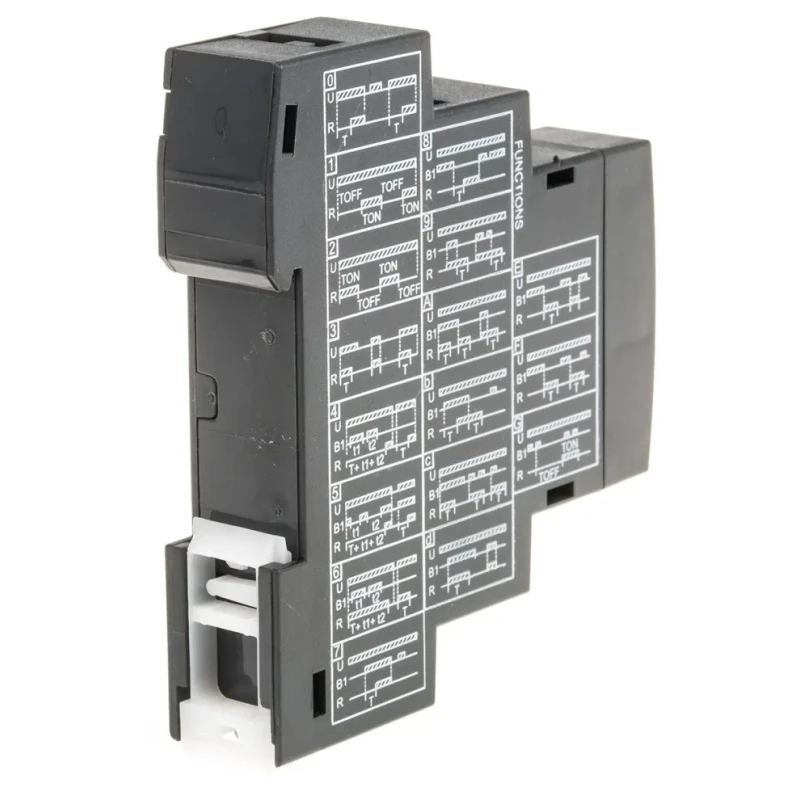

Equipped with 17 selectable timing functions - including cyclic off/on, cyclic on/off, interval, ON delay, and one-shot output - this multifunction timer relay covers a broad array of automation and process control requirements.
The front panel includes a 3-digit LCD to display preset and runtime values, enhancing usability. For security, the device has a tamper-proof key lock feature to prevent unauthorized adjustments. Settings are efficiently managed using only two keys.
Constructed with a self-extinguishing housing, the relay provides IP20 protection at terminals and IP30 for the enclosure, suitable for industrial and chemical applications. It operates reliably within a temperature range of -10°C to 55°C.
Compact size of 89 mm length, 17.5 mm width, and 76 mm height enables space-efficient mounting on DIN rails. Wide application in textiles, chemical industries, mining, irrigation, raw material handling, food and beverage, and industrial process control.
Certified to IEC 61000 series standards and RoHS compliant for safety and electromagnetic compatibility. Clear LED indication shows relay status at a glance ensuring operational monitoring. Manufactured in India, ensuring quality and reliability.
For advanced automation needs, the GIC V0DDT timer relay delivers multifunctional timing with dependable performance in a compact DIN rail form factor. Explore more Timer Relays and related products in the Electronics & Electricals section on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The GIC V0DDT timer relay has a timing range from 0.1 seconds to 999 hours, allowing for flexible delay options tailored to various applications.
This timer relay operates with a supply voltage range from 24 V AC/DC to 240 V AC/DC, making it suitable for different systems.
The GIC V0DDT features a single pole double throw (SPDT) contact configuration rated at 8A.
The GIC V0DDT is designed for DIN rail mounting, which allows for space-efficient installation in electrical cabinets.
The dimensions of this model are 89 mm in length, 17.5 mm in width, and 76 mm in height.
The maximum operating temperature for the GIC V0DDT is 55°C, ensuring reliable performance in various environments.
This timer relay is suitable for applications in industrial, chemical, mining, textiles, irrigation, food and beverage, and process control environments.
Yes, it includes a tamper-proof key lock function to secure settings and prevent unauthorized adjustments.
The timer relay has an IP20 rating for terminals and an IP30 rating for the enclosure, providing adequate protection in various environments.
The GIC V0DDT offers 17 selectable timing functions, including cyclic off/on, cyclic on/off, interval, ON delay, and one-shot output.
It features a 3-digit LCD that displays both preset and running time, enhancing usability and monitoring.
The GIC V0DDT timer relay is manufactured in India, ensuring quality and reliability in its construction.
