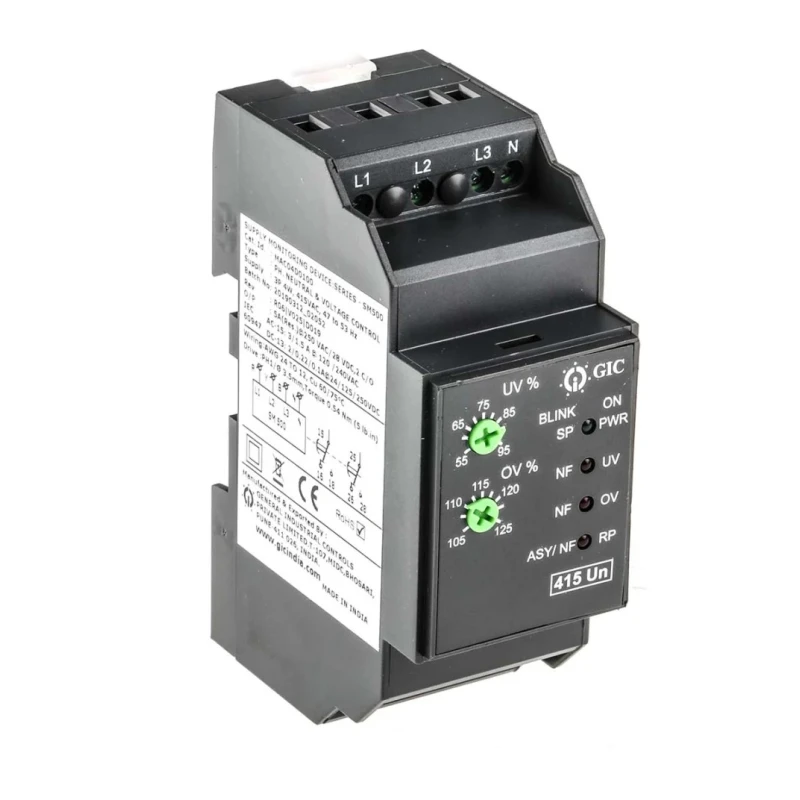

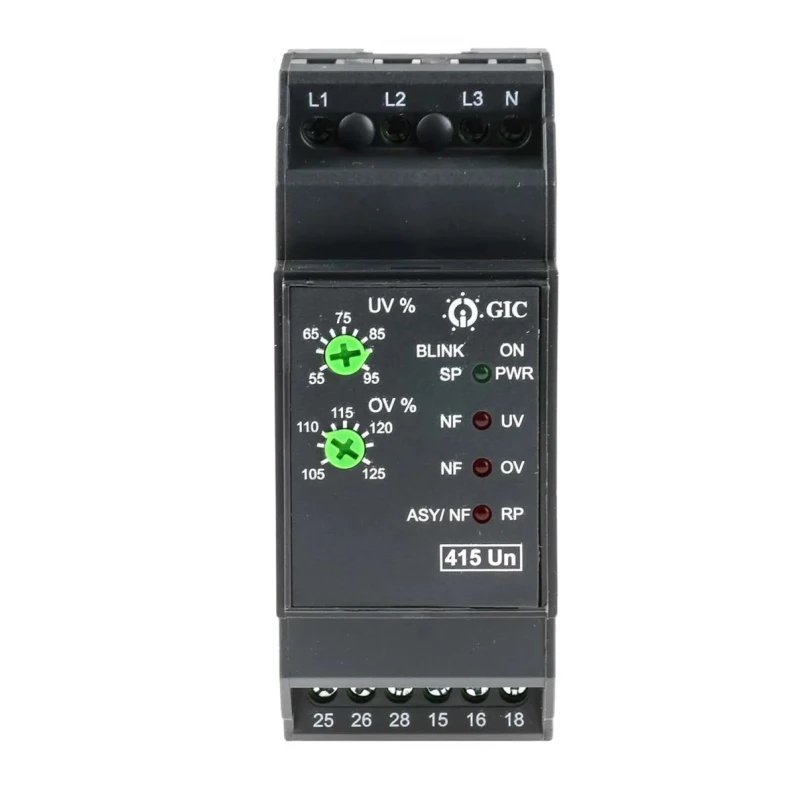

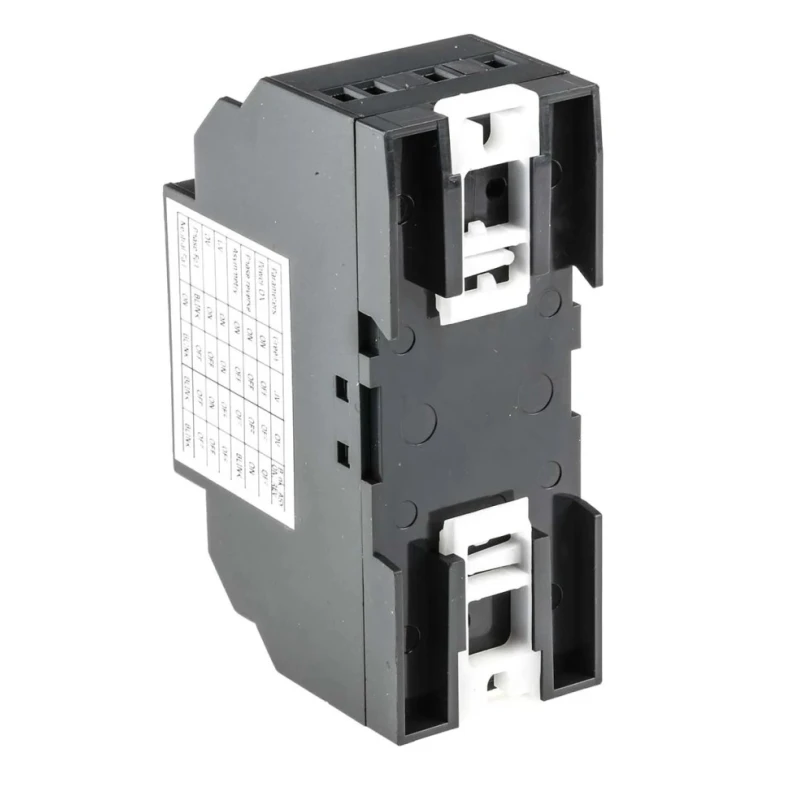

GIC Monitoring Relay 3 Phase Undervoltage DPDT Contact 415V AC 28V DC DIN Rail Base MAC04D0100

Free Delivery in India | Lowest Global Shipping Charges

GIC Monitoring Relay 3 Phase Undervoltage DPDT Contact 415V AC 28V DC DIN Rail Base MAC04D0100



Category Monitoring Relays Brand GIC Condition New

Specifications

Country of Origin	India
Brand	GIC
Height	90mm
Function	Undervoltage Monitoring
Length	30mm
Model	MAC04D0100
IP Rating	IP40, IP20
Width	60mm
Mount Type	DIN Rail, Base
Series	SM 500
Maximum Operating Temperature	60°C
Contact Configuration	DPDT
Minimum Operating Temperature	+60°C
Terminal type	Screw
Electrical Phase	3
Standards/Approvals	RoHS, CE, IEC
Contact Current	5A
Supply DC Voltage	28 V dc
Supply AC Voltage	415V ac

Key Features

Supports phase failure and neutral loss detection for reliable monitoring.
Features adjustable over and under voltage trip levels.
Includes LED indication for all failure conditions.
Automatic recovery after fault clearance improves operational reliability.
Compact dimensions of 60mm width, 90mm height, and 30mm length suit standard enclosures.
Operates on 415V AC supply voltage and 28V DC control voltage.
Screw terminal connections ensure secure wiring installation.
Contact current rating is 5A for reliable switching capacity.

Product Description

GIC MAC04D0100 is a robust monitoring relay specifically designed for three-phase undervoltage monitoring applications. Featuring DPDT contact configuration and DIN rail base mounting, it is ideal for electrical automation and control systems in industrial environments. The relay supports combined phase failure and neutral loss detection, ensuring comprehensive supply monitoring and protection.

This model supports adjustable trip levels for both overvoltage and undervoltage conditions, allowing precise adaptation to application requirements. LED indicators provide clear visibility of all fault conditions, facilitating quick diagnostics and maintenance. The device automatically recovers upon fault removal, minimizing downtime.

Constructed to meet RoHS, CE, and IEC standards, the relay offers a reliable 5A contact current rating at 415V AC supply voltage and a 28V DC control voltage. Its compact size (60mm x 90mm x 30mm) allows integration into standard DIN rail enclosures with ease. The screw terminal type ensures secure and convenient wiring, while an IP40 and IP20 rating provides suitable protection against dust and touch.

Typical use cases include industrial electrical panels, automation systems, HVAC equipment, and manufacturing processes requiring reliable phase and voltage monitoring. The device’s sturdy design and standardized mounting make it suitable for harsh industrial environments, production monitoring, and compliance with safety norms.

This GIC monitoring relay is manufactured in India and delivered new, ensuring high-quality performance and long operational life. It is part of the SM 500 series known for dependable operation under challenging electrical conditions.

Supports phase failure and neutral loss detection for reliable monitoring. Adjustable over and under voltage trip levels for precise protection. LED indication for all fault conditions enhances diagnostics. Automatic recovery on fault removal reduces downtime.

Compact 60mm x 90mm x 30mm dimensions fit standard DIN rail systems. Operates at 415V AC supply voltage and 28V DC control voltage. Screw terminal type provides secure electrical connections. 5A contact current rating suitable for most control applications.

Operating temperature range from -60°C to 60°C supports varied environments. Complies with RoHS, CE, IEC standards for quality assurance.

For those seeking effective electrical supply monitoring in industrial, manufacturing, or automation settings, the GIC MAC04D0100 monitoring relay offers reliability and ease of use. Explore additional Monitoring Relays in the same category for broader applications at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model operates on a supply voltage of 415V AC and a control voltage of 28V DC.

The contact current rating for this unit is 5A, making it suitable for various control applications.

It has compact dimensions of 60mm in width, 90mm in height, and 30mm in length, allowing for easy integration into standard DIN rail systems.

This monitoring relay complies with RoHS, CE, and IEC standards, ensuring quality and safety.

It is designed for DIN rail mounting, which is common in industrial electrical applications.

It supports phase failure and neutral loss detection, along with adjustable over and under voltage trip levels for precise monitoring.

The operating temperature range is from -60°C to 60°C, accommodating various environmental conditions.

It utilizes screw terminal connections, ensuring secure and reliable wiring installations.

Yes, it includes LED indicators that provide clear visibility of all fault conditions, facilitating quick diagnostics.

The contact configuration is DPDT (Double Pole Double Throw), which is suitable for various control tasks.

This model is part of the SM 500 series, known for its robust performance in electrical monitoring applications.

It is typically used in industrial electrical panels, automation systems, HVAC equipment, and manufacturing processes requiring reliable phase and voltage monitoring.
