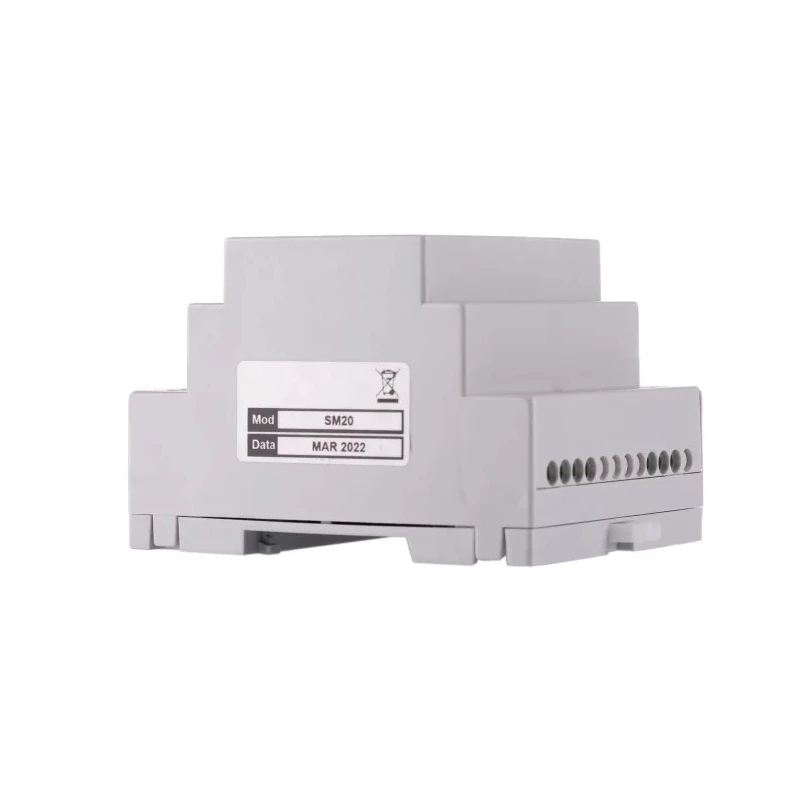

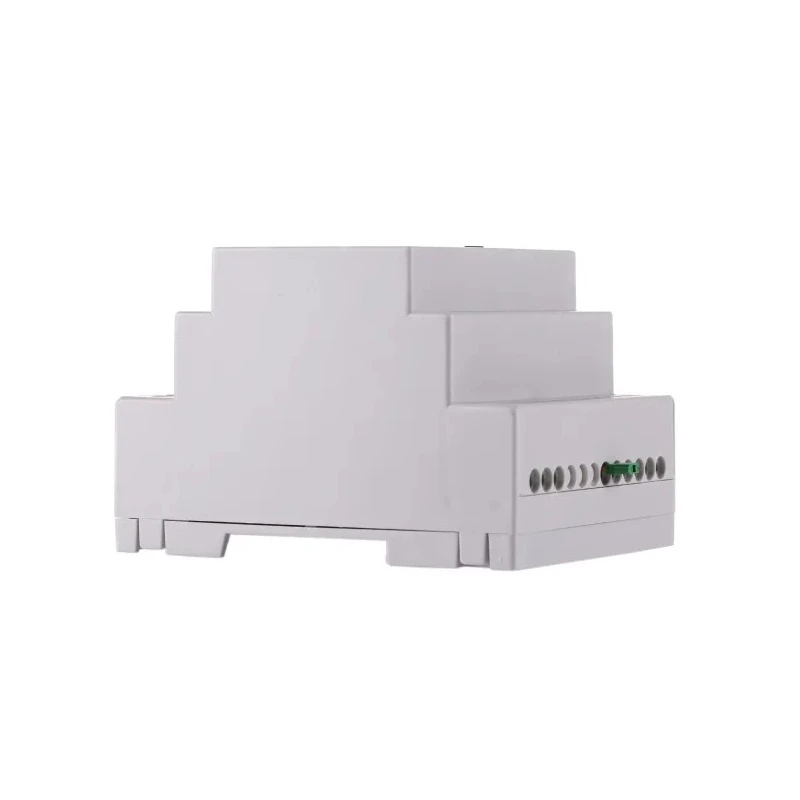

Cynergy3 SM20 Series Level Controller DIN Rail Mount with 3 Voltage Inputs 240V-Rated Relay SM20
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | Input 240V-Rated Relay RS Stock No |
| Brand | Cynergy3 |
| Model | SM20 |
| Mount Type | DIN Rail |
| Overall Length | 53mm |
| Current Rating | 20A |
| Number of inputs | 3 |
| Output type | Relay |
| Series | SM20 |
| Overall Width | 53mm |
| Input Type | Voltage |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Number of outputs | 2 |
| Maximum Supply Voltage | 240V |
| Overall Depth | 90mm |
| Probe Voltage | 12V ac |
Key Features
- Equipped with 3 input sensors for versatile liquid level control.
- Features 2 SPCO relay outputs with a 20A current rating.
- Probe voltage is 12V AC, ideal for process monitoring.
- Operates within a temperature range of 0°C to 50°C for varied environments.
- Compact design with overall dimensions of 53mm width, 53mm length, and 90mm depth.
- Suitable for controlling pumps and solenoid valves using level switches.
- DIN rail mounting enables quick and tool-free installation.
- Primary output can drive motors up to 2HP with 560W switching capacity.
Product Description
Cynergy3 SM20 Series Level Controller is a high-performance liquid level monitoring device engineered for industrial process control. With 3 voltage inputs and 2 SPCO relay outputs rated at 20A, it ensures reliable switching for motors and pumps. It is designed for convenient DIN rail mounting with compact dimensions of 53mm width, 53mm length, and 90mm depth.
The controller accepts 12V AC probe voltage sensors and operates effectively within a wide temperature range of 0°C to 50°C, making it suitable for harsh environments such as agricultural tanks and rainwater harvesting systems. Its primary output supports a powerful 240V relay capable of driving motors up to 2HP (560W switching capacity), enabling automated pump control for filling and emptying applications.

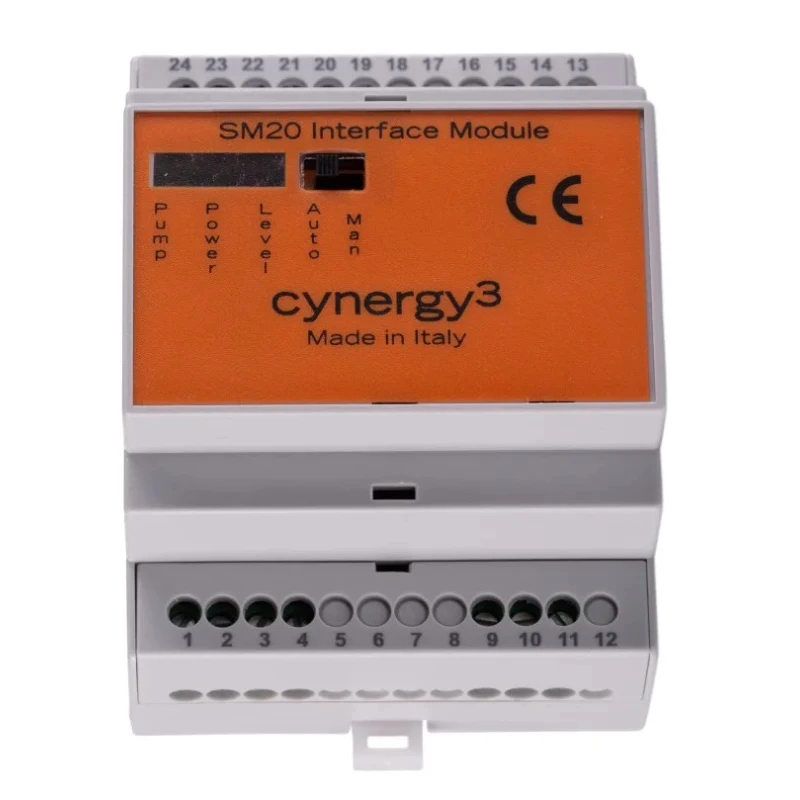

LED indicators provide clear feedback on liquid levels, power status, and output activity, facilitating easy monitoring. This level controller can also be employed as dry-running protection in conjunction with compatible pressure switches or level control switches, helping prevent damage from liquid-free operation.
Manufactured in Italy, the SM20 controller offers robust performance and durability. Its versatile features make it an excellent choice for industrial, agricultural, water treatment, and commercial liquid level monitoring applications. The DIN rail mounting system supports quick, tool-free installation, optimizing maintenance and setup times.
Equipped with 3 input sensors for versatile liquid level control. Features 2 SPCO relay outputs with a 20A current rating. Probe voltage is 12V AC, ideal for process monitoring. Operates within a temperature range of 0°C to 50°C for varied environments.
Compact design with overall dimensions of 53mm width, 53mm length, and 90mm depth. Suitable for controlling pumps and solenoid valves using level switches. DIN rail mounting enables quick and tool-free installation. Primary output can drive motors up to 2HP with 560W switching capacity.
Clear LED status indication for liquid level, power, and output. Manufactured in Italy ensuring reliable product quality. Explore more from Cynergy3 and other quality industrial Level Controllers at EnvMart for your automated liquid management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Cynergy3 SM20 Series Level Controller features a current rating of 20A, making it suitable for various industrial applications.
This model has a maximum supply voltage of 240V, which is essential for its relay output functionality.
It operates effectively within a temperature range of 0°C to 50°C, allowing it to function in diverse environments.
It is equipped with 3 voltage inputs, providing versatility in liquid level control applications.
This unit utilizes DIN rail mounting, which allows for quick and tool-free installation.
The controller requires a probe voltage of 12V AC, which is suitable for process monitoring.
The overall dimensions are 53mm in width, 53mm in length, and 90mm in depth, making it compact for installation.
It features 2 SPCO relay outputs, which are essential for controlling motors and pumps.
The primary output can drive motors up to 2HP with a switching capacity of 560W.
It is suitable for controlling pumps and solenoid valves in applications such as agricultural tanks and rainwater harvesting systems.
This level controller is manufactured in Italy, ensuring a certain level of product quality.
It includes LED indicators that provide clear feedback on liquid levels, power status, and output activity for easy monitoring.
