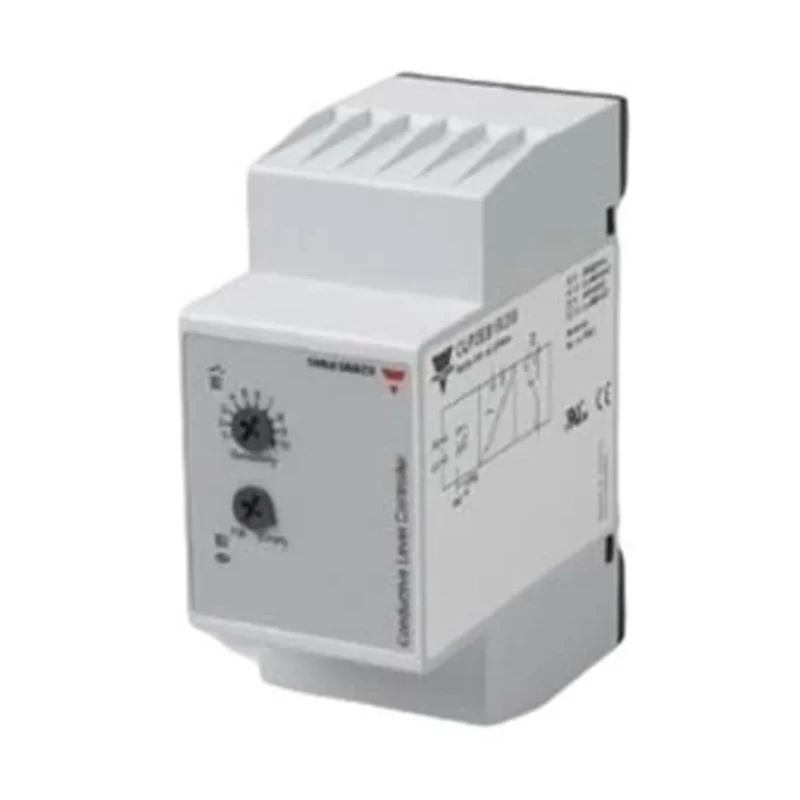

Carlo Gavazzi CLP Series Conductive Level Controller DIN Rail Mount 2 Analogue Inputs 24V Rated Relay CLP2EA1C115
Specifications
| Country of Origin | Lithuania |
|---|---|
| Brand | Carlo Gavazzi |
| Response time | 5s |
| Model | CLP2EA1C115 |
| SENSITIVITY | 500kΩ |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Current Rating | 8A |
| Number of inputs | 2 |
| Output type | Relay |
| Series | CLP |
| Input Type | Analogue |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 5 |
| Terminal type | Screw |
| Standards/Approvals | UL |
| Maximum Supply Voltage | 24V |
| Probe Voltage | 5V |
| LED indication for | Output ON and Power ON |
Key Features
- Suitable for conductive liquids including sewage, chemicals, and salt water.
- Equipped with 2 analogue inputs and 5 relay outputs.
- Low-voltage AC electrodes with adjustable sensitivity.
- LED indicators for output and power status.
- Robust DIN rail mount design with screw terminal connections.
- Wide operating temperature range from -20°C to 50°C.
- IP20 rated enclosure ensuring protected internal electronics.
- Compliance with UL safety standards for reliable operation.
Product Description
Carlo Gavazzi CLP2EA1C115 level controller is a microprocessor-based conductive liquid level monitoring device with 2 analogue inputs and DIN rail mounting. It offers a 24V rated relay output capable of switching 8A and is ideal for applications in industrial, water treatment, and process control environments requiring accurate liquid level management.
This controller supports a wide range of liquid types such as sewage water, corrosive and chemical liquids, and salt water by utilizing low-voltage AC electrodes with adjustable sensitivity allowing adaptability to varying liquid conductivities.
The device includes 5 relay outputs, featuring SPDT configuration rated at 8A/250VAC, with dedicated outputs for alarm conditions to indicate dry running or tank overflow, enhancing safety and process reliability.
LED indicators provide clear visual confirmation of power and output status for easy installation and monitoring. The DIN rail mounting and screw terminals enable secure and professional electrical connections and installation.
Operating temperature range from -20°C up to 50°C and IP20 protection class make this product suitable for many industrial environments. Carlo Gavazzi’s product fully complies with UL standards for safety and quality assurance.
Typical applications include wastewater management, chemical processing, pump protection against dry run, liquid leak detection, media mixing control, and industrial liquid level monitoring systems.
Suitable for conductive liquids including sewage, chemicals, and salt water. Equipped with 2 analogue inputs and 5 relay outputs. Low-voltage AC electrodes with adjustable sensitivity. LED indicators for output and power status.
Robust DIN rail mount design with screw terminal connections. Wide operating temperature range from -20°C to 50°C. IP20 rated enclosure ensuring protected internal electronics. Compliance with UL safety standards for reliable operation.
Provides alarm output for dry run or overflow conditions. Manufactured in Lithuania ensuring high quality and precision. Explore more Level Controllers and measuring instruments from Carlo Gavazzi and other trusted brands at EnvMart for industrial automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 50°C.
This unit is equipped with 5 relay outputs.
It is suitable for conductive liquids including sewage, chemicals, and salt water.
The input type for this model is analogue, with 2 analogue inputs available.
The relay outputs are rated for a maximum current of 8A.
The response time for this level controller is 5 seconds.
The unit has an IP20 rating, ensuring protection for its internal electronics.
The minimum operating temperature for this model is -20°C.
It utilizes a DIN rail mounting type for easy installation.
It complies with UL safety standards for reliable operation.
The connections are screw terminals, allowing for secure electrical connections.
It operates on a maximum supply voltage of 24V.
