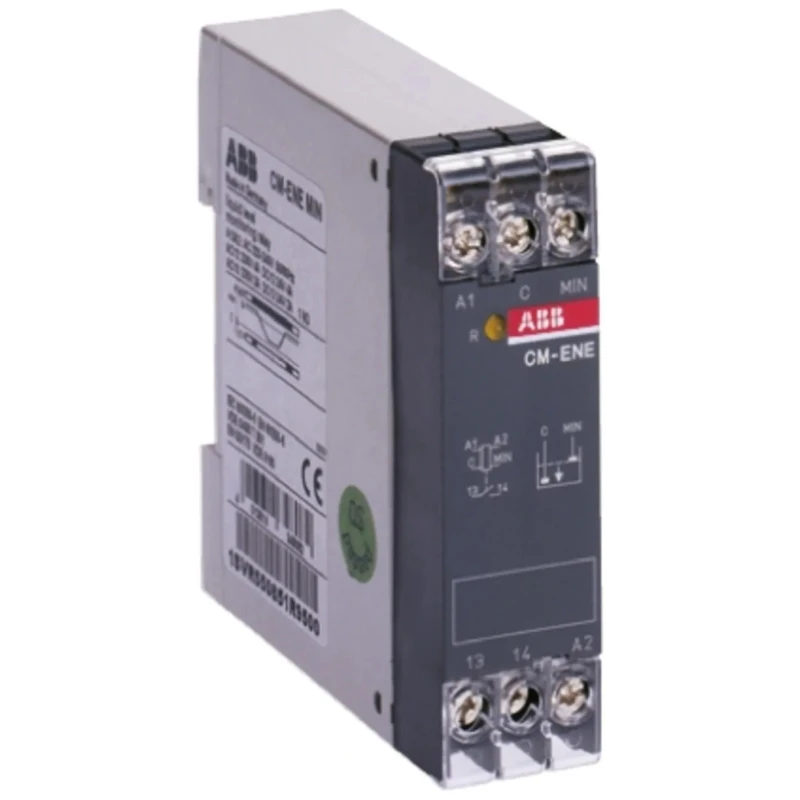

ABB Liquid Level Relay CM-ENE MIN 130V AC, 4A Current Rating, Snap-On Screw DIN Rail Mount 1SVR550850R9500 CM-ENE MIN



Category Level Controllers Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Model	1SVR550850R9500 CM-ENE MIN
SENSITIVITY	100kΩ
IP Rating	IP50, IP20
Mount Type	Snap-On, Screw, DIN Rail
Overall Length	88.5mm
Current Rating	4A
Output type	Relay
Series	CM-ENE MAX
Overall Width	22.5mm
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Number of outputs	5
Terminal type	Screw
Standards/Approvals	IEC
Maximum Supply Voltage	130V ac
Overall Depth	78mm
Probe Voltage	30V ac

Key Features

Monitors minimum liquid level in conductive liquid systems to prevent dry running.
Suitable for pumped control and overflow monitoring applications.
Equipped with relay output and five outputs for versatile control.
Operates reliably between -20°C and 60°C ambient temperature.
Has an IP rating of IP50 and IP20 for protection.
Terminal type is screw for secure electrical connections.
Compliant with IEC standards for safety and performance.
Features 100 kΩ sensitivity suitable for conductive liquid detection.

Product Description

ABB 1SVR550850R9500 CM-ENE MIN Liquid Level Relay is engineered to monitor minimum liquid levels in conductive liquids effectively. It is primarily used in pumped control systems and overflow detection to ensure system reliability by preventing dry running of pumps and maintaining optimum liquid levels.

This liquid level relay belongs to the CM-ENE MAX series and is designed for installation on DIN rails with a snap-on feature and screw mounting, ensuring secure and convenient setup in electrical panels. The device operates with a maximum supply voltage of 130V AC and a current rating of 4A, suitable for industrial and commercial liquid level control systems.

Designed to withstand operating temperatures from -20°C up to 60°C, the relay features IP50 and IP20 protection ratings, enhancing durability against environmental factors in typical industrial settings. The compact form factor with dimensions 88.5 mm length, 22.5 mm width, and 78 mm depth allows for efficient use of control panel space.

With a sensitivity of 100 kΩ, the relay reliably detects conductive liquids in various applications such as wastewater management, chemical processing, and pump protection systems. The screw terminal type ensures robust electrical connections to the control circuitry.

Monitors minimum liquid levels to protect pumps against dry running. Relay output with five outputs enables flexible control schemes. Snap-on and screw mounting facilitate quick and stable installation on DIN rails. IEC compliance guarantees adherence to international safety standards.

Suitable for controlling media mixing ratios and leak detection.

This liquid level relay is essential for industries requiring precise and reliable liquid level monitoring and control, including industrial automation, water treatment, HVAC, and manufacturing sectors.
