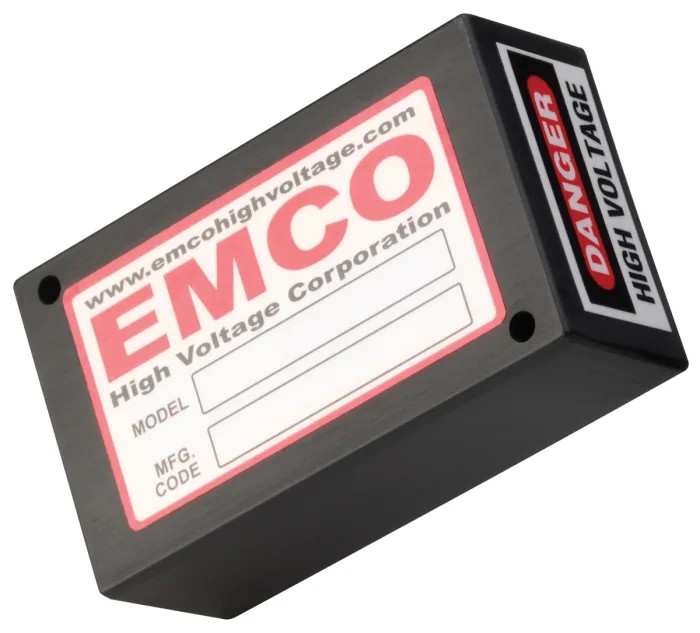

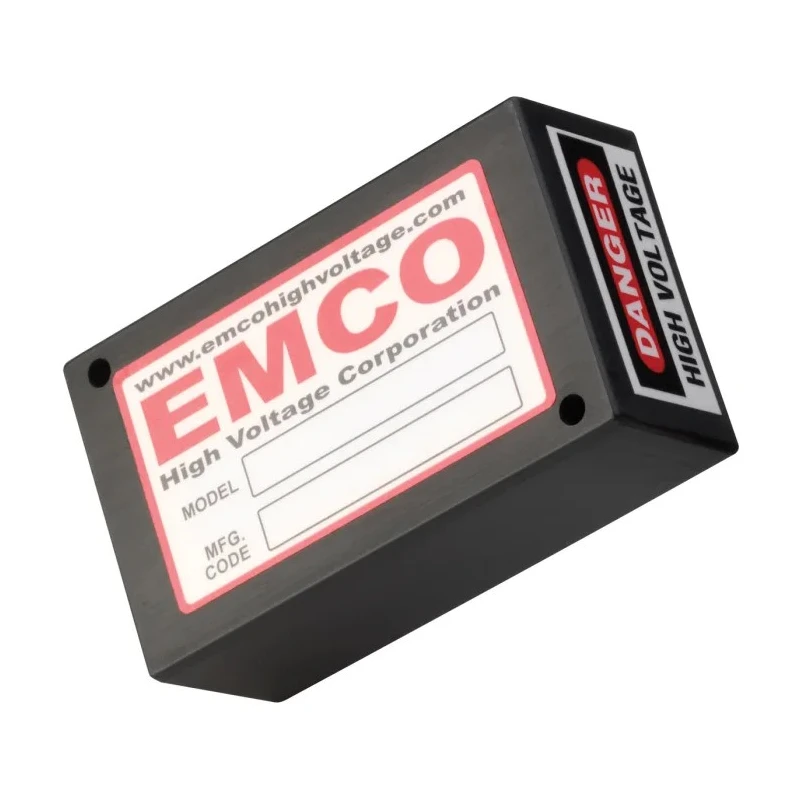

XP Power 3 W Isolated DC to High Voltage DC Converter, 1.5kV Output, 2mA Output Current, 12V dc Input, Through Hole E15

XP Power E15 DC/DC Converter is a 3 W isolated DC to high voltage DC converter designed to provide safe and efficient voltage conversion with an output of 1.5kV and output current of 2mA. The device supports a wide input voltage range from 0V to 12V dc, mounted conveniently using a through-hole package type suitable for compact PCB installations.

This E series converter features low ripple and noise at 0.05%, ensuring minimal interference in sensitive electronic applications. The high isolation voltage rating of 3.5kV enhances electrical safety in demanding industrial environments.

With a compact ComPacT package size of 63.5mm length, 38.1mm width, and 21.6mm depth, this converter seamlessly fits space-constrained designs. Operating temperature ranges from -10°C to 60°C provide flexibility for use in various industrial, laboratory, and commercial applications.

The product boasts excellent reliability with a mean time between failure (MTBF) of 2,000,000 hours and low leakage current for efficient performance. Its proportional input/output design allows stable power delivery without the need for a minimum load, making it versatile across multiple use cases.

Typical applications include piezoelectric devices, capacitor charging, igniter and spark modules, electrostatic chuck operation, and field generation, making it an essential component in power supplies and voltage conversion for industrial and scientific equipment.

The converter features an isolation voltage of 3.5kV ensuring safe operation. Compact ComPacT package type measures 63.5mm length, 38.1mm width, and 21.6mm depth. Operates efficiently between -10°C to 60°C for various industrial environments.

Low leakage current and excellent reliability with a mean time between failure (MTBF) of 2,000,000 hours. Ideal for applications requiring high voltage isolation such as piezo devices and capacitor charging. Proportional input/output characteristic delivers stable performance without minimum load requirements.

Designed for through-hole mounting, facilitating easy PCB integration. Suitable for igniter and spark modules, field generation, and electrostatic chuck applications.

This product is a reliable choice for engineers and designers looking for compact, efficient, and high-voltage isolated DC/DC conversion solutions in electronic components, power supplies, and transformers.
