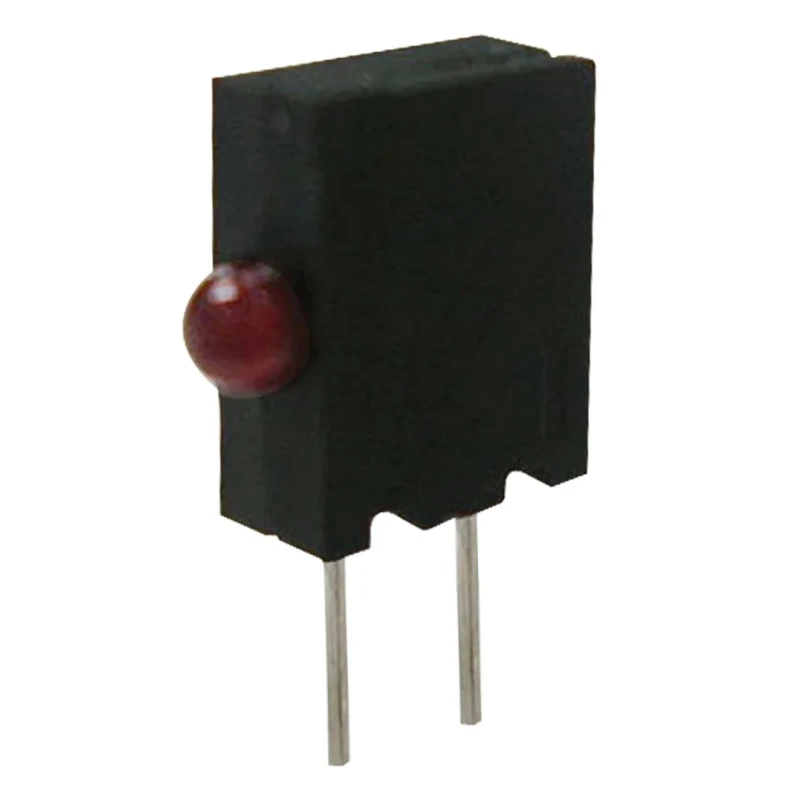

Kingbright Red Right Angle PCB LED Indicator 3 mm (T-1), 1 LED, 2.5 V, Diffused Lens KM2520EH/1ID

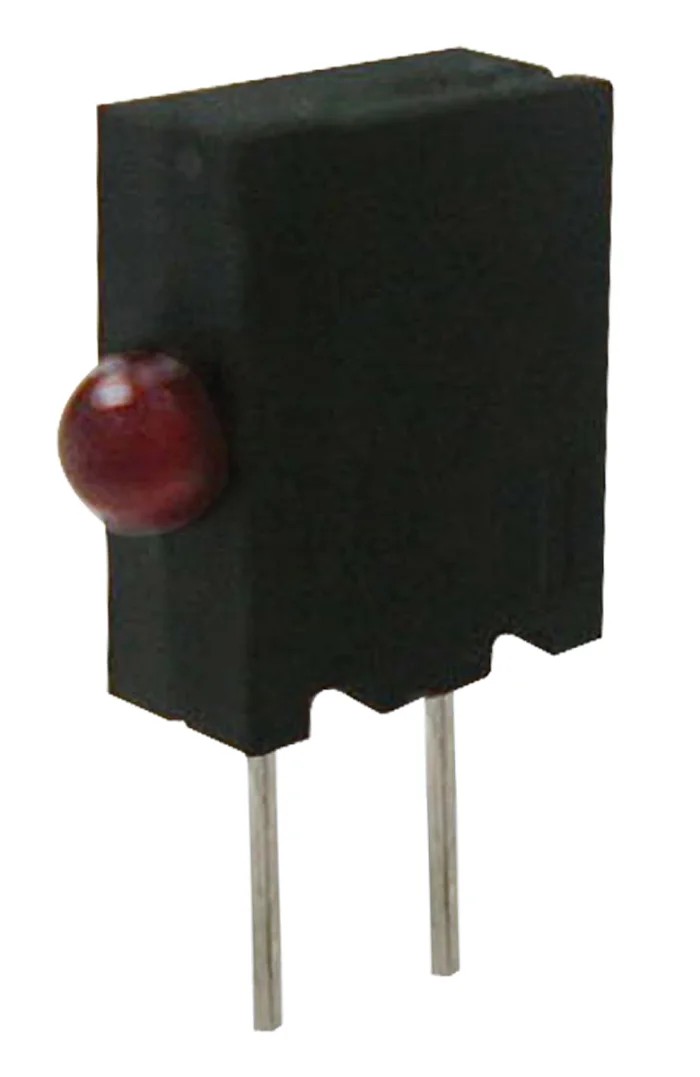

Kingbright KM2520EH/1ID is a Red Right Angle PCB LED Indicator designed for electronic applications requiring reliable visual status indication. This subminiature LED indicator features a single 3 mm (T-1) red LED housed in a black plastic case positioned at a right angle to the PCB for efficient mounting and visibility.

The LED has a minimum supply voltage of 2.5 V and a maximum forward current of 30 mA, making it suitable for low voltage circuit designs. It offers a luminous intensity of 30 millicandela, providing clear visual feedback in industrial, electronic, and instrumentation applications.

The diffused red lens ensures uniform light dispersion with a 40-degree viewing angle, improving indicator visibility under various lighting conditions. The LED element is made from gallium phosphide (GaP) and gallium arsenide phosphide (GaAsP) semiconductor materials which guarantee consistent performance and long life.

The indicator is mounted through-hole with 2 pins ensuring secure PCB connection, and it conforms to RoHS standards, supporting environmental and regulatory compliance. The housing is UL 94 V-0 flame retardant rated, suitable for embedded electronics requiring safety certifications.

Typical uses include industrial control panels, communication devices, and consumer electronics where compact and efficient LED indicators are needed. Its 6.22 mm length and robust construction make it versatile for various industrial and laboratory PCB assembly requirements.

The LED operates at a minimum supply voltage of 2.5 V. Maximum forward current rating of 30 mA protects circuit components. Luminous intensity of 30 mcd ensures bright indication. Black plastic housing and right angle orientation ideal for PCB layouts.

40-degree viewing angle for enhanced visibility. Fabricated using GaP and GaAsP materials for reliable performance. Power dissipation rating of 100 mW for steady operation. Compact 6.22 mm length suitable for tight spaces.

RoHS compliant and UL 94 V-0 flame retardant housing. Explore our extensive range of PCB LED Indicators and electronic components at EnvMart for diverse industrial, manufacturing, communication, and laboratory solutions.
