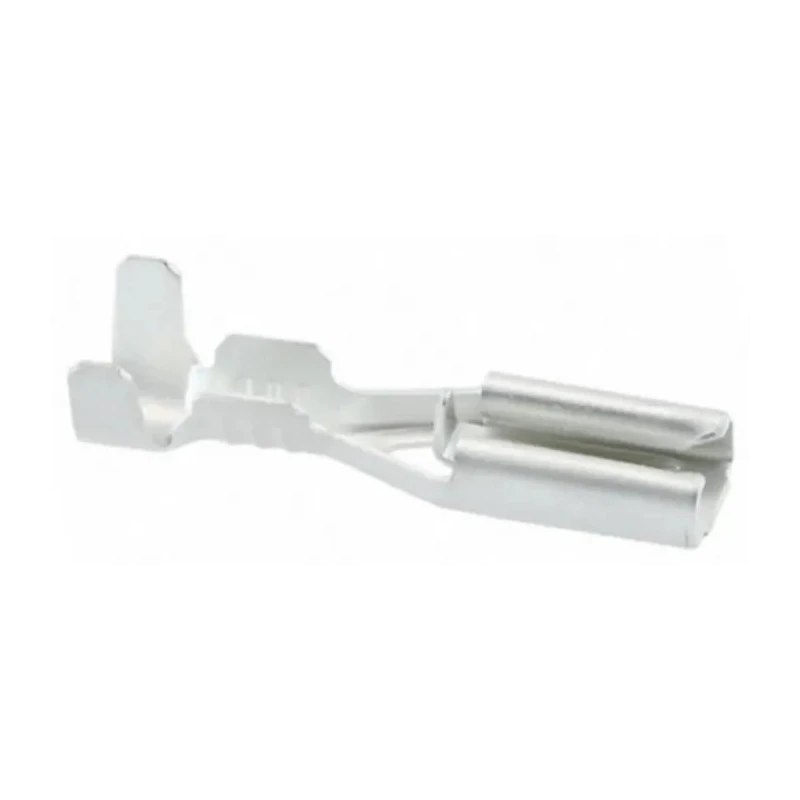

TE Connectivity Positive Lock .110 Mk III Black Uninsulated Female Spade Connector, Crimp Termination, 2.79 x 0.81 1742975-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Positive Lock .110 Mk III Black Uninsulated Female Spade Connector, Crimp Termination, 2.79 x 0.81 1742975-1

Name: TE Connectivity Positive Lock .110 Mk III Black Uninsulated Female Spade Connector, Crimp Termination, 2.79 x 0.81 1742975-1
Brand: TE Connectivity
SKU: 204525
Price: 0.11 USD
Availability: InStock



Category Spade Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Black
Orientation	Straight
Gender	Female
Insulation	Uninsulated
Overall Length	16.5mm
Contact Material	Brass
Series	Positive Lock .110 Mk III
Termination Type	Crimp
Contact Plating	Tin
Minimum Wire Size mm²	0.3mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Tab Width	2.8mm
Tab Thickness	0.81mm
Tab Size	2.79 x 0.81 mm

Key Features

Features a positive locking mechanism for secure mating.
Designed for fast connect and disconnect with low insertion and withdrawal force.
Uninsulated black design made with brass contact material plated with tin.
Compatible with wire sizes from 0.3 mm² (22 AWG) to 0.8 mm² (18 AWG).
Constructed with a straight orientation and overall length of 16.5 mm.
Provides an audible snap on connection to confirm secure mating.
Optimized contact surface design enhances electrical performance.
Intended for electronic gas igniter applications such as cooking ranges and gas grills.

Product Description

TE Connectivity 1742975-1 Positive Lock .110 Mk III Black Uninsulated Female Spade Connector offers reliable and secure crimp termination for electronic gas igniter applications. Engineered for fast mating and disconnection, this connector features a positive locking mechanism that ensures a robust mechanical lock and excellent electrical contact performance.

The connector utilizes a brass contact material plated with tin and is uninsulated, making it suitable for applications requiring a compact and durable solution. The tab size measures 2.79 x 0.81 mm, fitting wire sizes ranging from 0.3 mm² (22 AWG) to 0.8 mm² (18 AWG), accommodating a range of wiring requirements.

This spade connector is straight in orientation and measures 16.5 mm in overall length. It is designed with a spring mechanism engaging a locking latch and ramp to prevent disconnection if the wire is pulled, while the audible snap provides clear feedback for secure connection confirmation.

Its enhanced contact surface design improves electrical performance, making it suitable for industrial, commercial, and manufacturing use cases, especially for electronic gas igniters in cooking ranges, gas grills, and similar equipment.

Positive locking mechanism ensures secure and reliable mating. Low insertion and withdrawal force promotes ease of use. Brass contact with tin plating offers durability and conductivity. Uninsulated design for space-saving and efficient installation.

Compatible with 22 to 18 AWG wire sizes. Audible snap confirms secure terminal connection. Straight orientation with compact 16.5 mm length. Ideal for gas ignition applications in consumer and industrial equipment. Explore more from TE Connectivity's range of Spade Connectors at EnvMart for various electrical and electronic applications.
