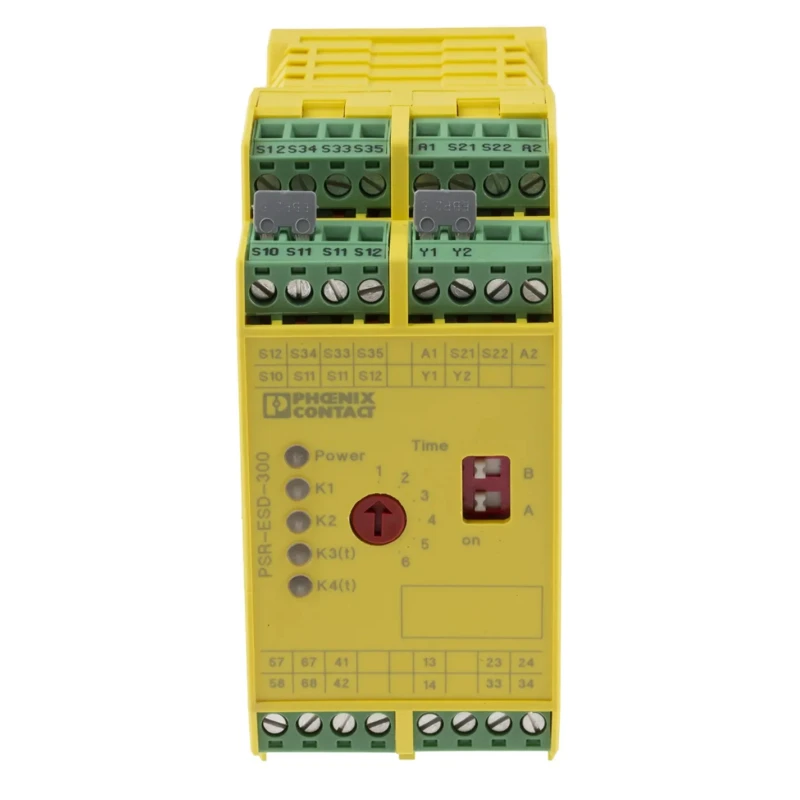

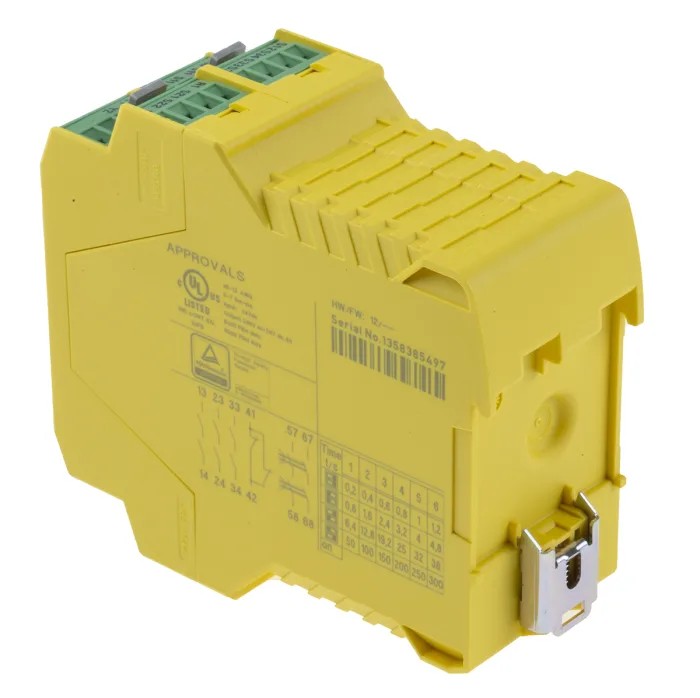

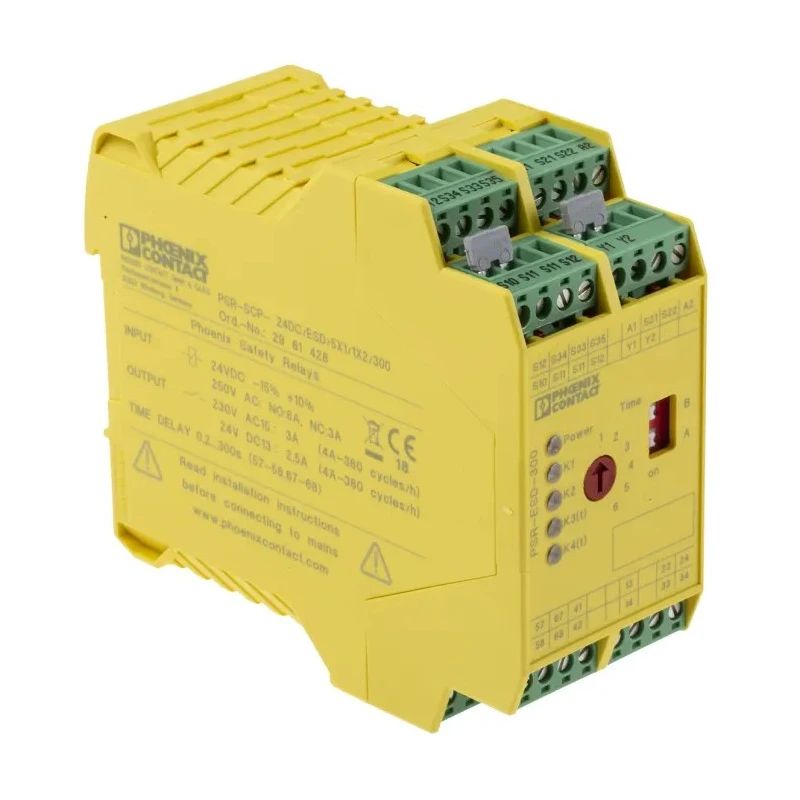

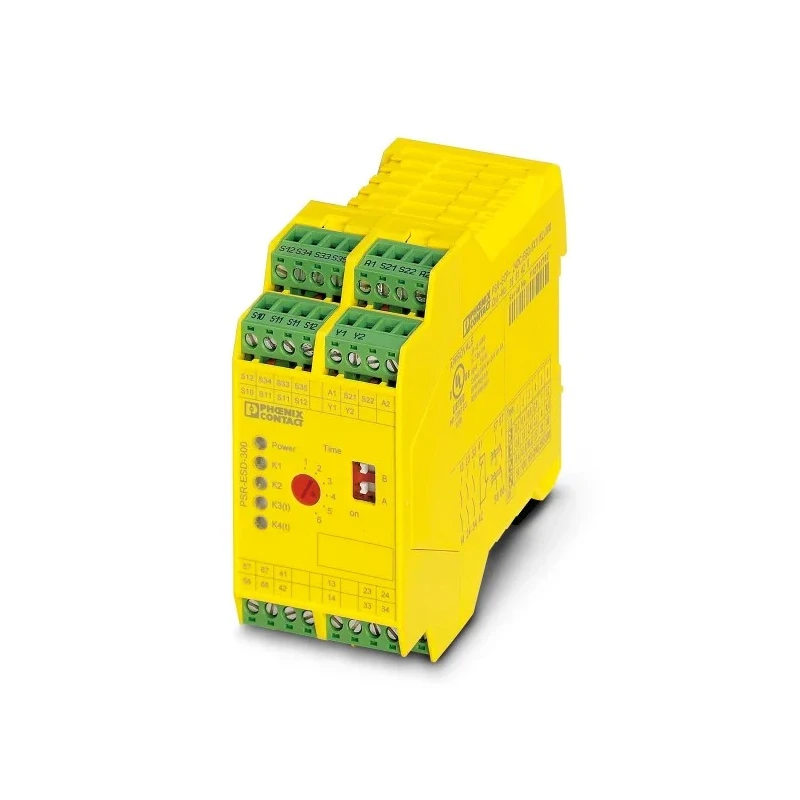

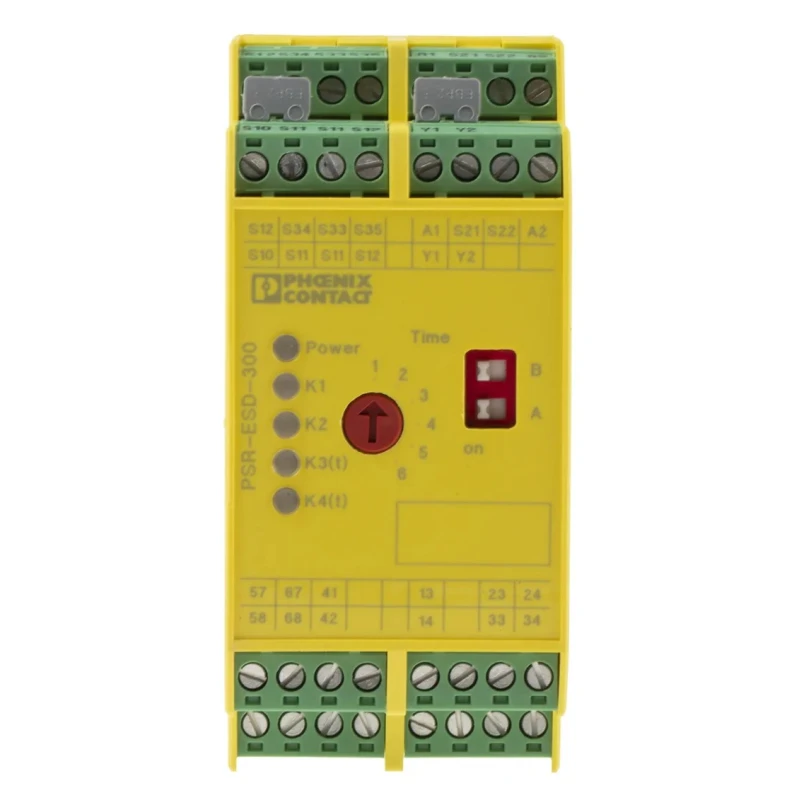

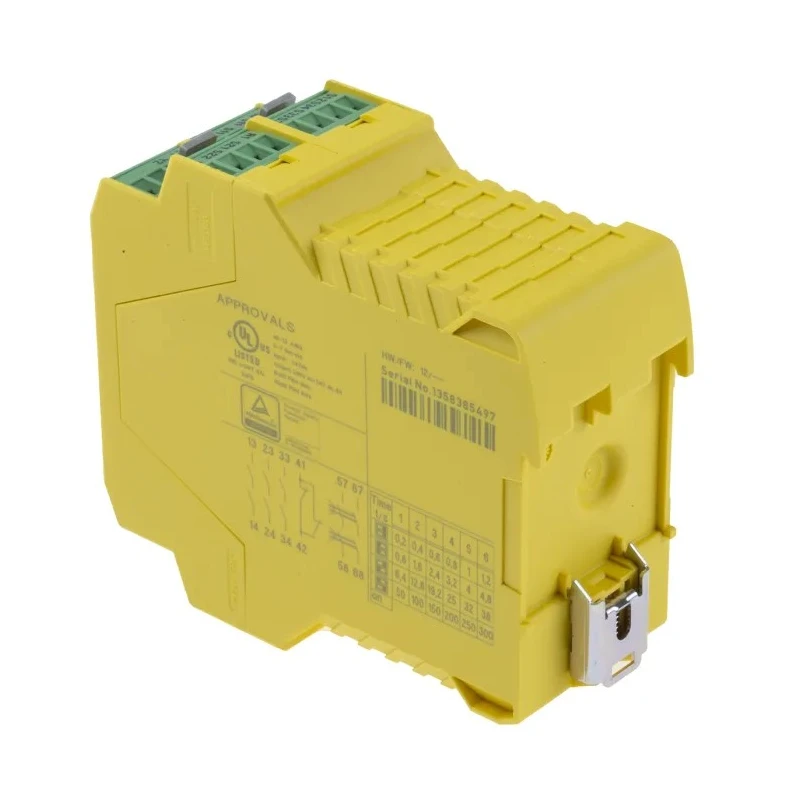

Phoenix Contact 24V dc Safety Relay, 6 Safety Contacts, DIN Rail Mount, 3.72W Power, PSR-SCP-24DC/ESD/5X1/1X2/300 2981428

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact 24V dc Safety Relay, 6 Safety Contacts, DIN Rail Mount, 3.72W Power, PSR-SCP-24DC/ESD/5X1/1X2/300 2981428

Name: Phoenix Contact 24V dc Safety Relay, 6 Safety Contacts, DIN Rail Mount, 3.72W Power, PSR-SCP-24DC/ESD/5X1/1X2/300 2981428
Brand: PHOENIX CONTACT
SKU: 204522
Price: 535.8 USD
Availability: InStock



Category Safety Relay Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Power Consumption	3.72W
Brand	Phoenix Contact
Height	114.5mm
Length	99mm
Model	2981428
IP Rating	IP54
Width	45mm
Mount Type	DIN Rail
Series	PSR-SCP-24DC/ESD/5X1/1X2/300
Maximum Operating Temperature	55°C
Time Delay	0 s
Minimum Operating Temperature	-20°C
Safety Category	3
Terminal type	Screw
Standards/Approvals	IEC, RoHS
Coil Voltage	24V dc
Switching DC Voltage	250V dc
Switching AC Voltage	250V ac
Contact Current	40mA
Safety Contacts	6

Key Features

Equipped with 6 safety contacts ensuring reliable circuit monitoring.
Operates at 24V dc coil voltage with 3.72W power consumption.
DIN rail mount design allows for easy installation in control panels.
Bright yellow PBT housing is impact-resistant and chemically durable.
Integrated suppressor diode protects against voltage spikes.
Suitable for switching voltages from 5 to 250V AC/DC.
Wide operating temperature range from -20°C to +55°C for demanding environments.
IP54 rated enclosure provides protection against dust and splashing water.

Product Description

Phoenix Contact 2981428 is a 24V dc safety relay designed for safe operation of industrial safety devices such as light curtains and safety doors. Its six safety contacts monitor circuits and prevent hazardous operation, significantly reducing the risk of injury to personnel.

The relay supports switching voltages from 5 to 250V AC/DC and consumes 3.72W of power, making it suitable for low-power safety applications. The bright yellow PBT housing offers excellent chemical and impact resistance, suitable for harsh industrial environments.

It is designed for DIN rail mounting, facilitating straightforward installation in control cabinets. An integrated suppressor diode prevents damage from voltage spikes, enhancing longevity and reliability.

LED status indicators provide operators with real-time feedback on relay operation for efficient troubleshooting and monitoring. The unit meets IEC and RoHS standards and is rated IP54 for dust and water ingress protection. It operates reliably over a temperature range of -20°C to +55°C, supporting demanding industrial conditions.

This safety relay is widely used in automation, robotics, manufacturing, and other industrial sectors for effective safety circuit control. The package contains the Phoenix Contact PSR-SCP-24DC/ESD/5X1/1X2/300 model.

Equipped with 6 safety contacts ensuring reliable circuit monitoring. Operates at 24V dc coil voltage with 3.72W power consumption. DIN rail mount design allows for easy installation in control panels. Bright yellow PBT housing is impact-resistant and chemically durable.

Integrated suppressor diode protects against voltage spikes. Suitable for switching voltages from 5 to 250V AC/DC. Wide operating temperature range from -20°C to +55°C for demanding environments. IP54 rated enclosure provides protection against dust and splashing water.

LED indicators for clear status monitoring during operation. Explore more Safety Relays and industrial automation components at EnvMart for your control system needs.
