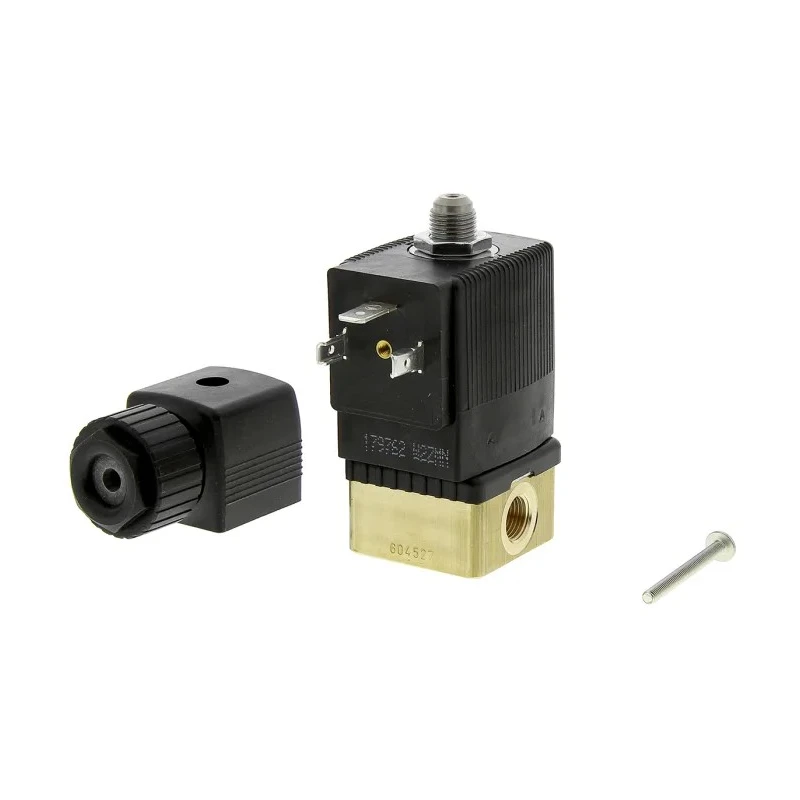

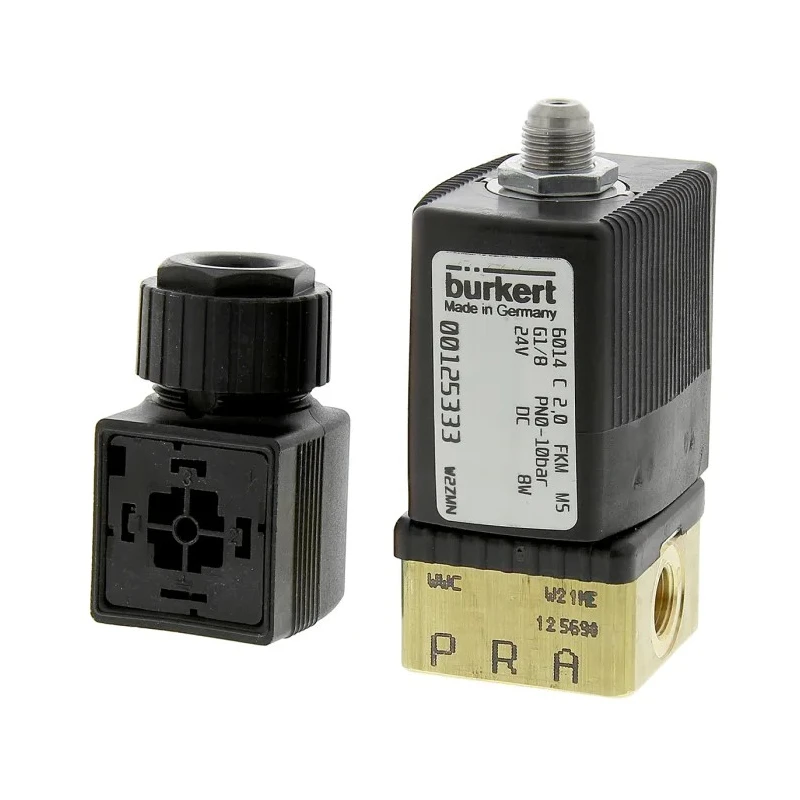

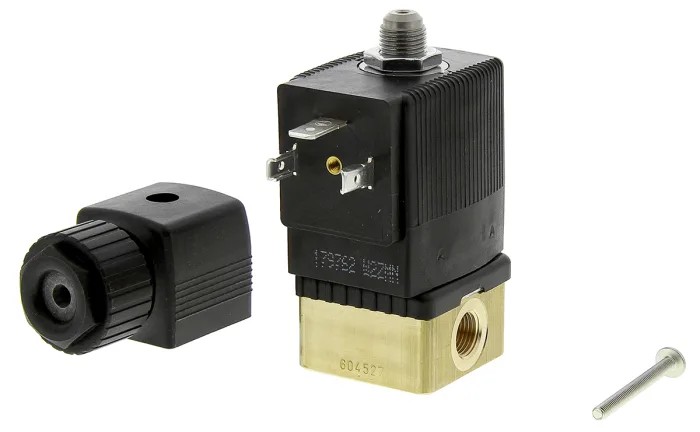

Burkert 3-Port Solenoid Valve, NC, Brass Body, 24V DC, 10 bar, 3.18 mm Port, 6014 Series 125333

The Burkert Solenoid Valve 125333 is a precision-engineered industrial valve designed for demanding pneumatic and fluid power applications. Featuring a durable brass body and high-quality vibration-proof, bolted coil system, this valve operates reliably with various mediums including air, water, natural gases, oil, and neutral fluids.

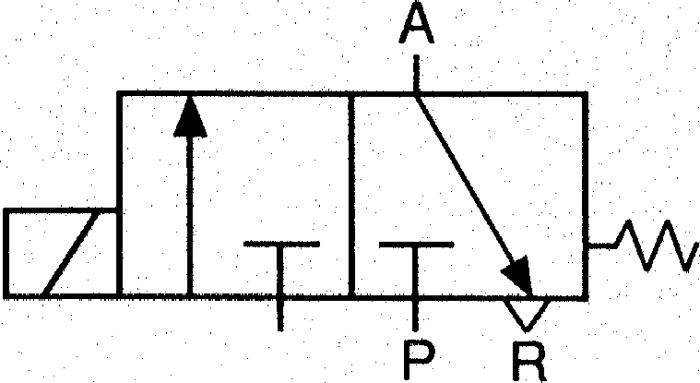

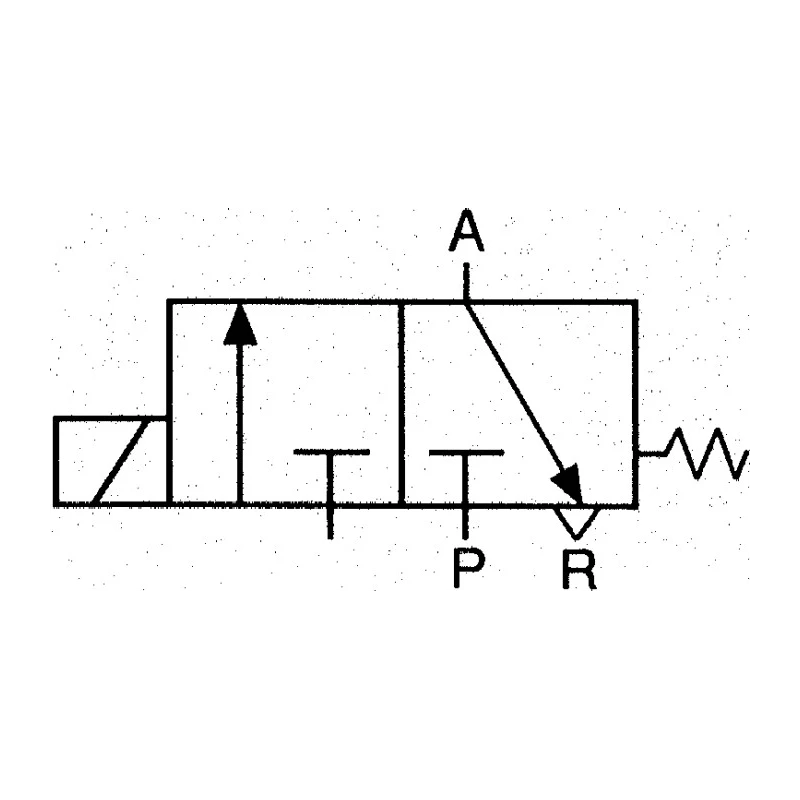

Configured as a 3-port valve in the Normally Closed (NC) position, the Burkert 125333 accepts a supply voltage of 24V DC. Its two inlet ports are female (3.18 mm) while the outlet port is a 1/8-inch male vent, ideal for direct mounting onto pneumatic valves. The valve is part of the Burkert 6014 series, recognized for its compact form, direct-acting mechanism, and high-pressure resistance. High-quality FKM seals provide excellent chemical and temperature stability.

This solenoid valve is engineered for rapid operation with maximum opening time of 15 ms and closing time of 20 ms. It holds a maximum operating pressure of 10 bar and achieves a flow factor Kv of 0.11 m³/h. Only the medium is in contact with the internal parts and the body, preserving process purity and minimizing contamination risks. The coil can be easily replaced or locked in four 90-degree positions, affording installation flexibility.

Its broad operating temperature range of -10°C to 55°C makes it suitable for installation in laboratory, manufacturing, HVAC control, and water treatment environments. The brass body is robust and corrosion-resistant, and the valve's compact size allows integration into industrial process panels.

The Burkert 125333 solenoid valve is designed for direct-acting operation, meaning it functions without external pressure assistance, enhancing reliability in low-pressure and vacuum applications. An outlet port diameter of 2 mm provides precise flow regulation, while the banjo-threaded connection ensures secure assembly.

Typical industrial applications include pneumatic control, process automation, water management systems, and fluid distribution in chemical processing. The device is IP65 rated, suitable for installation in environments where dust and splashing water are present.

This solenoid valve is manufactured in Germany, meeting strict quality standards, and is part of Burkert's well-established fluid control product portfolio. For further selection, browse other solenoid valves by Burkert or explore the Solenoid Valves category for specialized industrial control solutions at EnvMart.
