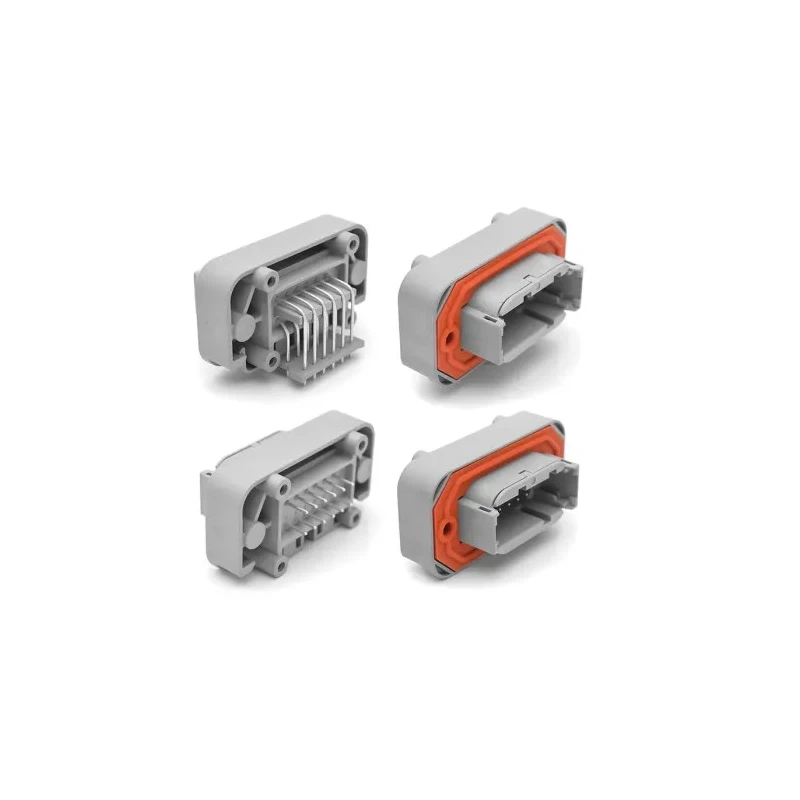

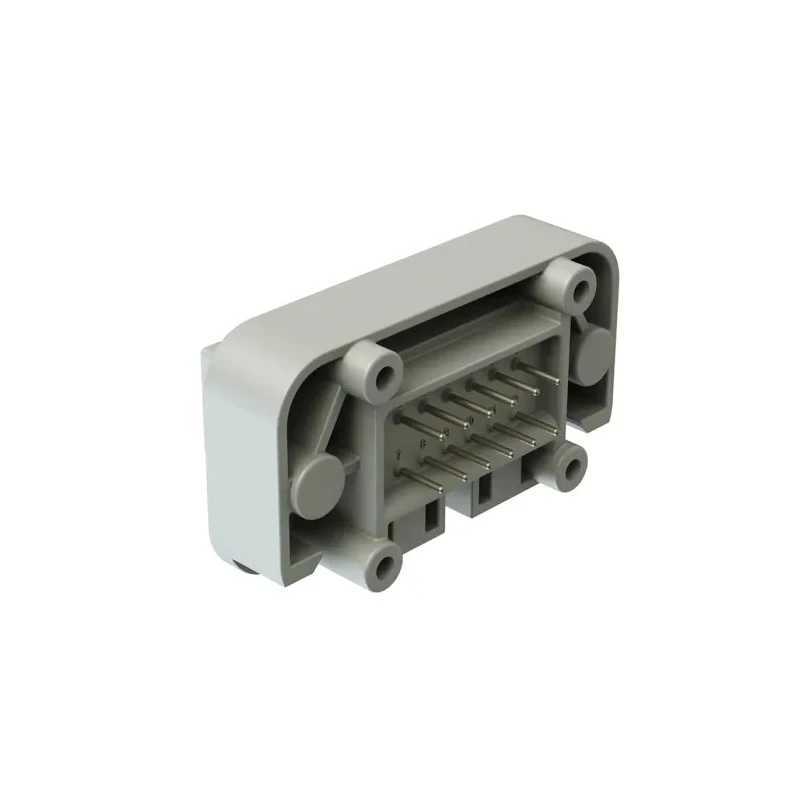

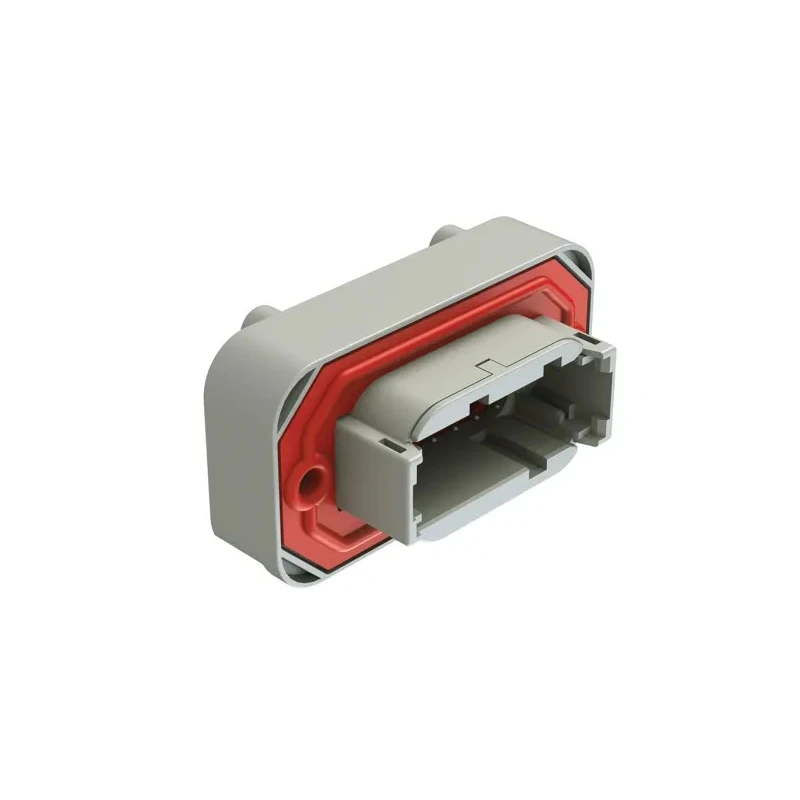

Amphenol Industrial Automotive Connector Male Grey Flange 12 Way Solder Termination 7.5A IP67 ATM15-12PA-BM03
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Grey |
| Current | 7.5A |
| Height | 33.1mm |
| Model | ATM15-12PA-BM03 |
| Depth | 30.2mm |
| IP Rating | IP67 |
| Width | 61mm |
| Gender | Male |
| Mount Type | Flange |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | ATM15 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Contact Plating | Tin |
| Number of Contacts | 12 |
Key Features
- Durable thermoplastic housing ensures lightweight and robust construction.
- Copper alloy contacts plated with tin provide reliable electrical connectivity.
- Flange mount type with 12 contacts arranged in 2 rows.
- Rated for temperature range from -55°C to 125°C for harsh environment use.
- IP67 rating offers excellent protection against dust and water ingress.
- Designed for automotive and industrial signal and power connectivity.
- Male gender with solder termination suitable for board mount applications.
- Compact size with dimensions of 61mm width, 33.1mm height, and 30.2mm depth.
Product Description
Amphenol Industrial ATM15-12PA-BM03 is a 12-way male automotive connector with a grey thermoplastic flange housing designed for solder termination. Rated for a maximum current of 7.5A, this connector features an IP67 ingress protection rating which makes it suitable for use in demanding automotive and industrial environments.
The connector's housing is made from durable thermoplastic with copper alloy contacts plated in tin for optimal electrical conductivity and corrosion resistance. It is configured in 2 rows of contacts with a flange mount type ensuring secure and stable installation on printed circuit boards or other mounting surfaces.
Designed to operate reliably within a temperature range of -55°C to 125°C, this connector withstands harsh environments typically encountered in heavy equipment, transportation, industrial, and off-road applications. Its compact size (61mm width, 33.1mm height, 30.2mm depth) helps integrate into space-constrained boards or assemblies.
Applications include power and signal connectivity in HVAC systems, farming implementation, boating, data acquisition, and other sealed or harsh environments where robust electrical connections are critical. The connector is a part of Amphenol's BoardLock™ AT13/15 series known for environmentally sealed, low-profile, and lightweight design solutions compatible with industry-standard mating components.
Durable thermoplastic housing with tin-plated copper alloy contacts. Flange mount type for secure PCB installation. 12 contacts arranged in 2 rows for comprehensive connectivity. Rated IP67 for full protection against dust and water ingress.
Operates in temperature range from -55°C to 125°C. Suitable for automotive, industrial, and heavy equipment applications. Compact dimensions accommodate tight spaces. Male solder termination for reliable wire-to-board connections.
Explore our wide range of Automotive Connectors and industrial electronic components on EnvMart for advanced connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 7.5A.
This connector has an IP67 rating, providing excellent protection against dust and water ingress.
The dimensions of this connector are 61mm in width, 33.1mm in height, and 30.2mm in depth.
The housing is made from thermoplastic, and the contacts are copper alloy plated with tin for reliable electrical connectivity.
It operates reliably within a temperature range of -55°C to 125°C.
This model features 12 contacts arranged in 2 rows.
It uses solder termination suitable for board mount applications.
This connector features a flange mount type for secure installation.
It is designed for automotive and industrial signal and power connectivity, including HVAC systems and data acquisition.
The connector is male gender.
The country of origin for this connector is China.
This model is part of Amphenol's ATM15 series.
