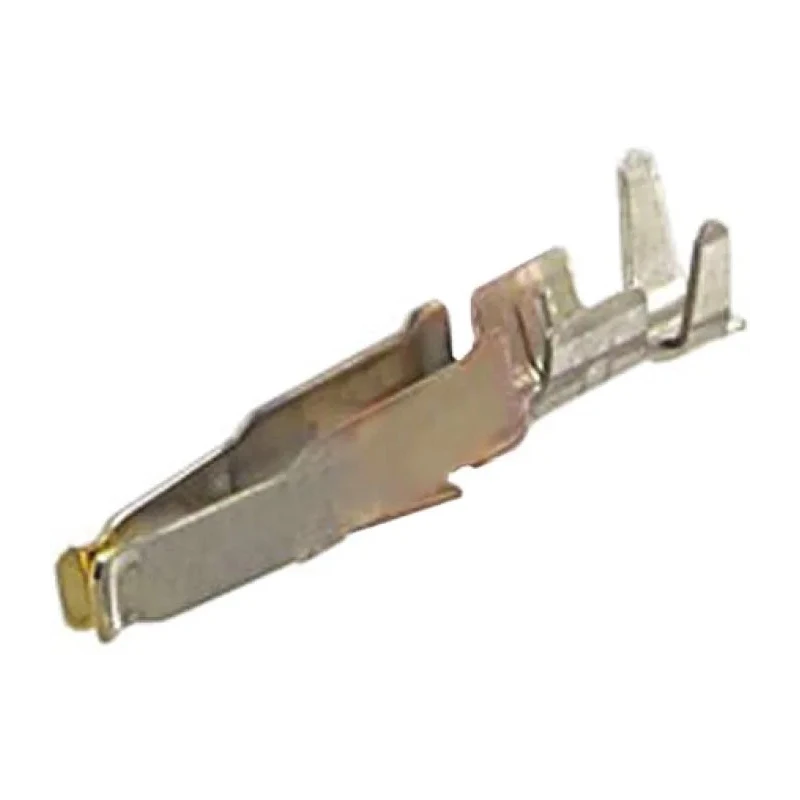

HARTING D-Sub Standard Series Female Crimp D-Sub Connector Contact Gold over Nickel Signal 24 AWG 09670008277
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARTING |
| Length | 14.1mm |
| Gender | Female |
| Contact Material | Brass |
| Series | D-Sub Standard |
| Termination Type | Crimp |
| Contact Type | Signal |
| Contact Plating | Gold over Nickel |
| Minimum Wire Size mm² | 0.25mm² |
| Maximum Wire Size mm² | 0.52mm² |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed with brass contact material for durability.
- Gold plating over nickel ensures reliable signal transmission and corrosion resistance.
- Crimp termination type for secure and effective wire connections.
- Maximum contact resistance is 10 milliohms ensuring low electrical resistance.
- Compatible with wire sizes between 0.25 mm² to 0.52 mm² (24 AWG).
- Designed as a female contact suitable for D-Sub connector assemblies.
- Does not carry any specific standards or approvals.
Product Description
HARTING 09670008277 is a female crimp D-Sub Connector Contact from the renowned D-Sub Standard Series, engineered for precise and reliable signal transmission in electronic assemblies. The contact features brass construction with gold plating over nickel plating that enhances conductivity and protects against corrosion, facilitating enduring performance in demanding environments.
This contact is designed specifically for crimp termination to wires ranging from 0.25 mm² to 0.52 mm² cross-section, corresponding to 24 AWG, making it ideal for standard signal applications requiring secure and stable connections. The contact length measures 14.1 mm, fitting seamlessly into D-Sub connectors to support modular and maintenance-friendly electronic setups.
With a maximum contact resistance of 10 milliohms, this component assures minimal electrical loss and interference, critical in sensitive signal systems. Although it does not conform to specific standards or approvals, the quality and compatibility with Harting’s system set make it suitable for various industrial and commercial electronic manufacturing, repair, and assembly applications.
HARTING offers a complete range of D-sub crimp contacts including male and female variation and compatible insertion/extraction and crimp tools for enhanced efficiency during assembly. These contacts are valuable in electronic equipment manufacturing, telecommunications, instrumentation, and lab environments where precise signal integrity and quality are essential.
Constructed with brass contact material for durability. Gold plating over nickel ensures reliable signal transmission and corrosion resistance. Crimp termination type for secure and effective wire connections. Length of contact is 14.1 mm to fit standard connectors.
Maximum contact resistance is 10 milliohms ensuring low electrical resistance. Compatible with wire sizes between 0.25 mm² to 0.52 mm² (24 AWG). Designed as a female contact suitable for D-Sub connector assemblies. Does not carry any specific standards or approvals.
This product is a key component for electronic designers and manufacturers implementing D-Sub connector technology for signal transmission and is available in small pack sizes for flexibility in assembly lines and repairs. Explore the comprehensive HARTING D-Sub series and related tooling for full system integration via EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact resistance is 10 milliohms, ensuring low electrical resistance for effective signal transmission.
It is compatible with wire sizes ranging from 0.25 mm² to 0.52 mm², which corresponds to 24 AWG.
The contact length measures 14.1 mm, designed to fit standard D-Sub connectors.
The contact is constructed with brass material and features gold plating over nickel to enhance conductivity and corrosion resistance.
This model uses a crimp termination type, providing secure and effective wire connections.
This D-Sub connector contact does not carry any specific standards or approvals.
It is designed as a signal contact, suitable for precise signal transmission in electronic assemblies.
This contact is a female type, specifically designed for D-Sub connector assemblies.
The country of origin for this product is India.
It belongs to the D-Sub Standard Series, which is engineered for reliable signal transmission.
This contact is suitable for various industrial and commercial electronic manufacturing, repair, and assembly applications.
HARTING offers a complete range of D-Sub crimp contacts, including both male and female variations.
