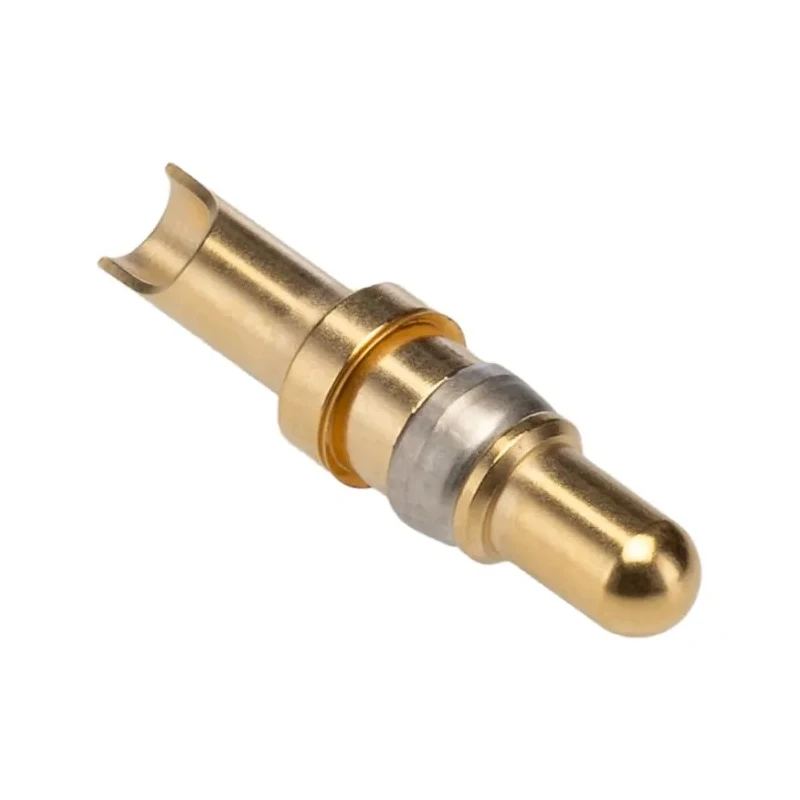

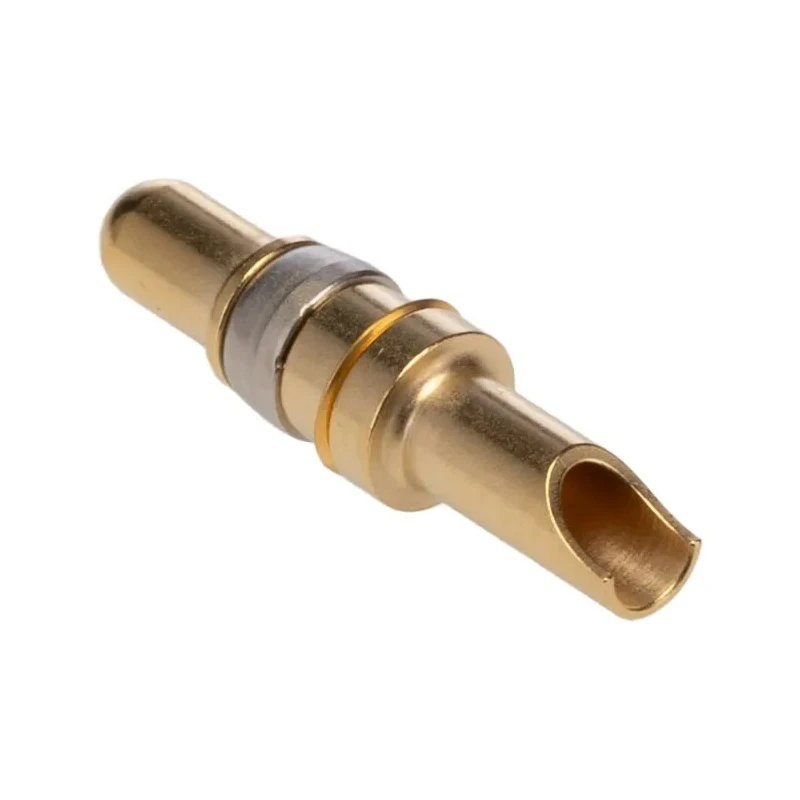

Amphenol Communications Solutions 86303056NLF 8630 Series 5 mm Male Solder D-Sub Connector Power Contact Gold over Nickel 20A
Specifications
| Country of Origin | France |
|---|---|
| Brand | Amphenol Communications Solutions |
| Current | 20A |
| Length | 21.85mm |
| Model | 86303056NLF |
| Gender | Male |
| Series | 8630 |
| Termination Type | Solder |
| Contact Type | Power |
| Contact Plating | Gold over Nickel |
| Maximum Wire Size mm² | 3.18mm² |
| Maximum Wire Size AWG | 12AWG |
| Contact Size | 5 mm |
Key Features
- Supports up to 20A current handling capacity for robust power connections.
- Gold over nickel contact plating enhances conductivity and corrosion resistance.
- Compatible with 5 mm size mixed contact D-Sub shells for standard and hybrid configurations.
- Solder termination ensures secure wire attachment and reliable connectivity.
- Accepts 12 AWG wire size (3.18 mm²), suitable for higher power requirements.
- Male contact with power type, precision-engineered for industrial and computing interfacing.
- Total contact length of 21.85 mm facilitates correct insertion depth in D-Sub connectors.
- Designed and manufactured to high standards for demanding industrial, commercial, and computer use.
Product Description
The Amphenol Communications Solutions 86303056NLF is a male power contact designed for integration in the 8630 Series hybrid D-Sub connectors. Engineered with precision gold over nickel plating, it delivers reliable, high-conductivity connections and extended service life, even in demanding industrial environments. The robust 5 mm contact size and current-carrying capability of up to 20A meet the requirements of modern high-power signal and power distribution applications.
This contact supports solder termination, providing a secure and low-resistance attachment method for 12 AWG (3.18 mm²) wires. Its compatibility with standard hybrid shell configurations, such as the 17W2 format - used in mixed-contact connectors for combined signal and power circuits - ensures broad applicability in industrial automation, commercial computing systems, military electronics, and telecommunication equipment.
The component features a length of 21.85 mm, optimized for correct seating within mating D-Sub connector shells. Its gold-plated finish resists corrosion while reducing insertion and contact resistance, making it ideal for frequent connect/disconnect situations as well as fixed installations where long-term reliability and low-maintenance operation are priorities.
Amphenol Communications Solutions power contacts are manufactured to stringent quality standards, ensuring consistent performance and electrical integrity. The 86303056NLF model provides the flexibility to add high-current power lines within signal connectors, allowing for streamlined cabling schemes and improved system integration.
Typical applications include industrial control panels, process automation equipment, commercial and military-grade computing hardware, and hybrid data/power distribution networks. This product is widely used where both signal and power need to be combined in one compact interconnect solution.
For designers and integrators, the use of a male solder D-Sub power contact such as this model addresses reliability, simplifies assembly, and facilitates field maintenance. Explore further D-Sub Connector Contact solutions and the full 8630 Series from Amphenol Communications Solutions in the EnvMart Electronics & Electricals catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current handling capacity of up to 20A, making it suitable for robust power connections.
The 86303056NLF features a solder termination type, ensuring a secure and low-resistance attachment for wires.
It accepts a maximum wire size of 12 AWG, which is equivalent to 3.18 mm², suitable for higher power requirements.
The contact size of this model is 5 mm, designed for compatibility with standard D-Sub shells.
The total contact length is 21.85 mm, optimized for correct insertion depth in D-Sub connectors.
It features gold over nickel plating, which enhances conductivity and provides corrosion resistance.
Typical applications include industrial control panels, process automation equipment, and military-grade computing hardware, where both signal and power need to be combined.
Yes, it is compatible with 5 mm size mixed contact D-Sub shells, including the 17W2 format for hybrid configurations.
This model is a male contact designed for power connections in D-Sub connectors.
The country of origin for this connector is France.
It belongs to the 8630 Series of D-Sub connectors, which are designed for high-power applications.
The 86303056NLF is classified as a power contact, specifically engineered for industrial and computing interfacing.
