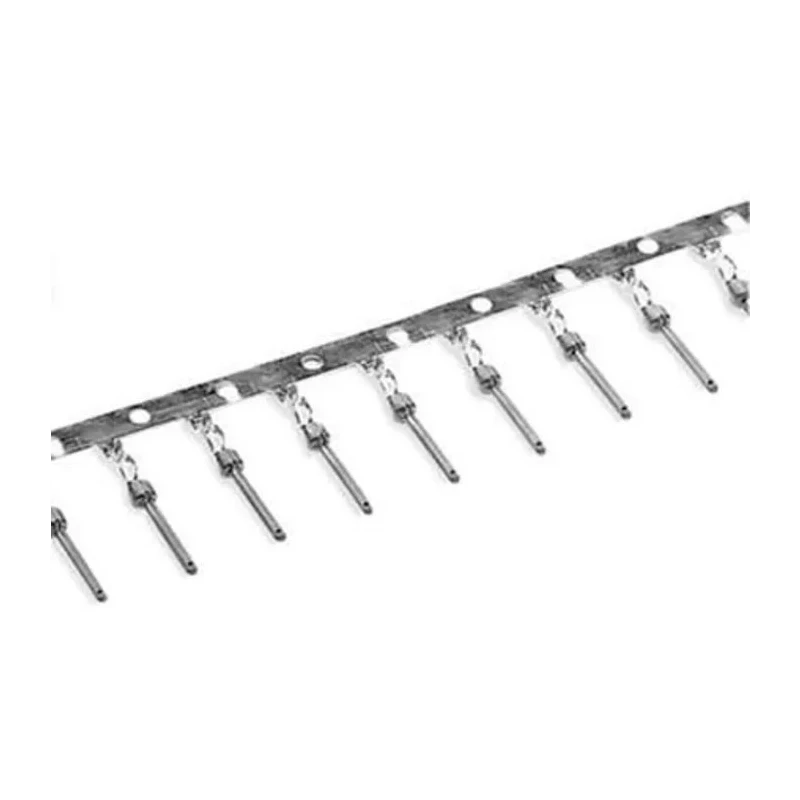

Amphenol Communications Solutions Female Crimp D-Sub Connector Contact Gold over Nickel Signal 20 AWG 86566520065LF

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Communications Solutions Female Crimp D-Sub Connector Contact Gold over Nickel Signal 20 AWG 86566520065LF

Name: Amphenol Communications Solutions Female Crimp D-Sub Connector Contact Gold over Nickel Signal 20 AWG 86566520065LF
Brand: Amphenol Communications Solutions
SKU: 145998
Price: 0.15 USD
Availability: InStock



Category D-Sub Connector Contact Brand Amphenol Communications Solutions Condition New

Specifications

Country of Origin	India
Brand	Amphenol Communications Solutions
Current	5A
Length	15mm
Model	86566520065LF
Gender	Female
Contact Material	Phosphor Bronze
Series	8656
Termination Type	Crimp
Contact Type	Signal
Contact Plating	Gold over Nickel
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG
Maximum Contact Resistance	5mΩ
Crimp Contacts 8656 Socket Signal Gauge 20/24 AWG, 500 Mating/Unmatings, Pack	5000/Reel

Key Features

The contact is female type with crimp termination ensuring secure wire connection.
It supports a maximum current of 5A suitable for signal applications.
Contact resistance is kept low at a maximum of 5 milliohms for reliable performance.
This product complies with standards including ISO 406, RoHS, ISO 1302, GS-22-008, and ISO 1101.
Suitable for applications requiring high mating cycles with 500 mating/unmating durability.
Packaged on reels of 5000 contacts, facilitating efficient assembly processes.

Product Description

Amphenol Communications Solutions 86566520065LF is a female crimp D-Sub connector contact designed for signal transmission with gold over nickel plating on phosphor bronze material. It is engineered for 20 AWG wire size compatibility, with a minimum wire gauge of 24 AWG, supporting currents up to 5 amperes. The contact length is 15 millimeters, making it suitable for compact electronic assemblies.

The contact exhibits a maximum contact resistance of 5 milliohms, assuring low electrical resistance and excellent signal integrity. It is terminated by crimping, providing reliable mechanical and electrical connection in assemblies. This D-Sub contact conforms to multiple industrial standards including ISO 406, RoHS, ISO 1302, GS-22-008, and ISO 1101, certifying it for quality and environmental compliance.

Designed for durability, the contact supports up to 500 mating cycles, ensuring long service life in demanding electronic environments. It comes in packs of 5000 per reel, making it ideal for high-volume manufacturing and automated assembly lines.

This product is manufactured in India under strict quality standards, offering a dependable solution for industrial, laboratory, telecommunications, computing, and electronic device assembly applications requiring reliable D-Sub Connector Contacts.

The contact is female type with crimp termination ensuring secure wire connection. It supports a maximum current of 5A suitable for signal applications. Contact resistance is kept low at a maximum of 5 milliohms for reliable performance.

Length of the contact is 15 mm, fitting 20 to 24 AWG wire gauges. This product complies with standards including ISO 406, RoHS, ISO 1302, GS-22-008, and ISO 1101. Suitable for applications requiring high mating cycles with 500 mating/unmating durability.

Packaged on reels of 5000 contacts, facilitating efficient assembly processes. Explore the full range of D-Sub contacts and connectors at EnvMart to source quality electronic components for your projects and production needs.
