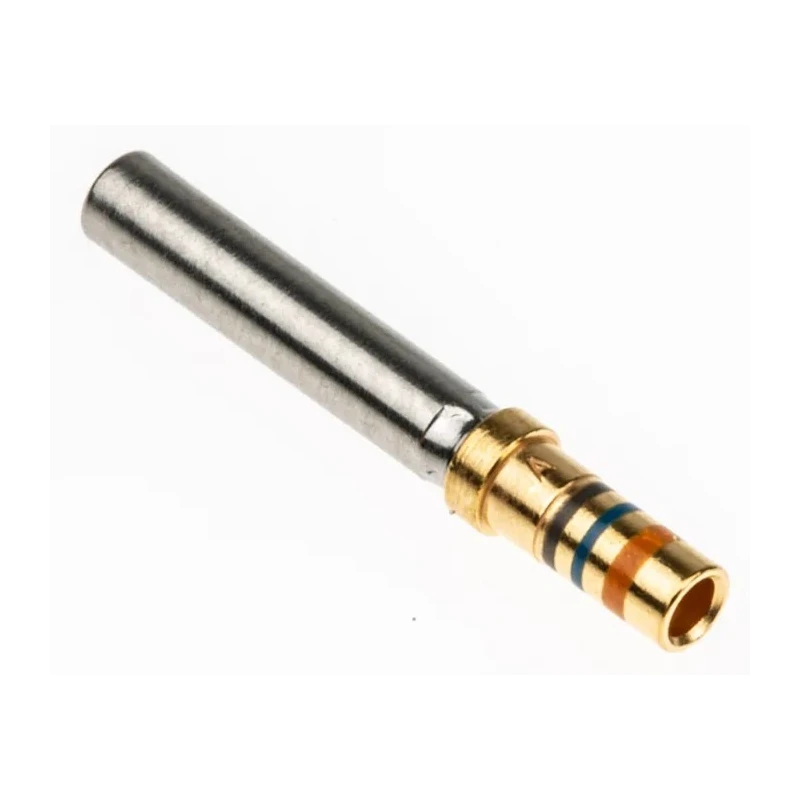

TE Connectivity AMPLIMITE 109 Series Size 20 Female Crimp D-Sub Connector Contact Gold Signal 20 AWG 205090-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 13.61mm |
| Model | 205090-1 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | AMPLIMITE 109 |
| Termination Type | Crimp |
| Contact Type | Signal |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Contact Size | 20 |
| • Post diameter | 0.04 mm |
| • Colour coded | Orange, Blue, Grey |
| 680-9210 | Crimp snap-in pin contact 24-20 awg, insulation diameter 1.83mm |
| 680-9222 | Crimp snap-in socket contact 24-20 awg, insulation diameter 1.83mm |
| 782-6196 | Posted pin contact |
| 782-6250 | Crimp snap-in pin contact 28-26 awg, insulation diameter 1.83mm |
Key Features
- Contact size 20 for precise connectivity.
- Gold plating on copper alloy contact ensures enhanced durability.
- Designed for wire sizes 0.2 to 0.6 mm² (24 to 20 AWG).
- Crimp termination type for secure and easy wire attachment.
- Snap-fit design enables simple housing assembly.
- Post diameter measures 0.04 mm for optimal performance.
- Colour coded contacts available in orange, blue, and grey.
- Contact current rating up to 7.5A suitable for signal applications.
Product Description
TE Connectivity 205090-1 is a high-quality Female Crimp D-Sub Connector Contact from the AMPLIMITE 109 Series. Designed to support 20 AWG signal wires, this contact is made from copper alloy with a gold-plated finish to ensure excellent electrical performance and corrosion resistance. Its crimp termination style allows secure connection to wires ranging between 0.2 mm² to 0.6 mm² (24 to 20 AWG).
The contact measures 13.61 mm in length and features a fine post diameter of 0.04 mm, offering highly reliable signal transmission. The snap-fit design allows for easy insertion into compatible housings, streamlining connector assembly processes.
Available with colour coding in orange, blue, and grey, these contacts facilitate identification during installation and maintenance. Rated for 7.5A contact current, they are intended primarily for signal-level applications. Compliance with MIL-C-24308 and MIL-C-39029 standards ensures robust industrial performance.
This product is ideal for industrial electronics, communication systems, aerospace, and instrumentation where reliable signal transmission and durable connectors are required. TE Connectivity's AMPLIMITE series offers a broad range of size 20 DM signal pin and socket contacts engineered for high precision and performance.
Contact size 20 provides exact fit in AMPLIMITE housings. Gold plating guarantees longevity and stable electrical contact. Supports wire sizes from 0.2 mm² to 0.6 mm² (24 to 20 AWG). Crimp termination enables firm wire attachment.
Snap-fit feature ensures efficient assembly into connector housings. Colour-coded options simplify wiring management. 7.5A rated contact current suitable for various signal types.
Set includes a single Female Crimp Contact compatible with AMPILITE range connectors. For related insertion/extraction tools and pin contacts, please refer to stock numbers 301-8414, 680-9210, and others.
Explore more TE Connectivity industrial-grade connector solutions and accessories on EnvMart to fulfill your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum wire size of 0.6 mm² (20 AWG).
The contact has a current rating of up to 7.5A, suitable for signal applications.
The length of this contact is 13.61 mm.
It is made from copper alloy and features gold plating for enhanced electrical performance and corrosion resistance.
This connector is designed for wire sizes ranging from 0.2 mm² to 0.6 mm² (24 to 20 AWG).
It utilizes a crimp termination type for secure and easy wire attachment.
The post diameter measures 0.04 mm, which contributes to its reliable signal transmission.
Yes, the contacts are available in color-coded options of orange, blue, and grey for easy identification during installation.
This contact is part of the AMPLIMITE 109 Series by TE Connectivity.
It is intended for use in industrial electronics, communication systems, aerospace, and instrumentation where reliable signal transmission is required.
Yes, it complies with MIL-C-24308 and MIL-C-39029 standards, ensuring robust industrial performance.
This connector contact is female, designed for compatibility with male connectors in the AMPLIMITE range.
