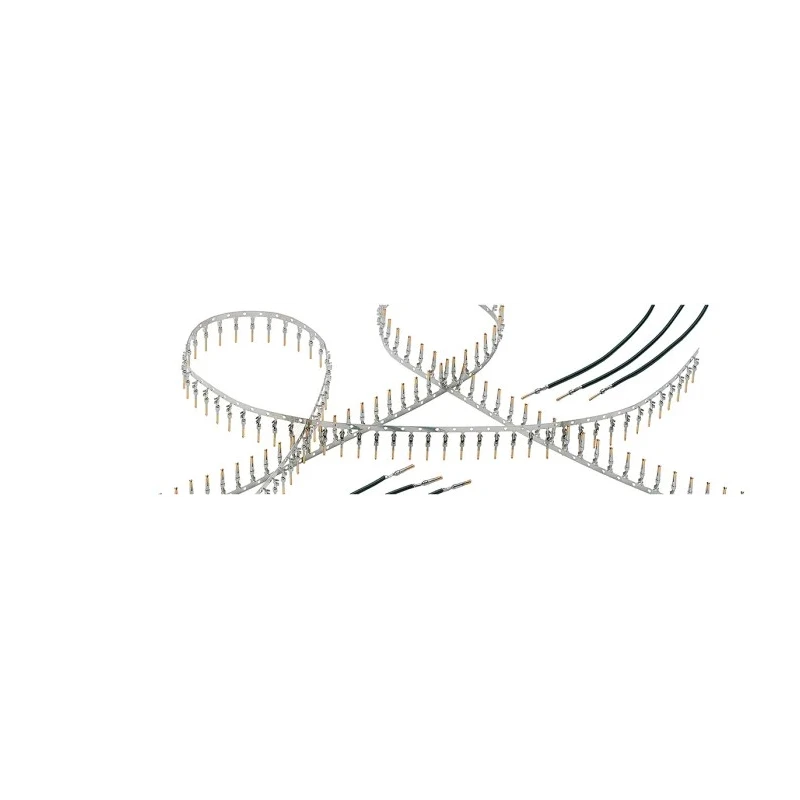

Harting D-Sub High Density Female Crimp D-Sub Connector Contact Palladium over Nickel Pin 24AWG 09560008275

Harting 09560008275 is a female crimp contact designed for D-Sub High Density connectors, featuring palladium over nickel plated pins suitable for 24 AWG wires with crimp termination. This connector contact offers robust performance and reliability in demanding electronic and industrial applications where high-density connections are required.

The contact material is a copper alloy providing excellent conductivity and mechanical strength. The plating consisting of palladium over nickel significantly enhances corrosion resistance and longevity, suitable for use in environments requiring reliable electrical connections.

The contact supports wire sizes between 0.14 mm² (26 AWG) and 0.22 mm² (24 AWG), accommodating a variety of wiring needs within this range. It is rated for a maximum electrical current of 6.5 A, making it suitable for many control and signal circuits.

With a maximum contact resistance of 20 milliohms, the component ensures signal integrity across connections. The crimp termination type allows for easy installation ensuring secure mechanical and electrical connection.

These crimp contacts are stamped and designed to exceed the capacity of standard D-Sub connectors by 70%, providing a greater number of connections in a smaller footprint, which is beneficial for dense electronic systems.

Constructed with copper alloy for durability and reliable conduction. Contact plating is palladium over nickel providing enhanced corrosion resistance. Suitable for wire sizes from AWG 26 to 24, corresponding to 0.14mm² to 0.22mm².

Rated for a maximum current of 6.5 amperes ensuring stable electrical performance. Designed for crimp termination ensuring secure and effective wire connection. Maximum contact resistance is 20 milliohms to maintain signal integrity.

Manufactured to performance level 3 standards. Ideal for high-density D-sub connector applications in industrial and electronic systems.

Typical usage includes electronic components and power connectors in industries such as industrial automation, communications, computing hardware, and testing equipment requiring compact, high reliability interconnects.
