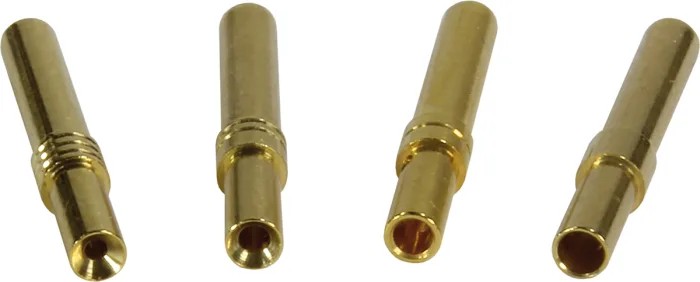

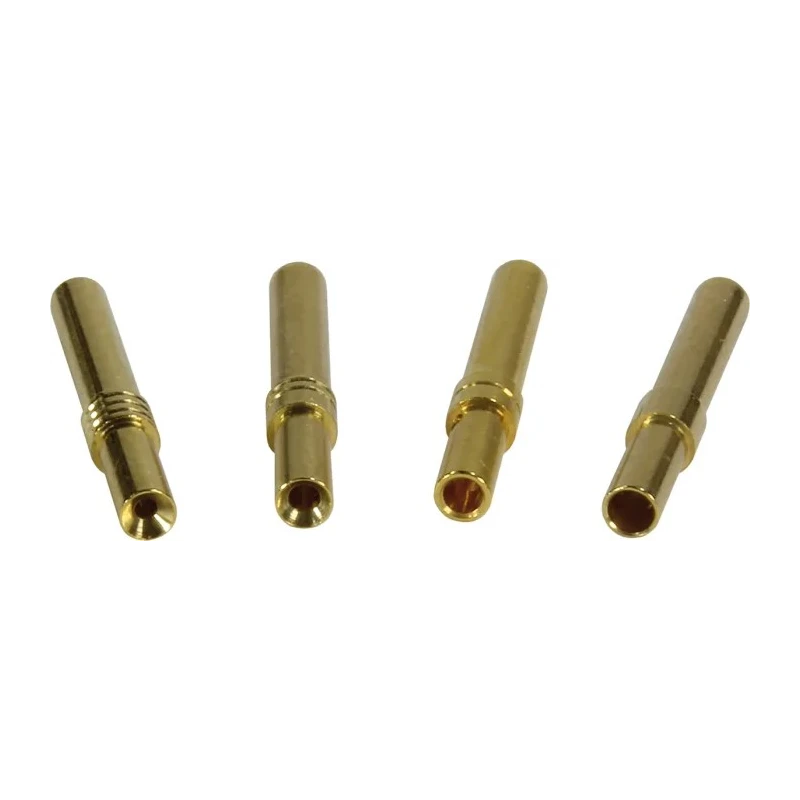

HARTING D-Sub Standard Series Female Crimp D-Sub Connector Contact Palladium over Nickel Pin 18AWG 09670003676
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | HARTING |
| Current | 7.5A |
| Length | 13.65mm |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | D-Sub Standard |
| Termination Type | Crimp |
| Contact Type | Pin |
| Contact Plating | Palladium over Nickel |
| Minimum Wire Size mm² | 0.33mm² |
| Maximum Wire Size mm² | 0.82mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Designed specifically for use in HARTING D-Sub connectors requiring turned contacts.
- Constructed from copper alloy for excellent conductivity and mechanical strength.
- Contact surface is plated with palladium over nickel ensuring corrosion resistance and durability.
- Supports current rating of 7.5 amps suitable for low to moderate power applications.
- Compatible with 18AWG wire size for secure crimp termination.
- Features a pin type contact with a length of 13.65 mm for effective engagement.
- Maximum contact resistance is 20 milliohms to maintain signal integrity.
- Termination type is crimp providing a robust mechanical and electrical connection.
Product Description
HARTING 09670003676 female crimp D-Sub connector contact is a high-quality electrical component designed for use within HARTING D-Sub Standard series connectors. It is crafted from copper alloy and features a palladium over nickel plating that provides reliable corrosion resistance and enhances durability in demanding industrial environments.
This connector contact is specifically designed as a pin-type turned crimp contact measuring 13.65 mm in length, compatible with wire sizes ranging from 22 AWG to 18 AWG (0.33 mm² to 0.82 mm²). It supports a maximum current rating of 7.5 amperes and a contact resistance of no more than 20 milli-ohms, ensuring excellent electrical performance and signal integrity.
The termination method is crimp, offering a secure mechanical and electrical connection ideal for industrial, telecommunications, and electronic manufacturing applications. Featuring precision machining to exacting tolerances, this contact is perfect for integration into D-Sub connectors requiring durable and hard-wearing contacts.
Manufactured in Switzerland, the part adheres to strict quality standards and is suitable for use in industrial assembly lines, communication devices, and instrumentation panels where reliable connector contacts are essential.
Turned crimp contact for HARTING D-Sub connectors. Copper alloy base material for high conductivity. Palladium over nickel plating for corrosion resistance. Rated current of 7.5 A suitable for various applications. Compatible with wire sizes from 22 to 18 AWG.
Contact length of 13.65 mm ensures proper connector engagement. Low contact resistance of 20 mΩ preserves signal quality. Crimp termination type offers robust connectivity. Manufactured to strict Swiss quality standards.
Applicable in industrial and electronics manufacturing sectors.
This HARTING D-Sub connector contact is a reliable choice for demanding electrical applications requiring durable and precision contact solutions. Explore more in the D-Sub Connector Contacts category on EnvMart for matched components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this D-Sub connector contact is 7.5 amperes, making it suitable for low to moderate power applications.
The pin-type contact measures 13.65 mm in length, ensuring effective engagement within the connector.
This model is compatible with wire sizes ranging from 22 AWG to 18 AWG, which corresponds to a cross-sectional area of 0.33 mm² to 0.82 mm².
The contact is constructed from a copper alloy, which provides excellent conductivity and mechanical strength.
The contact surface is plated with palladium over nickel, ensuring corrosion resistance and durability.
This model uses a crimp termination type, providing a robust mechanical and electrical connection.
The maximum contact resistance is 20 milliohms, which helps maintain signal integrity.
This connector contact is manufactured in Switzerland, adhering to strict quality standards.
It is suitable for use in industrial assembly lines, communication devices, and instrumentation panels where reliable connector contacts are essential.
This connector contact is female, designed for use in D-Sub connectors requiring female contacts.
This model belongs to the HARTING D-Sub Standard series, designed for compatibility with HARTING D-Sub connectors.
It features a pin type contact, specifically designed for crimp termination in D-Sub connectors.
