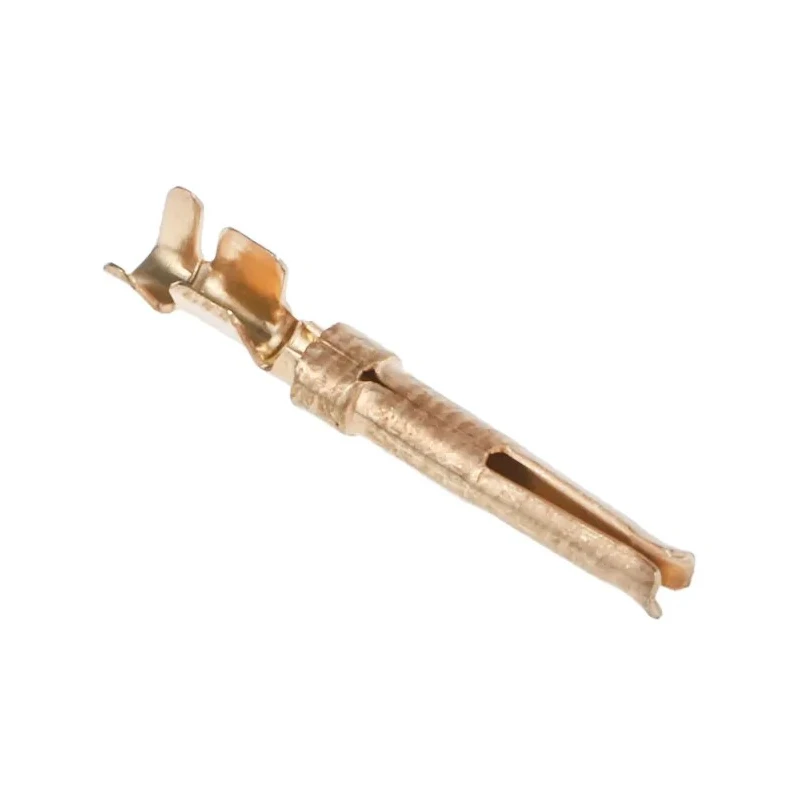

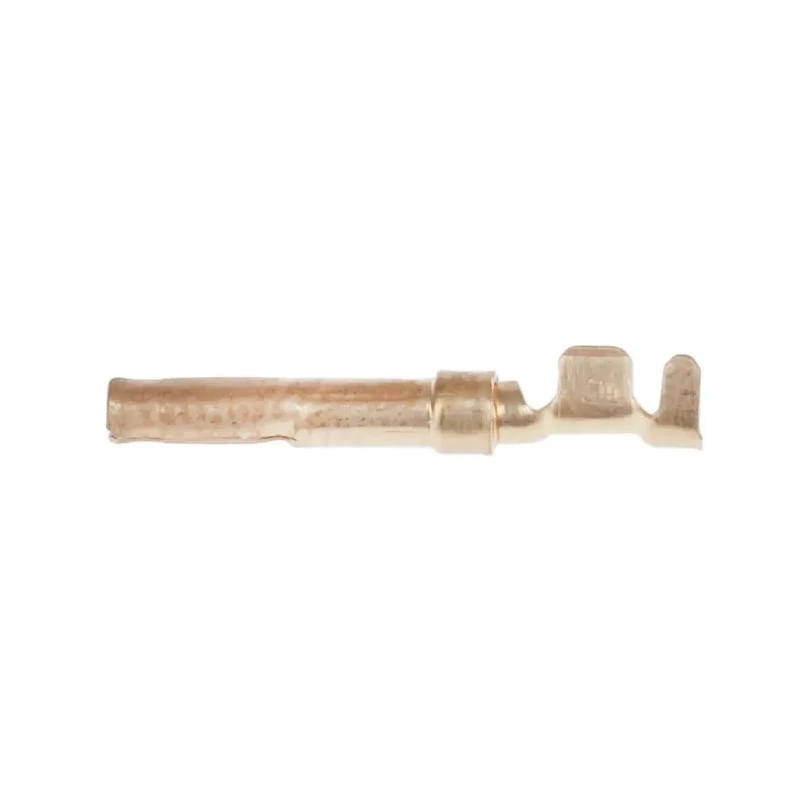

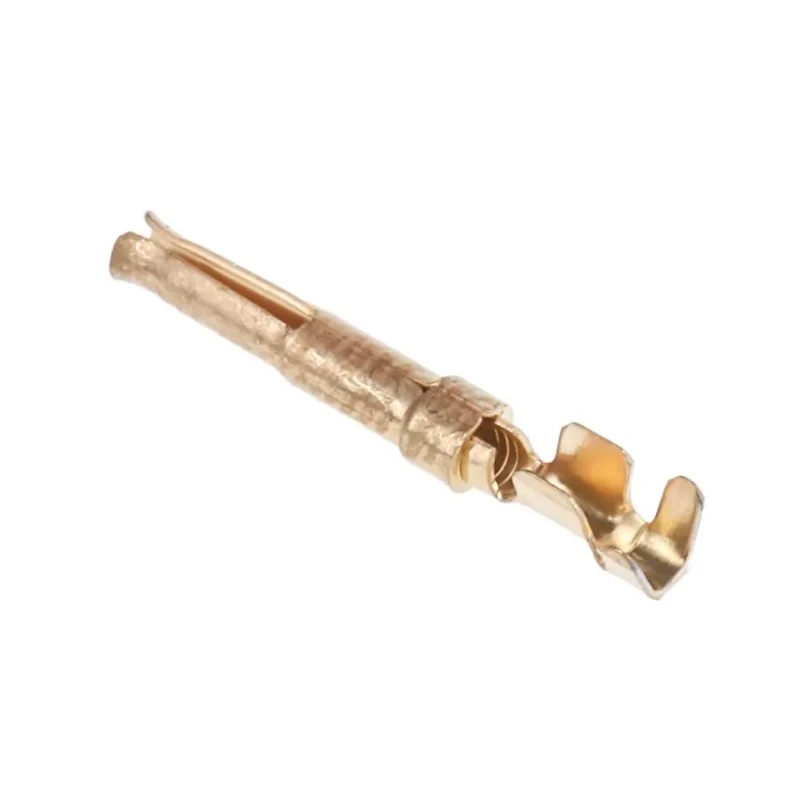

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Female Crimp D-Sub Connector Contact Gold Signal 20 AWG 1-66504-0

TE Connectivity 1-66504-0 is a Female Crimp D-Sub Connector Contact from the AMPLIMITE HDP-20 series, designed specifically for signal applications using 20 AWG wire. It offers a robust and reliable solution for electronic and electrical assemblies requiring secure and high-quality connections.

Manufactured from phosphor bronze, the contact provides superior mechanical strength and excellent electrical conductivity. The gold plating over the contact surface ensures enhanced corrosion resistance and maintains signal integrity in critical applications.

This contact is designed to snap-fit easily into AMPLIMITE connector housings, facilitating straightforward assembly and maintenance. It supports wire sizes ranging from 0.2 mm² (24 AWG) to 0.6 mm² (20 AWG) and is terminated via crimping, which provides secure and reliable electrical connections.

Key electrical specifications include a current rating of 2A and a maximum contact resistance of 15 milliohms, making it well-suited for signal-level transmission. The contact length is 14.1 mm, and the pin diameter is 0.04 inches (1.02 mm), contributing to its compatibility with compact electronic designs.

The product is manufactured in the United States, conforming to high standards of quality and reliability. The TE Connectivity AMPLIMITE HDP-20 series contacts are ideal for industrial, communication, and electronic equipment applications where dependable D-Sub connections are required.

Constructed from phosphor bronze for durability and excellent electrical conductivity. Gold plating on contact area enhances corrosion resistance and signal integrity. Compatible with wire sizes from 0.2mm² (24 AWG) to 0.6mm² (20 AWG).

Designed for easy snap-fit assembly into AMPLIMITE housings. Suitable for signal applications with a current rating of 2 amps. 15 milliohm maximum contact resistance ensures reliable connectivity. Crimp termination facilitates secure and efficient wire connection.

Connector length measures 14.1 millimeters for compact installations. Pin diameter specification: 0.04 inches (1.02 mm). Manufactured in the United States to stringent quality standards. Explore the broad range of TE Connectivity AMPLIMITE connectors at EnvMart for superior D-Sub solutions tailored for electronics manufacturing and system integration.
