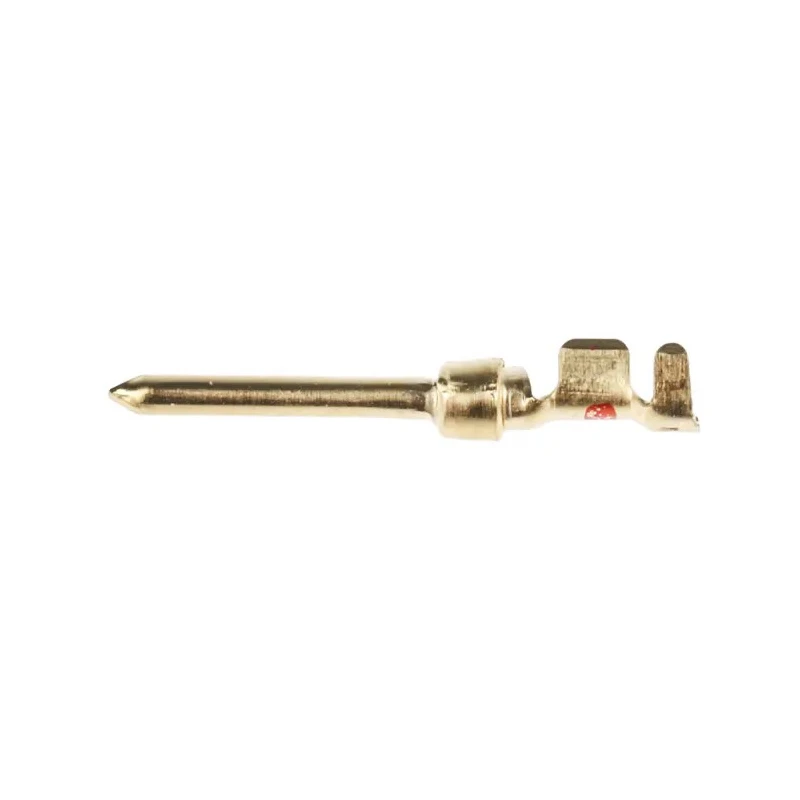

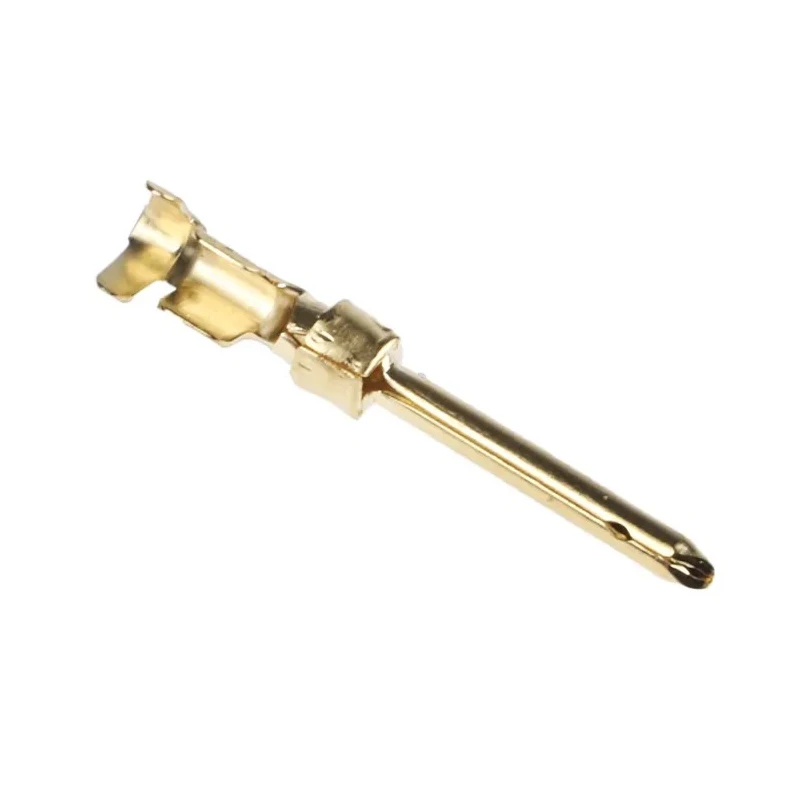

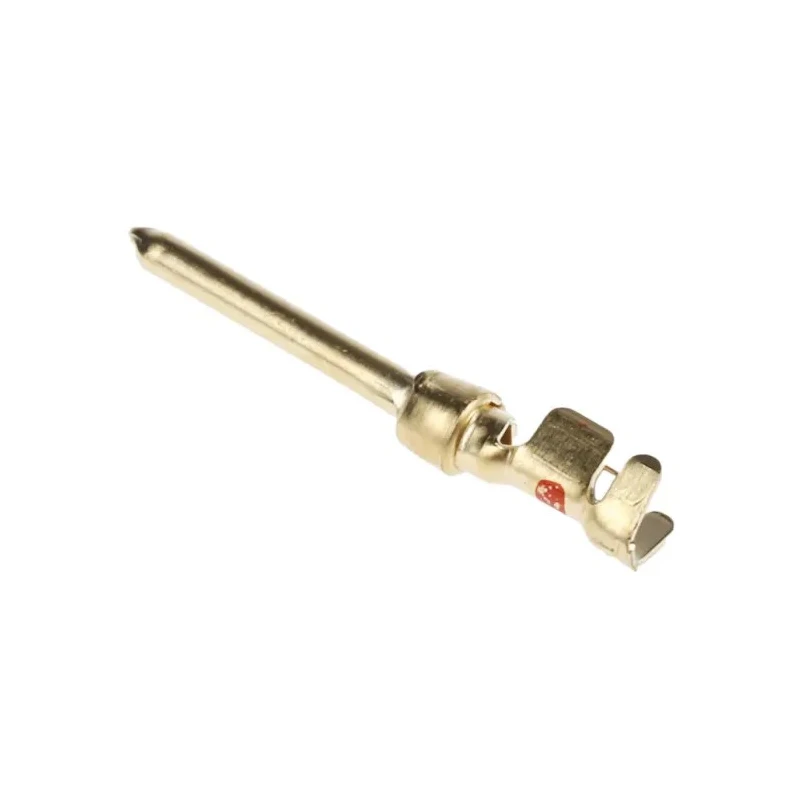

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Male Crimp D-Sub Connector Contact Gold over Nickel 20 AWG 1-66506-0

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Male Crimp D-Sub Connector Contact Gold over Nickel 20 AWG 1-66506-0

Name: TE Connectivity AMPLIMITE HDP-20 Series Size 20 Male Crimp D-Sub Connector Contact Gold over Nickel 20 AWG 1-66506-0
Brand: TE Connectivity
SKU: 137825
Price: 0.37 USD
Availability: InStock



Category D-Sub Connector Contact Brand TE Connectivity Condition New

Specifications

Country of Origin	Poland
Brand	TE Connectivity
Current	1.2A
Length	14.86mm
Gender	Male
Contact Material	Brass
Series	AMPLIMITE HDP-20
Termination Type	Crimp
Contact Type	Signal
Contact Plating	Gold over Nickel
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.6mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG
Contact Size	20
Maximum Contact Resistance	15mΩ
• Pin diameter	0.04 (1.02)
RS PRO Male Crimp D-Sub Connector Contact, Gold over Nickel Plug 20 AWGBrand	RS PRO

Key Features

Constructed with durable brass contact material for longevity.
Gold over nickel plating ensures excellent conductivity and corrosion resistance.
Rated current of 1.2A suitable for low power signal applications.
Designed for crimp termination with compatibility for wire sizes 20 AWG to 24 AWG.
Pin diameter measures 0.04 inches (1.02 mm) ensuring secure fitments.
Manufactured to the AMPLIMITE HDP-20 series standard with a 20DF contact size.

Product Description

TE Connectivity 1-66506-0 Male Crimp D-Sub Connector Contact in AMPLIMITE HDP-20 series is designed for demanding electronic connector applications requiring reliable signal transmission. This connector contact features a brass contact material with gold over nickel plating to ensure excellent electrical conductivity and durability in industrial environments.

The contact size is 20 with a pin diameter of 0.04 inches (1.02 mm) and length of 14.86 mm, making it suitable for precise mating within AMPLIMITE D-Sub connectors. Rated for 1.2 amperes of current, it efficiently handles signal currents while maintaining low contact resistance of 15 milliohms.

Termination is via crimp, compatible with wire gauge sizes from 24 AWG to 20 AWG (0.2 mm² to 0.6 mm²) enabling a solid mechanical and electrical connection. This product is manufactured in Poland and complies with industry requirements without additional approvals.

Typical applications include industrial electronics, telecommunications, computing equipment, and instrumentation where reliable D-Sub connections are critical. The robust design supports electrical signal integrity in harsh environments.

Durable brass contact material for extended service life. Gold over nickel plating offers corrosion resistance and low contact resistance. Compatible with 20 AWG to 24 AWG wire sizes for flexible cabling solutions. Precise dimensions of 14.86 mm length and 0.04 inch pin diameter.

Suitable for high-quality AMPLIMITE HDP-20 series D-Sub connectors. Easy crimp termination ensures consistent electrical performance. Manufactured in Poland adhering to strict quality standards.

This TE Connectivity AMPLIMITE HDP-20 contact is ideal for industrial manufacturing, assembly of electronic instruments, telecommunications equipment, and other applications requiring D-Sub connectors with reliable electrical performance. Explore our Electronics & Electricals category for a wide range of connectors and compatible accessories to complete your projects.
