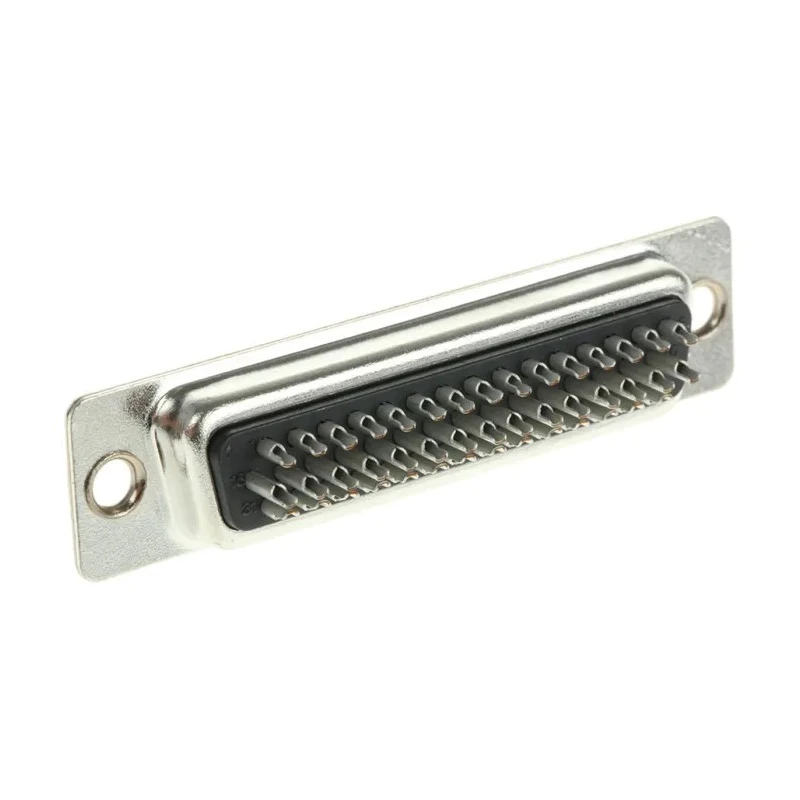

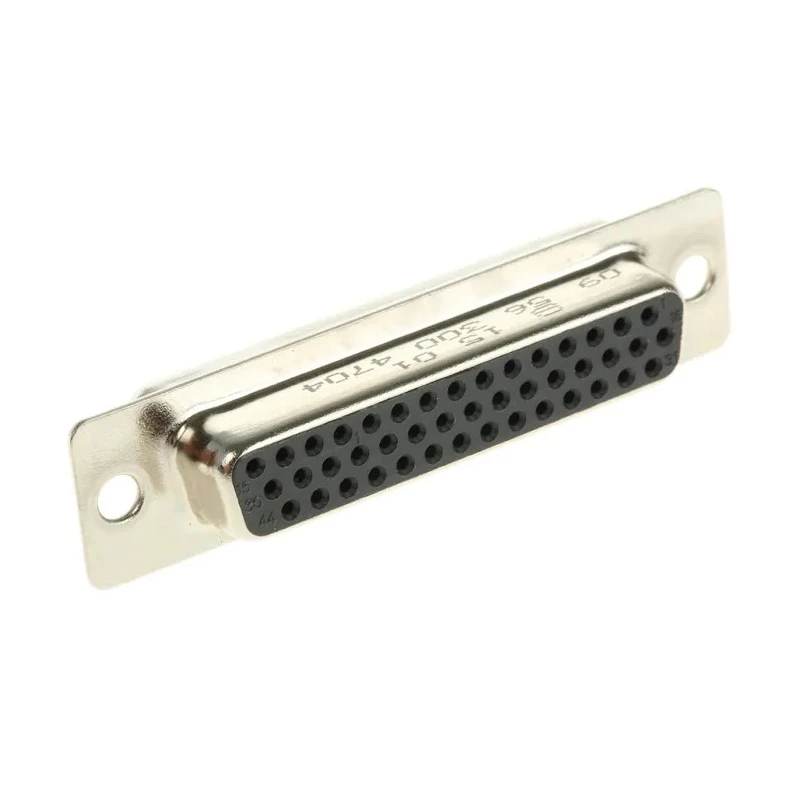

HARTING D-Sub 44 Way Straight 2.29 mm Pitch Cable Mount Connector 1000V 2A 09563004704
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.29mm |
| Contact Plating | Gold |
| Number of Contacts | 44 |
| Contact Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | B |
| HARTING D-Sub 44 Way Straight 2.29 mm Pitch Cable D-Sub ConnectorBrand | HARTING |
| HARTING 44 Way Cable Mount D-sub Connector Socket, 2.29mm PitchBrand | HARTING |
Key Features
- The connector supports a current rating of 2 amps for efficient electrical transmission.
- It features a straight orientation suitable for cable mounting applications.
- Constructed with a steel housing and copper alloy contacts plated with gold for durability and conductivity.
- Operates reliably within temperatures from -55°C up to 105°C.
- Rated for an operating voltage of 1000 volts for robust electronic components integration.
- Designed to meet DIN 41 652 standard with stamped solder cup sockets for over 50 mating cycles.
- The shell size is B, optimized for compact but high contact density.
- Female contact gender facilitates compatible solder termination.
Product Description
HARTING 09563004704 D-Sub 44 Way Straight Cable Mount Connector is engineered for high-density electronic connectivity with 44 female contacts and a pitch of 2.29 mm. This connector features a durable steel housing and high conductivity copper alloy contacts plated with gold to ensure reliable signal and power transmission. It supports a current rating of 2 amps and an operating voltage of 1000 volts, making it suitable for demanding industrial, laboratory, and manufacturing applications requiring secure data and power connections.
The connector's straight orientation and cable mount type provide versatile integration options for cable assemblies. It is designed to withstand operating temperatures ranging from -55°C to 105°C, thereby accommodating diverse environmental conditions.
Compliant with DIN 41 652 part 2, this connector features stamped solder cup sockets that deliver a performance level 3 rating, guaranteeing durability for at least 50 mating cycles without gas testing. The shell size B ensures a compact form factor while maintaining a high contact capacity exceeding standard subminiature D connectors by 70%.
This connector is especially suited for use in electronic components, power connections, and computing interfaces within sectors such as industrial automation, telecommunications, and instrumentation. Its gold-plated contacts enhance resistance to corrosion and improve long-term reliability.
The connector supports a current rating of 2 amps for efficient electrical transmission. It features a straight orientation suitable for cable mounting applications. Constructed with a steel housing and copper alloy contacts plated with gold for durability and conductivity.
Operates reliably within temperatures from -55°C up to 105°C. Rated for an operating voltage of 1000 volts for robust electronic components integration. Designed to meet DIN 41 652 standard with stamped solder cup sockets for over 50 mating cycles.
The shell size is B, optimized for compact but high contact density. Female contact gender facilitates compatible solder termination. Manufactured in China with performance level 3 ensuring quality and endurance.
Choose this HARTING D-Sub Connector for your electronic assemblies to increase reliability and connection density. Explore more products from HARTING and other connector solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 2 amps for efficient electrical transmission.
The connector is rated for an operating voltage of 1000 volts, suitable for robust electronic components integration.
This model operates reliably within a temperature range from -55°C to 105°C.
It features 44 female contacts, designed for high-density electronic connectivity.
The housing is made of steel, and it has copper alloy contacts plated with gold for durability and conductivity.
The pitch size is 2.29 mm, which is optimized for compact, high contact density applications.
It utilizes a solder termination type, which facilitates secure connections.
The shell size is B, providing a compact form factor while maintaining a high contact capacity.
Yes, it is designed to meet the DIN 41 652 standard, ensuring quality and performance.
It is suitable for demanding industrial, laboratory, and manufacturing applications requiring secure data and power connections.
It is designed for over 50 mating cycles, ensuring durability in repeated use.
The connector is manufactured in China.
