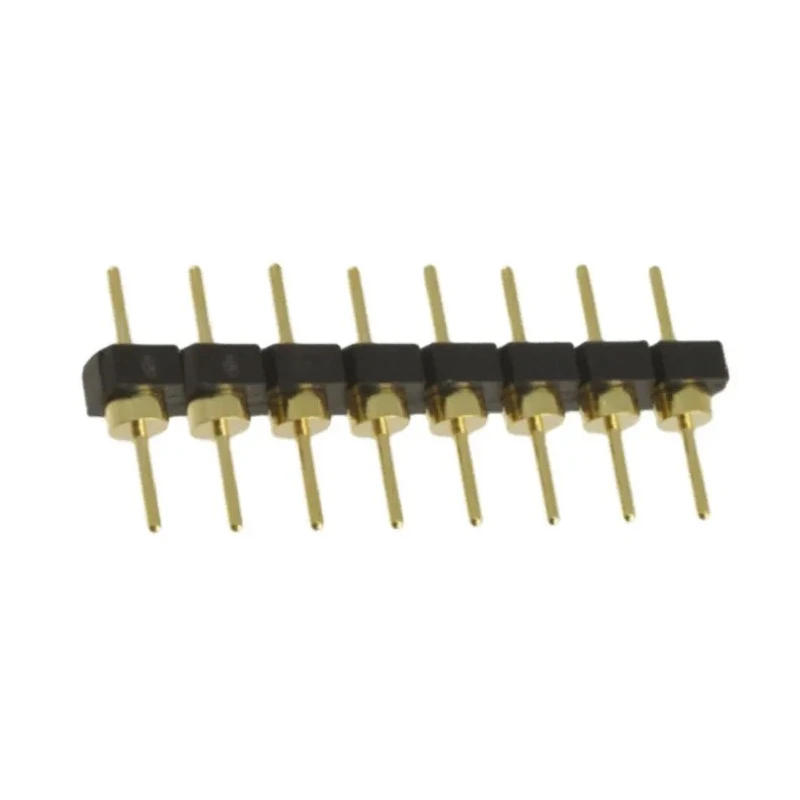

Samtec BBL Series Straight Through Hole Pin Header, 8 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded BBL-108-G-E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 1A |
| Model | BBL-108-G-E |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Brass |
| Series | BBL |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.18mm |
| Mating Pin Length | 2.67mm |
| SL series low profile socket strips | see stock number 767-9329 typically |
| SS series socket strips | see stock number 767-9717 typically |
Key Features
- Features a board-to-board connector system with through hole mount type.
- Manufactured using black glass filled polyester housing for durability.
- Contacts made of brass with gold plating for reliable conductivity.
- Operates effectively between -55°C and 125°C temperature range.
- Includes a 3.18 mm tail pin length and 2.67 mm mating pin length.
- Designed with a straight orientation and male contact gender.
- Low profile design supports 3.89 mm board spacing when mated with compatible sockets.
- Termination type is solder, ensuring secure electrical connection.
Product Description
Samtec BBL-108-G-E is a high-quality straight through hole pin header designed for electronic and industrial applications. This header provides 8 contacts arranged in a single row with a 2.54 mm pitch, making it suitable for precise board-to-board connections. The unshrouded design facilitates easy mating with compatible connectors.
The housing is made from robust black glass filled polyester material, ensuring excellent mechanical strength and durability in operational environments. Contacts are crafted from brass and plated with gold, offering superior conductivity and corrosion resistance.
Operating temperature ranges from -55°C to 125°C, accommodating a broad spectrum of industrial and electronic applications. The header features a tail pin length of 3.18 mm and mating pin length of 2.67 mm, optimized for solder termination and secure connections.
Its straight orientation and male contact gender support common through hole mounting on PCBs, ensuring compatibility with standard industry board layouts. When paired with SL series low profile socket strips, this header achieves a compact 3.89 mm board spacing, contributing to efficient PCB design and space saving.
This product is ideal for use in industrial electronics, manufacturing equipment, instrumentation, and other applications requiring reliable connector performance. Board-to-board connector system with through hole mount type.
Black glass filled polyester housing material. Brass contacts plated with gold for high conductivity. Wide operating temperature range from -55°C to +125°C. Single row, 8 contacts at 2.54 mm pitch. Straight orientation and male contact gender.
Solder termination ensures secure connections. Low profile design compatible with SL series socket strips. Explore our comprehensive range of PCB Headers and connectors at EnvMart for all your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 2.54 mm, which allows for precise board-to-board connections.
This model can operate effectively at a maximum temperature of 125°C.
It features 8 contacts arranged in a single row.
The housing is made from black glass filled polyester, while the contacts are crafted from brass and plated with gold for conductivity.
The tail pin length is 3.18 mm, optimized for solder termination.
It uses solder termination to ensure secure electrical connections.
The contact gender of this pin header is male, suitable for common through hole mounting.
The minimum operating temperature is -55°C, accommodating a wide range of applications.
Yes, it is compatible with SL series low profile socket strips, achieving a compact 3.89 mm board spacing when mated.
This pin header has a current rating of 1A, suitable for various electronic applications.
It employs a board-to-board connector system with a through hole mount type.
The unshrouded design facilitates easy mating with compatible connectors, enhancing usability in PCB layouts.
