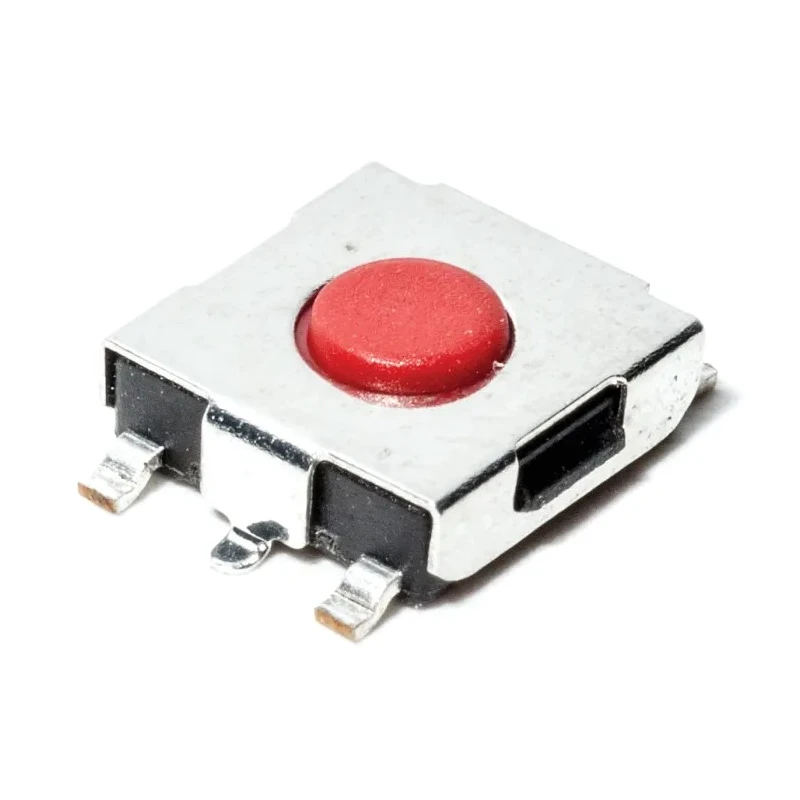

C & K Red Tactile Switch Button SPST Momentary 50mA 12V dc Surface Mount IP40

Name: C & K Red Tactile Switch Button SPST Momentary 50mA 12V dc Surface Mount IP40
Brand: C & K
SKU: 204355
Price: 20.22 USD
Availability: InStock



Category Tactile Switch Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Height	2mm
Length	6.4mm
Model	IP40
IP Rating	IP40
Width	6.3mm
Mount Type	Surface
Series	PTS
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-20°C
Terminal type	Gull Wing
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Red
Contact DC Voltage	12V dc
Actuator Style	Button
Actuator Orientation	Straight
Switch Contact Current	50mA
Operating Force	1.6N
Mechanical Life	200000Cycles

Key Features

The switch features a compact 6.4mm by 6.3mm footprint suitable for space-limited applications.
It has a red-colored actuator button with straight orientation for easy identification and operation.
The IP40 rating ensures protection against solids, suitable for many industrial and consumer electronics.
Operates reliably between -20°C and 85°C with an operating force of 1.6N.
Designed with gull wing terminal type and silver plated terminations for surface mounting.
The mechanical life expectancy is rated at 200,000 cycles for long-term durability.
The switch is RoHS compliant and manufactured in China with the PTS641 series quality standards.

Product Description

C & K PTS641 SM25 SMTR2 LFS IP40 Red Tactile Switch is a compact surface mount push button switch designed for electronics and electrical applications. It features a single pole single throw (SPST) momentary contact operation, rated for 50mA current at 12V dc, making it ideal for low-power control circuits and input devices.

The switch measures 6.4mm in length and 6.3mm in width with a low profile height of 2mm. Its red actuator button provides visual differentiation and a tactile feel with an operating force of 1.6 newtons. The straight actuator style contributes to ease of installation and operation in confined spaces.

Designed with a surface mount gull wing termination, it enables efficient PCB mounting and soldering. The IP40 ingress protection rating ensures the switch is protected against solid foreign objects greater than 1mm, suitable for use in industrial, consumer electronics, metering, and white goods applications.

The PTS641 series is RoHS compliant, ensuring environmental safety in manufacturing and use. With a mechanical life rated at 200,000 cycles, these switches provide long-lasting operational reliability. The operating temperature range from -20°C to +85°C supports a variety of climates and operating conditions.

The compact footprint and color-coded actuator make it highly suitable for home and garden equipment controls. Its gull wing solder terminals ensure strong mechanical and electrical connection. Widely applied in keyboards, metering devices, and other tactile input systems.

The series offers various height options with consistent electrical characteristics. Manufactured in China maintaining quality consistent with C & K brand standards. Explore the range of C & K Tactile Switches at EnvMart for reliable and effective electronic switching solutions.
