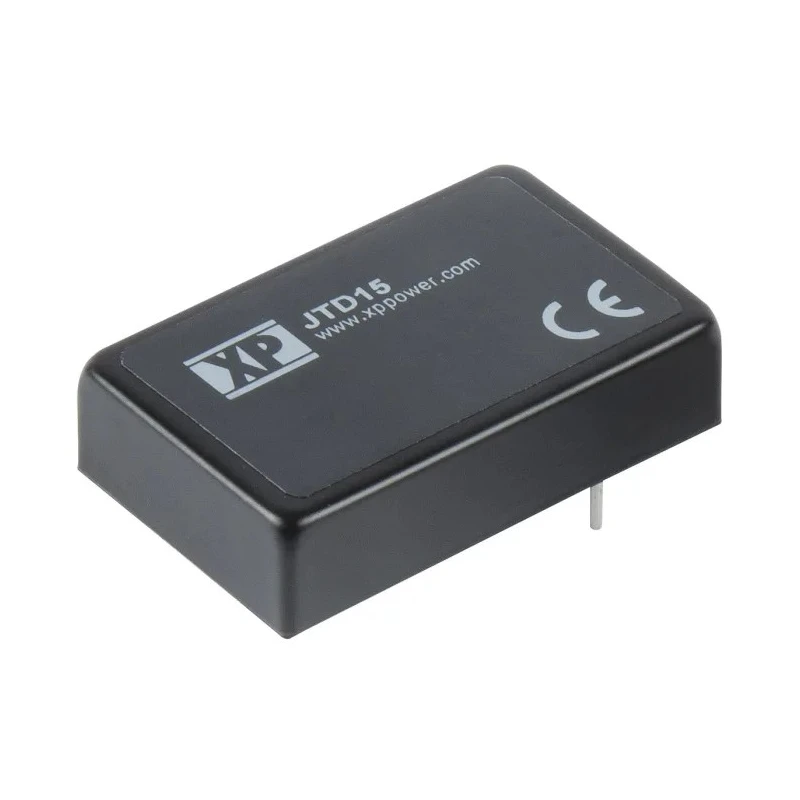

XP Power Isolated DC/DC Converter 15V DC Output, 500 mA, 75V DC Max Input, 15W, Through Hole Mount, Operating Temp JTD15
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JTD15 DC/DC Converter, 15V dc/ 500 mA, 75 |
| Brand | XP Power |
| Efficiency | 86% |
| Length | 40.64mm |
| Model | JTD15 |
| Depth | 10.4mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JTD15 |
| Maximum Operating Temperature | 100°C |
| Package Type | 1.6 x 1 in |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 500mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
| Wide 4 | 1 input range |
Key Features
- This converter features a regulated 15V DC output at 500 mA current capacity.
- Supports a wide input voltage range of 18V to 75V DC for versatile compatibility.
- The unit is designed for through-hole mounting to simplify PCB integration.
- Its compact 1.6 x 1 inch footprint allows space-efficient installation.
- It operates reliably in temperature ranges from -40°C up to 100°C for harsh environments.
- The 1.6kV DC isolation voltage ensures electrical safety and noise reduction.
- Achieves an efficient energy conversion rate of 86% to minimize power loss.
- Dual outputs and ±10% output voltage adjustment enable flexible system design.
Product Description
XP Power JTD15 Series isolated DC/DC converters provide robust and regulated dual output power solutions delivering 15 watts per device. Model JTD15 features a compact through-hole package sized at 1.6 by 1 inch, ideal for integration into diverse electronic devices and industrial control systems.
Designed to operate from 18V up to a maximum of 75V DC input voltage, this converter accommodates fluctuating power supply conditions. The converter supports dual outputs with the primary regulated at 15V and capable of supplying 500 mA continuous current. ±10% output voltage adjustment permits fine tuning for precision applications.
With an isolation voltage of 1.6kV DC, this converter ensures electrical isolation between input and output segments to reduce interference and enhance safety. Its 86% operational efficiency minimizes thermal strain and energy waste. The device stands up to temperature extremes ranging from -40°C to +100°C, suitable for industrial and rugged environments.
The mounting form factor is through-hole to facilitate straightforward PCB assembly. Length, width, and depth dimensions are approximately 40.64mm x 25.4mm x 10.4mm, enabling compact electronic device housing.
This product is manufactured in Taiwan, Province of China, and is backed by XP Power's 3-year warranty, underscoring the reliability expected of professional power converters used in manufacturing, automation, instrumentation, and communication equipment.
Regulated 15V DC output at 0.5A current. Wide input range from 18V to 75V DC for flexibility. Compact 1.6" x 1" through-hole footprint for easy mounting. Isolation voltage of 1.6kV DC enhances safety and noise immunity. High efficiency of 86% reduces energy losses and heat.
Operating temperature range from -40°C to +100°C for harsh environments. Dual outputs plus ±10% adjustable output voltage. XP Power quality with a 3-year warranty for durability.
Ideal for industrial, laboratory, and communication equipment power supply applications, the XP Power JTD15 converter series offers dependable voltage conversion and electrical isolation with compact form and flexible input options. Explore EnvMart’s extensive Electronics & Electricals catalog for similar DC/DC Converters and power supply solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The JTD15 converter provides a regulated output voltage of 15V DC with a current capacity of 500 mA.
It supports a wide input voltage range from 18V to 75V DC, allowing for versatile compatibility with various power supply conditions.
This model has a compact footprint measuring approximately 40.64 mm in length, 25.4 mm in width, and 10.4 mm in depth.
The converter achieves an operational efficiency of 86%, which helps minimize power loss during energy conversion.
The JTD15 features an isolation voltage of 1.6 kV DC, ensuring electrical safety and reducing noise interference between input and output.
It operates reliably in temperature extremes from -40°C to +100°C, making it suitable for harsh environments.
This unit is designed for through-hole mounting, facilitating straightforward integration into printed circuit boards (PCBs).
Yes, it features dual outputs with a ±10% output voltage adjustment, allowing for fine-tuning in various applications.
The maximum output power of this converter is 15 watts, suitable for various power supply applications.
It is ideal for use in industrial, laboratory, and communication equipment power supply applications due to its robust design.
The JTD15 converter is manufactured in Taiwan, Province of China.
This converter is part of the JTD15 series of isolated DC/DC converters, which are designed for reliable power solutions.
