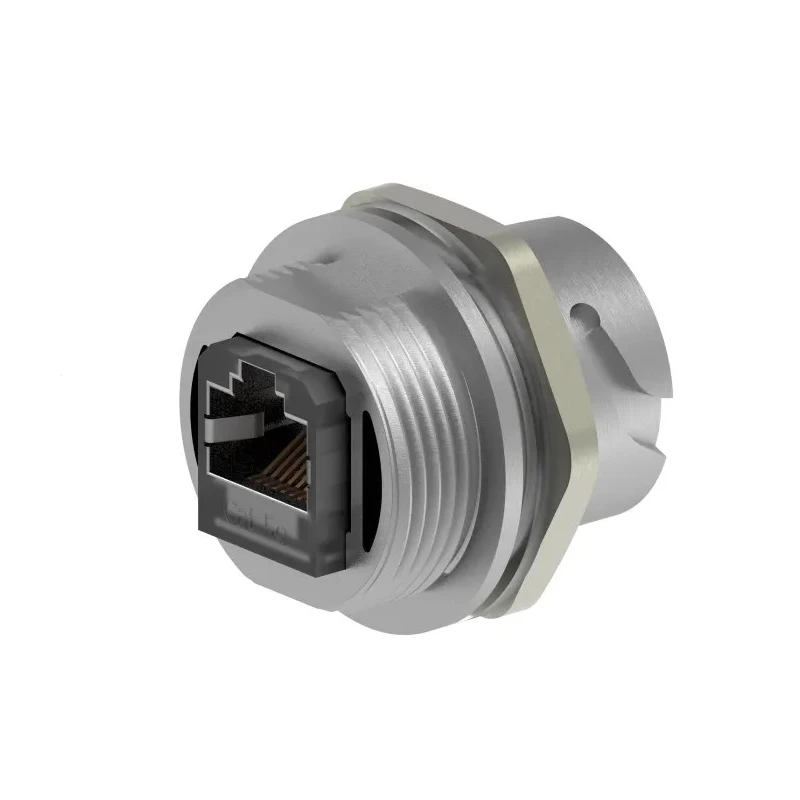

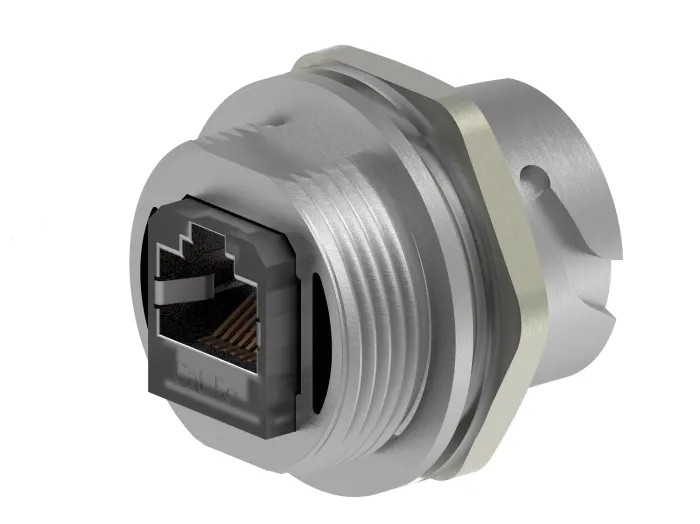

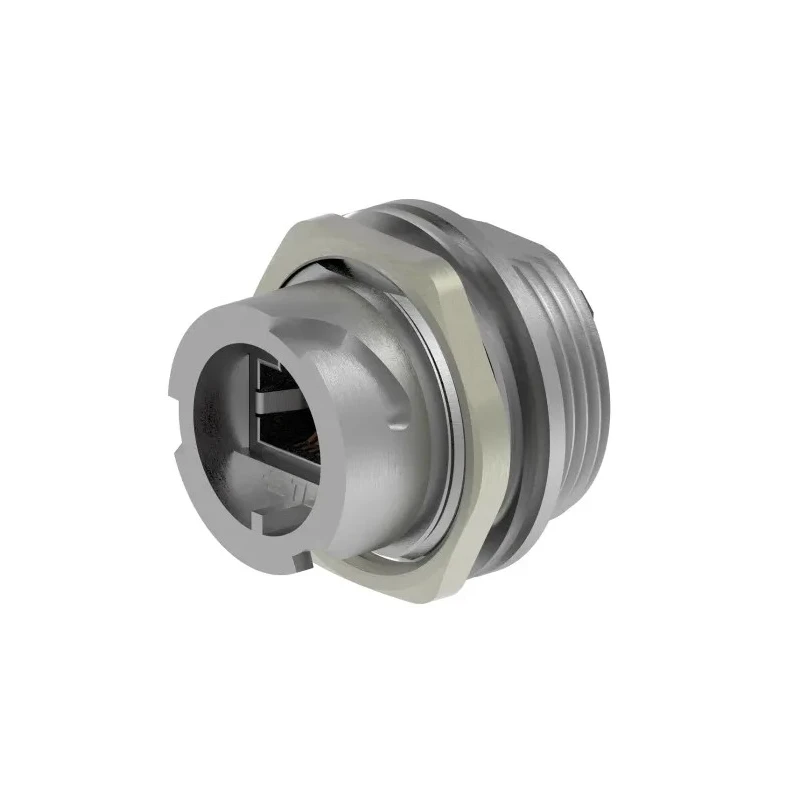

TE Connectivity 2355443 Series RJ45 Connector Female Panel Mount Cat5e Shielded 1 Port RJ45

TE Connectivity RJ45 2355443 Series RJ45 Connector Female Panel Mount is a high-quality Ethernet Connector designed to deliver reliable network connections in demanding industrial and electronic environments. It supports Cat5e LAN category and features shielded construction to minimize electromagnetic interference.

This connector incorporates double-bayonet locking mechanisms, ensuring an IP67 ingress protection rating, making it suitable for harsh conditions where dust and water resistance are critical.

The rugged housing options include flame-resistant, glass reinforced PBT polymer or a die-cast nickel-plated zinc variant, both providing exceptional resistance to chemicals and UV radiation. The phosphor bronze contact material plated with gold over nickel ensures excellent electrical conductivity and durability over repeated mating cycles.

Designed for panel mount applications, the bulkhead receptacle allows versatile installation either inside or outside panel cut-outs, enhancing design flexibility in electronic system assemblies.

Operating temperature ranges from -40°C to 85°C, allowing dependable operation in both cold and hot environments. This connector complies with RoHS and EIA/TIA-568-B.2 standards, meeting industry requirements for safety and performance.

Typical use cases include industrial networking equipment, telecom systems, electronic instrumentation, and other demanding environments where robust, shielded Ethernet connections are necessary.

Double-bayonet locking ensures reliable IP67 sealing in harsh conditions. Bulkhead receptacle design allows panel mount flexibility. Rugged housing of flame-resistant PBT or nickel-plated zinc for chemical and UV resistance.

Phosphor bronze contacts with gold over nickel plating provide durability and performance. Operating temperature range from -40°C to 85°C. Compliant with RoHS and EIA/TIA-568-B.2 standards. Cat5e LAN category for fast Ethernet connectivity.

Female circular connector designed for panel mounting. Not intended for hazardous area applications. Ideal for industrial, telecom, and electronic networking applications. Explore a wide range of high-quality connectors at EnvMart to meet your industrial and electronic component needs.
