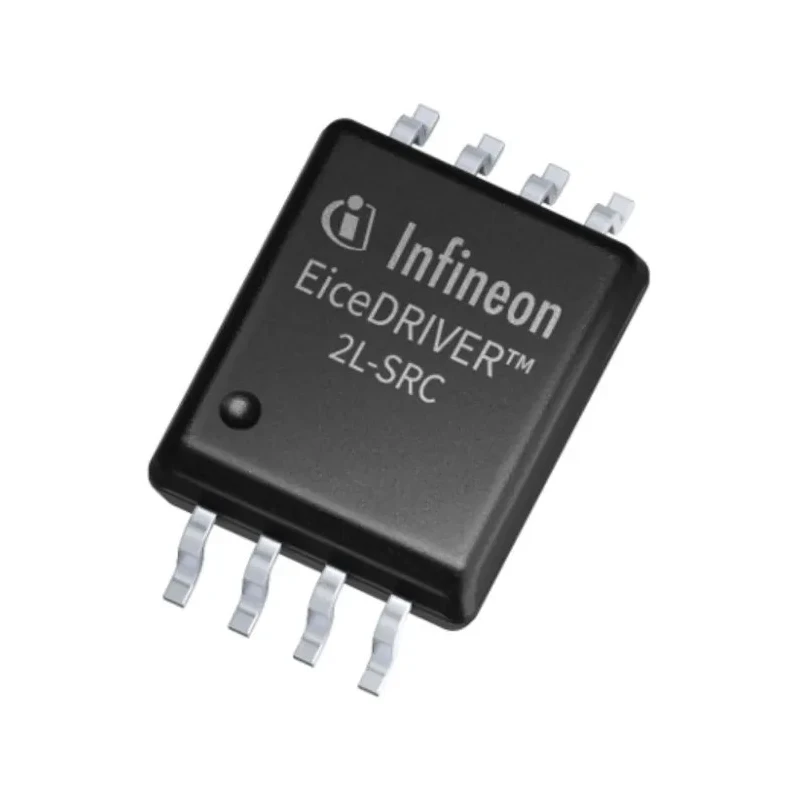

Infineon MOSFET Gate Driver, 18 A Output Current, 8-Pin PG-DSO Package, 5-15 V Supply Voltage, Surface 1ED3251MC12HXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 2.65mm |
| Length | 7.5mm |
| Model | 1ED3251MC12HXUMA1 |
| Width | 6.4mm |
| Mount Type | Surface |
| Series | 1ED3251MC12H |
| Output Current | 18A |
| Maximum Operating Temperature | 125°C |
| Package Type | PG-DSO |
| Minimum Operating Temperature | -40°C |
| Rise Time | 30ns |
| Pin Count | 8 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| Fall Time | 15ns |
| Driver Type | MOSFET |
Key Features
- The device supports single channel isolated gate driving with two-level slew-rate control.
- It operates reliably over a temperature range from -40°C to 125°C.
- Fast switching characteristics include a fall time of 15 ns and rise time of 30 ns.
- The gate driver features a thermal resistance of 104 K/W for efficient heat dissipation.
- Compact dimensions with 7.5 mm length, 6.4 mm width, and 2.65 mm height allow space-efficient PCB design.
- Compatible with 3.3 V and 5 V input supply voltages for flexible integration.
- Designed for surface mounting with a standardized PG-DSO package type.
- It is ideal for power management applications requiring MOSFET drivers.
Product Description
Infineon 1ED3251MC12HXUMA1 is a high-performance MOSFET Gate Driver IC designed for power management applications. It offers an 18 A output current capability and is housed in a compact 8-pin PG-DSO surface mount package, compatible with supply voltages ranging from 5 V to 15 V. This device supports single channel isolated gate driving with a two-level slew-rate control mechanism, ensuring optimal control of switching devices.
Operating reliably across a wide temperature range of -40°C to 125°C, the gate driver features fast switching times with a fall time of just 15 ns and a rise time of 30 ns, enhancing efficiency and responsiveness in electronic circuits. The thermal resistance of 104 K/W enables efficient heat dissipation, maintaining stable operation under high load conditions.
Compact in size with dimensions of 7.5 mm length, 6.4 mm width, and 2.65 mm height, the device allows for space-saving design on PCBs. It supports input voltages of 3.3 V and 5 V, making it versatile for integration into various systems. The surface mount PG-DSO package ensures ease of assembly and reliable connections.
This MOSFET Gate Driver is suitable for a range of industrial, commercial, and manufacturing electronic applications requiring precise and efficient power switching control. Its design enhances the performance of power electronics circuits in automotive, industrial control, and HVAC systems.
The device supports single channel isolated gate driving with two-level slew-rate control. It operates reliably over a temperature range from -40°C to 125°C. Fast switching characteristics include a fall time of 15 ns and rise time of 30 ns.
The gate driver features a thermal resistance of 104 K/W for efficient heat dissipation. Compact dimensions with 7.5 mm length, 6.4 mm width, and 2.65 mm height allow space-efficient PCB design. Compatible with 3.3 V and 5 V input supply voltages for flexible integration.
Designed for surface mounting with a standardized PG-DSO package type. It is ideal for power management applications requiring MOSFET drivers. Explore the extensive range of power management components at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an output current capability of 18 A, making it suitable for high-performance applications.
It operates reliably over a temperature range from -40°C to 125°C, ensuring performance in various environmental conditions.
The device has compact dimensions of 7.5 mm in length, 6.4 mm in width, and 2.65 mm in height, allowing for space-efficient PCB design.
The rise time is 30 ns and the fall time is 15 ns, contributing to its fast switching characteristics.
It is compatible with supply voltages ranging from 5 V to 15 V, allowing flexible integration into various systems.
This device is housed in an 8-pin PG-DSO surface mount package, designed for ease of assembly and reliable connections.
It supports single channel isolated gate driving with two-level slew-rate control, ensuring optimal performance in power management applications.
The thermal resistance is 104 K/W, which helps in efficient heat dissipation during operation.
Yes, it is designed for power management applications, including automotive, industrial control, and HVAC systems.
This model features a pin count of 8, which is standard for its package type.
The minimum operating temperature is -40°C, allowing it to function in cold environments.
It belongs to the 1ED3251MC12H series, which is known for its high-performance characteristics.
