Hengstler RI58-O Series Incremental Encoder 30V DC, 1024 PPR, Push Pull Signal, Solid 10 mm Shaft RI58-0/1024EK.42KB

Free Delivery in India | Lowest Global Shipping Charges

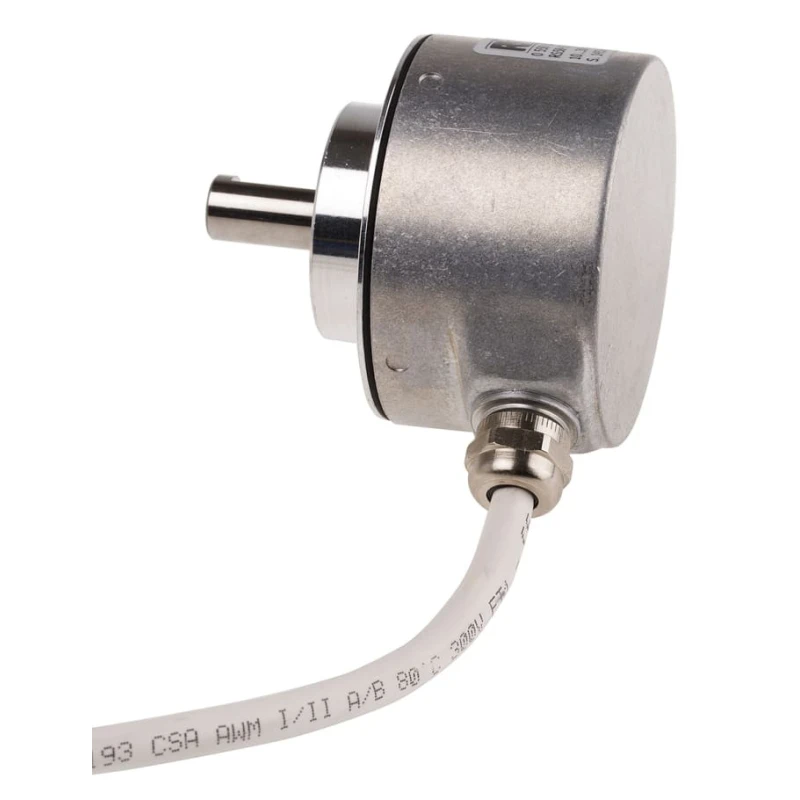

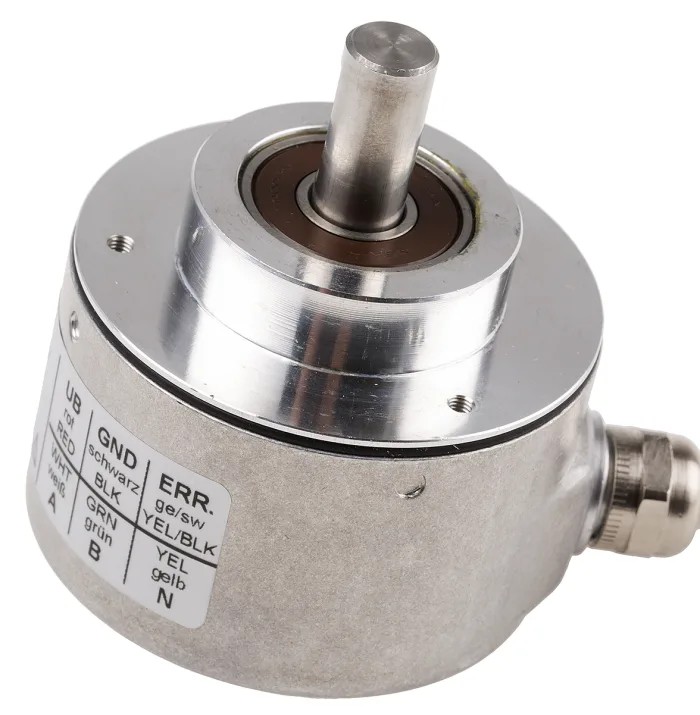

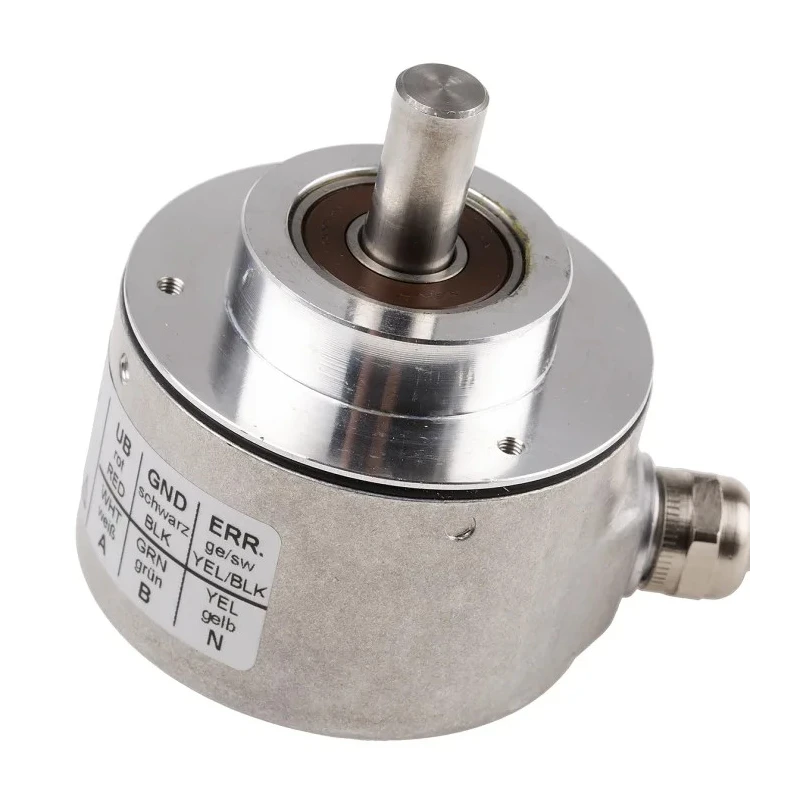

Hengstler RI58-O Series Incremental Encoder 30V DC, 1024 PPR, Push Pull Signal, Solid 10 mm Shaft RI58-0/1024EK.42KB

Name: Hengstler RI58-O Series Incremental Encoder 30V DC, 1024 PPR, Push Pull Signal, Solid 10 mm Shaft RI58-0/1024EK.42KB
Brand: Hengstler
SKU: 181572
Price: 361.96 USD
Availability: InStock



Category Incremental Encoder Brand Hengstler Condition New

Specifications

Country of Origin	Germany
Brand	Hengstler
Model	RI58-0/1024EK.42KB
IP Rating	IP64, IP65, IP67
Mount Type	Flange
Series	RI58-O
Overall Width	57.5mm
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Shaft Diameter	10mm
Overall height	57.5mm
Switching Frequency	300kHz
Shaft Type	Solid
Terminal type	Cable
Interface Type	Push Pull
Pulses per Revolution	1024ppr
Standards/Approvals	CE, UL
Maximum Supply Voltage	30V dc
Overall Depth	58mm
Encoder Technology	Incremental
Maximum Revolutions	10000rpm
Output Signal Type	Push Pull
Encoders	OptoAsic technology for greater reliability
Pulse shape	Square wave, 1:1 duty cycle

Key Features

Provides high precision incremental encoding with 1024 pulses per revolution.
Supports a maximum rotational speed of 10,000 rpm for versatile applications.
Robust solid 10 mm shaft design ensures durability and reliability.
Equipped with push-pull signal output for clear and stable data transmission.
Flange mount type with IP64, IP65, and IP67 rated protection for harsh environments.
Operates reliably in temperatures from -10°C to 70°C.
Compact dimensions with overall size approximately 57.5 mm in height and width, and 58 mm depth.
Utilizes OptoAsic technology for enhanced encoder reliability and stable square wave pulse shape.

Product Description

Hengstler RI58-0/1024EK.42KB incremental encoder is a precision sensor designed for accurate rotational measurement in industrial automation, motion control, and conveyor systems. It operates on a 30V DC supply and provides 1024 pulses per revolution (ppr) with a maximum rotational speed of 10,000 rpm. This encoder features a solid 10 mm shaft combined with push-pull interface output signals, delivering reliable and noise-resistant performance.

The device is constructed with OptoAsic technology, enhancing reliability and providing a stable square wave pulse shape with a 1:1 duty cycle. Its flange mount type and robust IP64, IP65, and IP67-rated housing protect the encoder from dust and water ingress, making it suitable for harsh industrial environments.

Operating within a temperature range of -10°C to 70°C, it is suited for a wide variety of applications including industrial manufacturing, robotics, HVAC systems, and laboratory instrumentation. The radial cable termination further facilitates straightforward connectivity and maintenance.

Key physical dimensions include an overall height and width of 57.5 mm and a depth of 58 mm, providing a compact and space-saving design for installation. Certified by CE and UL standards, this encoder meets essential safety and quality requirements.

High pulse accuracy with 1024 ppr. Solid shaft of 10 mm diameter for robust performance. Push-pull output signal ensures clear data transmission. Wide operating temperature range for challenging environments. IP64, IP65, IP67 protection ratings for industrial reliability.

Compact flange mount design. OptoAsic technology for enhanced reliability. CE and UL certified. Radial cable termination for easy integration. Suitable for automation, motion control, and industrial applications. Explore more products in the Electronics & Electricals > Sensors > Incremental Encoder category on EnvMart for comprehensive automation and control solutions.
