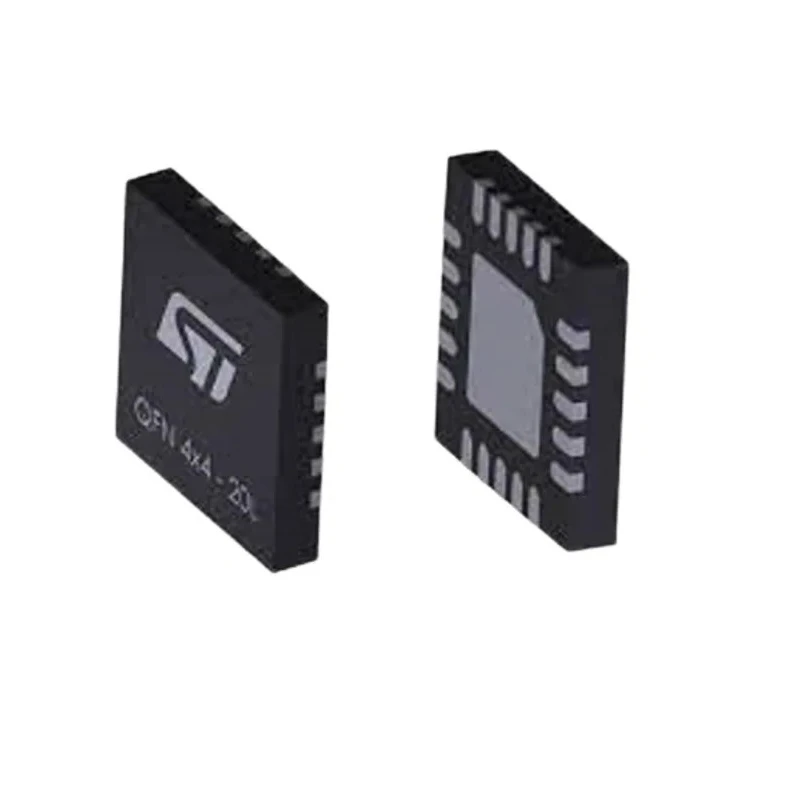

STMicroelectronics USB Controller 5.5V USB Type C 20-Pin OFN Surface Mount TCPP03-M20
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 800μm |
| Length | 4.05mm |
| Model | TCPP03-M20 |
| Mount Type | Surface |
| Series | TCPP03-M20 |
| Maximum Operating Temperature | 125°C |
| Package Type | OFN |
| Sub Type | USB Interface |
| Minimum Operating Temperature | -40°C |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 2.7mA |
| USB Specification | USB Type C |
| Supported Protocols | USB Type C |
Key Features
- Supports USB Type C and USB interface protocols.
- Provides ESD protection compliant with IEC 61000-4-2 Level 4.
- Operates in a temperature range from -40°C to 125°C.
- Surface mount OFN package with 20 pins and compact 4.05 mm length.
- Supply current is low at 2.7 mA for power efficiency.
- Integrated discharge on VBUS and VCONN lines for safety.
- I2C communication supports two addresses for flexibility.
- Over voltage and over temperature protections enhance device reliability.
Product Description
STMicroelectronics TCPP03-M20 USB Controller offers a reliable solution for USB Type C dual role power applications by providing integrated protections and functionalities. It operates at a maximum supply voltage of 5.5V and minimum 2.7V, featuring a 20-pin OFN surface mount package with compact dimensions (4.05 mm length and 800 μm height).
This device is engineered to safely comply with USB-C Power Delivery specifications, incorporating discharge on VBUS and VCONN, VBUS current sense amplifier with analog output, and ESD protections compliant with IEC 61000-4-2 Level 4 (±8 kV contact discharge, ±15 kV air discharge).
Additional protections include VCONN over current protection (100 mW max), over voltage protection (6 V max), over voltage protection on CC lines against short-to-VBUS, and over temperature protection with a typical threshold of 150 °C.
The TCPP03-M20 supports I2C communication with two available addresses, enabling seamless integration in USB Type C solutions. Dead battery management is integrated to enhance USB power delivery robustness.
Operating temperature spans from -40°C to 125°C, making it suitable for diverse industrial, electronic, and computing applications requiring USB Type C interface ICs. Supports USB Type C and USB interface protocols. Provides ESD protection compliant with IEC 61000-4-2 Level 4.
Operates in a temperature range from -40°C to 125°C. Surface mount OFN package with 20 pins and compact 4.05 mm length. Supply current is low at 2.7 mA for power efficiency. Integrated discharge on VBUS and VCONN lines for safety.
I2C communication supports two addresses for flexibility. Over voltage and over temperature protections enhance device reliability. Dead battery management integrated for robust USB-C power delivery.
This product is ideal for industrial, electronic devices, computing peripherals, and other applications requiring efficient USB Type C power management and protection solutions. Explore more USB Interface IC products from STMicroelectronics at EnvMart.
Explore more products in our USB Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5.5V.
It operates within a temperature range of -40°C to 125°C.
This model features a total of 20 pins.
It is packaged in an OFN (Organic Flat No-lead) type.
This USB controller supports USB Type C protocols.
The supply current is low at 2.7 mA, which enhances power efficiency.
Yes, it provides ESD protection compliant with IEC 61000-4-2 Level 4.
It features over voltage protection with a maximum threshold of 6V.
Yes, it supports I2C communication with two available addresses for flexibility.
The height of this model is 800 μm.
It includes integrated discharge on VBUS and VCONN lines, over current protection, and over temperature protection.
The country of origin for this model is India.
