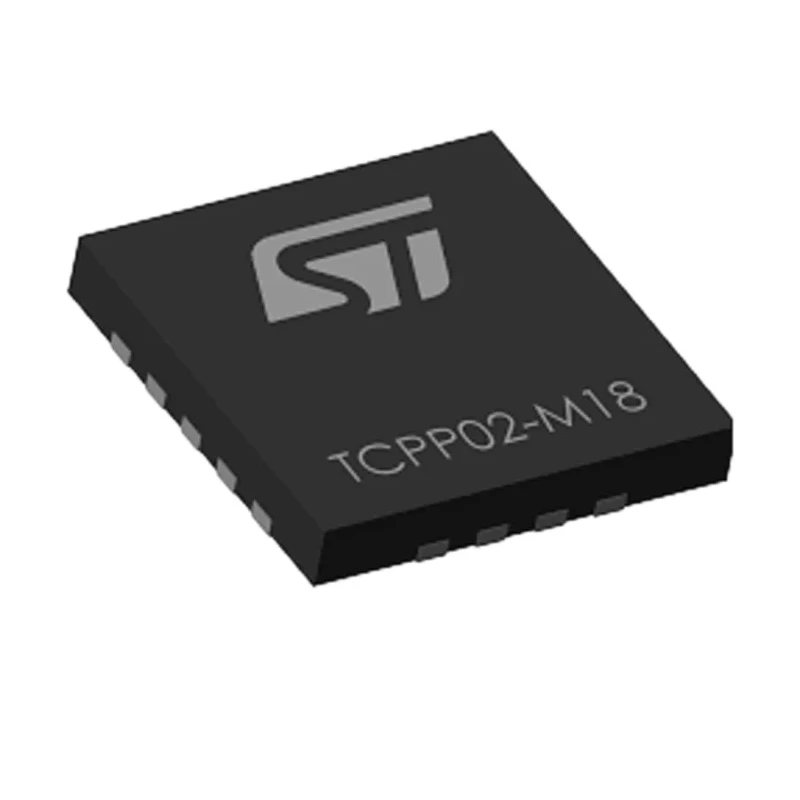

STMicroelectronics USB Controller USB Type C 5.5V 2.7V 18-Pin QFN-18 TCPP02-M18

STMicroelectronics TCPP02-M18 is a USB Controller designed for USB Type C interfaces with a maximum supply voltage of 5.5V and minimum of 2.7V in a compact 18-Pin QFN package measuring 3.5mm in length and 600μm in height.

This USB Controller integrates multiple protections and safety features to comply with USB-C standards. It includes robust ESD protection compliant with IEC61000-4-2 level 4, protecting communication channel pins (CC1 and CC2) on the USB connector against electrostatic shocks.

The device provides overvoltage protection on the CC lines to prevent damage from short circuits with the VBUS line. It also features programmable VBUS overcurrent protection for external circuitry, ensuring safe operation under fault conditions.

Additional integrated functional blocks include a charge pump and gate driver for external N-channel MOSFETs, VBUS current sensing with an analog output, and discharge control for VBUS and VCONN lines for power management.

The TCPP02-M18 supports I2C communication with dual addressability for configuration and monitoring. It is fully compliant with the USB-C power delivery standard 3.1, supporting Standard Power Range (SPR) applications up to 100 W.

Operating reliably over a wide temperature range from -40°C to 125°C, this device is ideal for embedding into USB Type-C source solutions requiring cost-effective and comprehensive protection features.

Supports USB Type C protocol with integrated ESD protection compliant with IEC61000-4-2 level 4. Overvoltage and overcurrent protection ensure safe USB-C source operation. Surface mount QFN-18 package with a compact length of 3.5mm and height of 600μm.

Wide operating temperature range from -40°C to 125°C. Integrated charge pump and gate driver for external N-channel MOSFET. Provides VBUS current sense with analog output and discharge control for VBUS and VCONN lines. Compliant with USB-C power delivery standard 3.1 supporting up to 100W power.

I2C communication interface with selectable addresses for configuration. Designed for safe and cost-effective USB Type-C source solutions.

This USB Controller suits applications in industrial electronics, consumer devices, and portable electronics requiring reliable USB Type-C interface protection and control. It is an ideal choice for designers developing USB power delivery-compliant source products.
