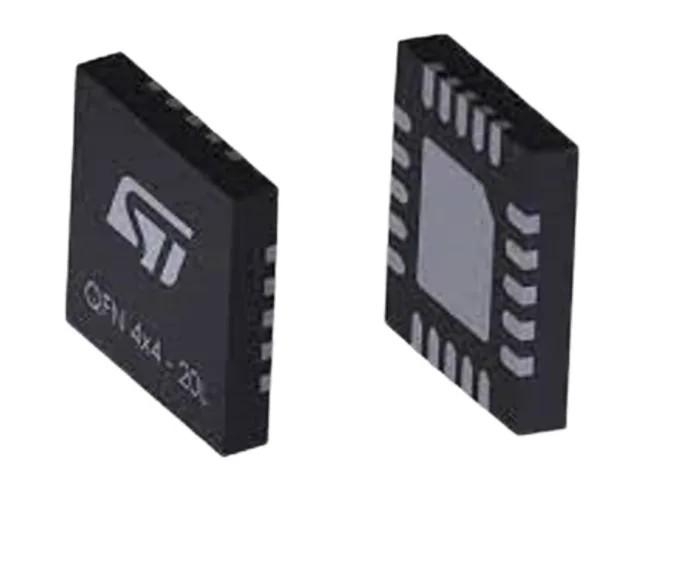

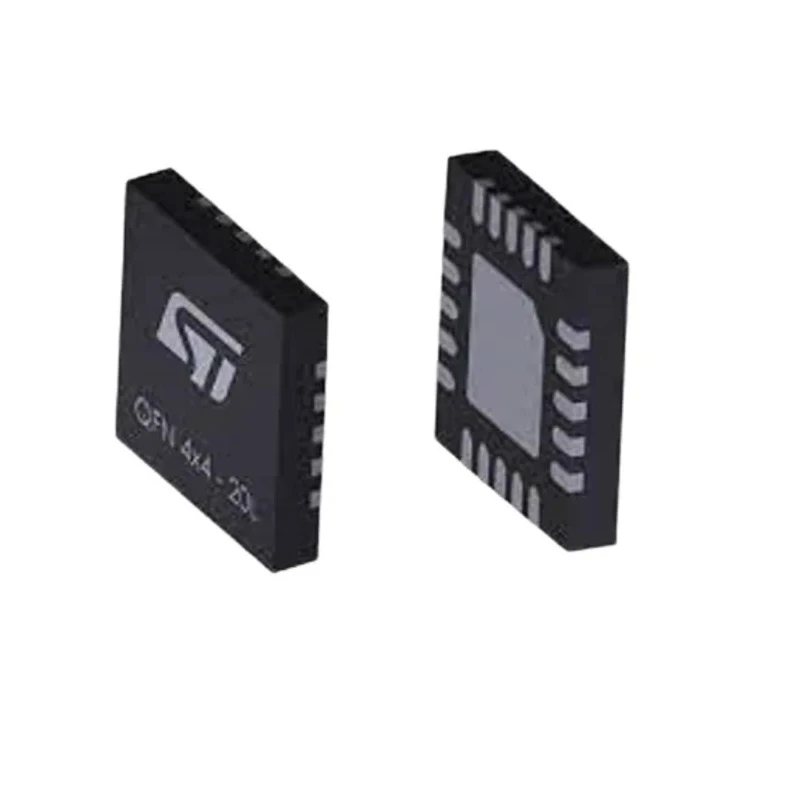

STMicroelectronics USB Controller USB Type C 2.7V - 5.5V, 20-Pin OFN Surface Mount TCPP03-M20
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 800μm |
| Length | 4.05mm |
| Model | TCPP03-M20 |
| Mount Type | Surface |
| Series | TCPP03-M20 |
| Maximum Operating Temperature | 125°C |
| Package Type | OFN |
| Sub Type | USB Interface |
| Minimum Operating Temperature | -40°C |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 2.7mA |
| USB Specification | USB Type C |
| Supported Protocols | USB Type C |
Key Features
- Enables safe USB-C dual role power delivery implementation.
- Provides ESD protection compliant with IEC 61000-4-2 Level 4 standards.
- Integrates VBUS and VCONN discharge and current sensing with analog output.
- Features protection for VCONN OCP and overvoltage on CC lines.
- Utilizes I2C interface with two configurable addresses for communication.
- Operates efficiently from -40 °C to 125 °C junction temperature range.
- Compact 4.05 mm length and 800 μm height dimensions for surface mount assembly.
- Designed for robust USB Type C interface applications in electronic systems.
Product Description
STMicroelectronics TCPP03-M20 is an advanced USB Controller specifically designed for USB Type C interfaces, operating with a supply voltage range from 2.7 V minimum to 5.5 V maximum. Housed in a compact 20-pin OFN surface mount package with a length of 4.05 mm and height of 800 μm, it supports robust dual role power delivery (DRP) functionalities, ensuring compliance with USB-C power delivery specifications.
The device integrates essential protections including ESD on CC1 and CC2 lines compliant with IEC 61000-4-2 Level 4 (±8 kV contact discharge and ±15 kV air discharge), overcurrent protection (OCP) for VCONN limited to 100 mW max, and overvoltage protection (OVP) on CC lines against short-to-VBUS scenarios. It also features integrated discharge mechanisms for VBUS and VCONN along with VBUS current sensing via analog output for precise monitoring.
Thermal protection is included, activating at approximately 150 °C, alongside 'Dead Battery' management to enhance device reliability. Communication is facilitated through an I2C interface, supporting two distinct addresses for flexible system integration. The controller's operating junction temperature ranges from -40 °C to 125 °C, making it suitable for a wide spectrum of industrial and commercial electronic applications.
Ideal for integration into devices requiring USB Type C power negotiation and protection, the TCPP03-M20 enhances safety and efficiency in modern electronic products, including computing peripherals, communication devices, and industrial interface modules.
Enables safe USB-C dual role power delivery implementation. Provides ESD protection compliant with IEC 61000-4-2 Level 4 standards. Integrates VBUS and VCONN discharge and current sensing with analog output. Features protection for VCONN OCP and overvoltage on CC lines.
Utilizes I2C interface with two configurable addresses for communication. Operates efficiently from -40 °C to 125 °C junction temperature range. Compact 4.05 mm length and 800 μm height dimensions for surface mount assembly.
Designed for robust USB Type C interface applications in electronic systems. Explore EnvMart’s comprehensive range of semiconductor USB Interface ICs and enhance your designs with reliable USB controllers like the STMicroelectronics TCPP03-M20.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 2.7 V to 5.5 V.
It has a compact length of 4.05 mm and a height of 800 μm, designed for surface mount assembly.
The operating junction temperature range for this unit is from -40 °C to 125 °C.
This model is housed in a 20-pin OFN surface mount package.
It provides ESD protection compliant with IEC 61000-4-2 Level 4 standards, including ±8 kV contact discharge and ±15 kV air discharge.
This unit supports the USB Type C protocol, enabling robust power delivery functionalities.
The maximum supply current for this model is 2.7 mA.
Yes, it features overcurrent protection (OCP) for VCONN limited to 100 mW maximum.
It utilizes an I2C interface with two configurable addresses for communication.
This model includes thermal protection that activates at approximately 150 °C.
It includes integrated discharge mechanisms for VBUS and VCONN, along with 'Dead Battery' management for enhanced reliability.
The TCPP03-M20 is manufactured in India.
