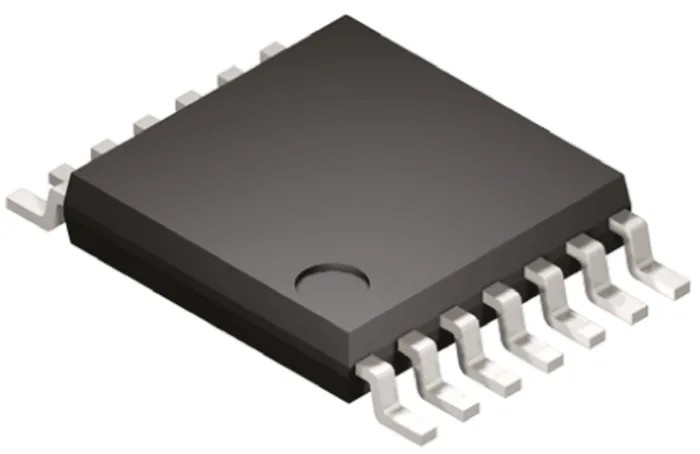

Texas Instruments Schmitt Trigger Input CMOS Inverter 6 Elements 14-Pin TSSOP SN74AC14PWR

Texas Instruments SN74AC14PWR is a high-performance CMOS inverter integrated circuit with Schmitt Trigger inputs, containing 6 independent inverter elements within a 14-pin TSSOP surface mount package. It offers advanced noise immunity and fast switching characteristics, making it ideal for signal conditioning and waveform shaping in electronic circuits.

The device operates over a wide voltage range from 2 to 6 volts, accommodating various low-voltage power systems. The maximum propagation delay at typical load conditions is just 15 nanoseconds, facilitating rapid logic transitions for responsive circuit behavior.

Its surface mount TSSOP package, measuring 5 mm in length, 4.4 mm in width, and 1.15 mm in height, makes it suitable for high-density printed circuit board layouts where space is at a premium. The product performs reliably across industrial temperature ranges from -40°C to 85°C, suitable for demanding operating environments.

The SN74AC14PWR IC complies with logic family AC and is CMOS compatible on both input and output signals. It does not conform to automotive standards and is designed primarily for general industrial, laboratory, and commercial electronics applications, including signal buffering, waveform generation, and noise filtering.

Key electrical ratings include a maximum high-level output current of -24 mA and a low-level output current of 24 mA, ensuring adequate drive strength for downstream logic or analog devices. The device incorporates state-of-the-art advanced CMOS technology from Texas Instruments known for robustness and low power consumption.

Includes 6 inverter elements with Schmitt trigger input for improved signal stability. Operates within a supply voltage range of 2 to 6 volts for versatile applications. Maximum propagation delay time of 15 nanoseconds ensures rapid signal processing.

Surface mount package type TSSOP with 14 pins suitable for compact PCB designs. Wide operating temperature range from -40°C to 85°C for industrial and commercial environments. Maximum high-level output current of -24 mA and low-level output current of 24 mA offer dependable output drive capability.

Logic family AC compatible with CMOS input and output configurations. Compact physical dimensions of 5 mm length, 4.4 mm width, and 1.15 mm height ensure minimal board space usage. Automotive standard non-compliant device designed for general-purpose logic applications.

This Texas Instruments SN74AC14PWR CMOS Inverter is widely utilized in industrial automation, telecommunications equipment, embedded system design, and laboratory instrumentation due to its reliability and performance. It is well-suited for engineers and designers requiring robust and high-speed logic inversion solutions.
